Indoor P2.5 Flexible LED Display Screen For Cylinder Mobius Ring 240x120mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Carton box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 500sqm per week |
|
Detail Information |
|||
| Usage: | Indoor, Outdoor | Application: | Curved, Innovative, Creative Shaped |
|---|---|---|---|
| Warranty: | 2 Year | Color: | RGB |
| Voltage: | 5v | Column Diameter: | Minimum 1meter |
| Highlight: | P2.5 Flexible LED Display Screen,Indoor Flexible LED Display Screen,240x120mm flexible led screen display |
||
Product Description

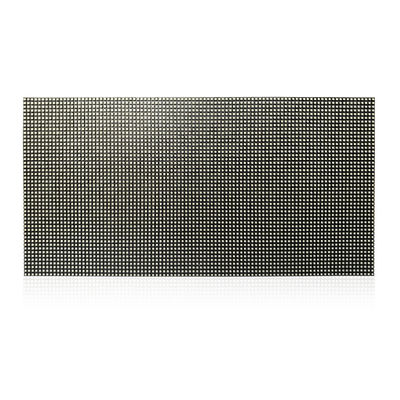

Indoor P2.5 Flexible Module for Cylinder Mobius Ring 240x120mm
The flexible module can fit the metal frame with different camber surfaces due to the soft characteristics of its PCB, thus realizing the LED display effect of curved surfaces. Different pictures and video content can be played, which makes the soft module very well applied in creative design and urban beautification.
Product Quick Details:
1,Bendable module
2,Thin and light
3,Magnetic front service
4,Multi-shapes available
5,Seamless installation
FEATURES
The flexible module is a product based on the conventional hard module after technical breakthrough. The purpose is to solve the use of non-flat wall or structure application scenarios in the led display market. After several years of technical precipitation, Visual World's flexible module products have become very mature, and there are corresponding solutions for both indoor and outdoor.
1. BENDABLE MODULE

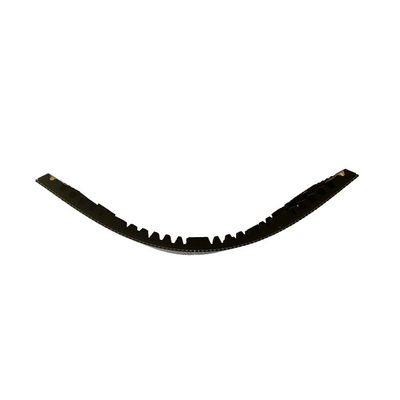

Flexible modules can do front and reverse bending to achieve inner and outer curved application. Minimum diameter 1m for building led cylinder.
2. THIN AND LIGHT
With module protective silicon shell, the module is only 8.6mm and weighs 0.17kg.
3. MAGNETIC FRONT SERVICE
Completely front service with magnets on the modules. Safety rope can be added to the module for hanging or high installation position.
4. MULTI-SHAPES AVAILABLE
Flexible modules work for round, convex, concave, S shapes and other irregular shapes.
5. SEAMLESS INSTALLATION
Precise module size and easy magnetic installation allows it to present seamless visual content.
TECHNICAL SPECIFICATIONS
| Product Model: | FL |
| Pixel Pitch: | 2.5 mm |
| LED Type: | SMD2121 |
| Module Dimension: | 240x120x8.6 mm |
| Module Resolution: | 96*48 |
| Module Weight: | 0.17 kg |
| Module Shell Material: | Silicon |
| Driving Type: | 1/24 |
| Brightness: | 600-800 nits |
| Max/Avg Power: | 520/182 W/m2 |
| Maintenance: | Front service |
| Environment: | Indoor Use |
| IP Rating: | IP45 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
APPLICATION FIELD
Creative design
Science Museum
Heteromorphic building
Advertising signs
Interior decoration
CASE
FAQ
Q1. Does it work for mobius ring?
Yes, we can. We have done several cases of mobius ring with different pixel pitches.
Q2. Can it use in an indoor environment but with high humidity?
Yes, it can. We will do nano coating and painting treatment to module surface and backside to protect the led from humidity.
Q3. What is the smallest cylinder you can do?
This flexible module can make small cylinders with 0.64m diameter.
Q4. What control system do you use?
We use our own developed system and cards for soft modules projects.
Q5. What is smallest pixel pitch you can do the soft module?
We can do P1.25 fine pitch soft module to make innovative projects with high resolution features.
