詳細情報 |
|||
| 製品名: | P3.9屋外固定LEDディスプレイアルミニウムプロファイル広告看板用のIP65 | ピクセルピッチ: | 3.91mm |
|---|---|---|---|
| キャビネットの重量: | 19.5kg/キャビネット | モジュールサイズ: | 500*250*14mm |
| キャビネットサイズ: | 500*1000*87mm | 輝度: | 7500cd/m² |
| IP評価: | IP65 | メンテナンス: | 前側/後ろ |
| ハイライト: | P3.9 outdoor LED display,aluminum profile LED screen,IP65 waterproof LED billboard |
||
製品の説明

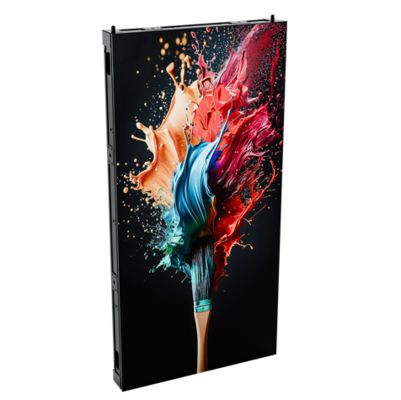

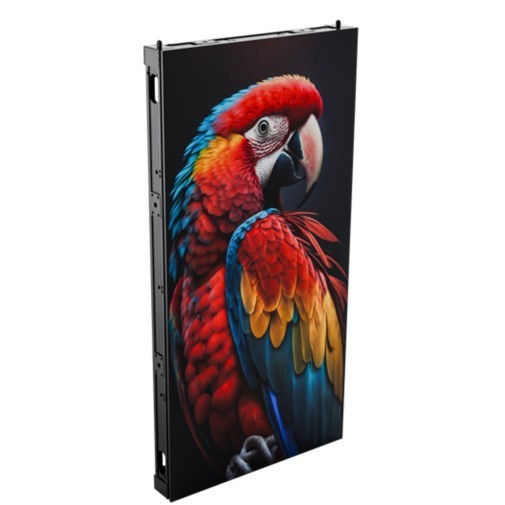

P3.9 Outdoor Fixed LED Display Aluminum profile IP65 For Advertising Billboard
Product Description:
High-precision aluminum profile cabinet is only 87mm thick/19.5kg (500×1000mm),500×1000mm and 500×750mm cabinets are free to mix and match shaped shapes, sharing the same type of control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing. Fanless ≤ 40dB silent operation, point-by-point calibration to ensure pixel-level uniformity. 3840Hz high refresh to eliminate 1/3000s shutter residual shadow, for stage performances, conferences, to provide a broadcaster-level visual base.
Features:
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.

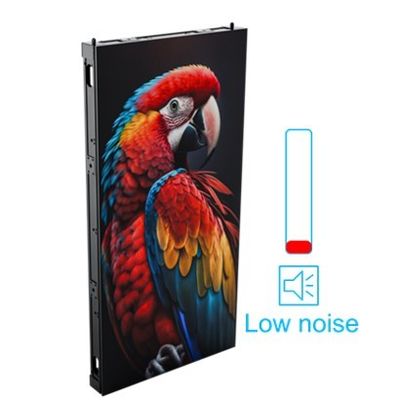

- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.

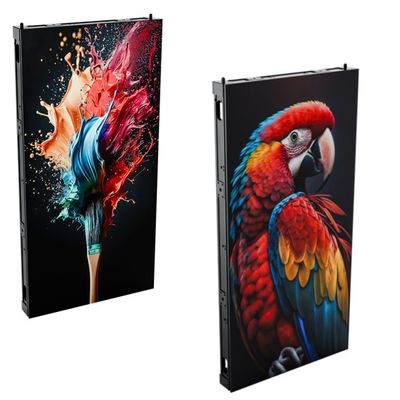

- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Parameters:
| Item | Specification Parameter |
Specification Parameter |
Specification Parameter |
Specification Parameter |
| PixelPitch | 3.91mm | 4.81mm | 6.94mm | 10.41mm |
| Resolution rate | 128*64mm | 104*52mm | 72*36mm | 48*24mm |
| Module Size | 500*250*14mm | 500*250*14mm | 500*250*14mm | 500*250*14mm |
| Pixel color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel LED | SMD1921 Black led | SMD1921 Black led | SMD2727 Black led | SMD2727 Black led |
| Working voltage | DC4.6V | DC4.6V | DC4.6V | DC4.6V |
| Module Power | ≤74W | ≤60W | ≤60W | ≤60W |
| Driving IC | ICN2055 | ICN2055 | ICN2055 | ICN2055 |
| Drivingway | 1/8 | 1/13 | 1/6 | 1/2 |
| HUB | HUB(AXS-500X1000-PRO)-V1.0 | HUB(AXS-500X1000-PRO)-V1.0 | HUB(AXS-500X1000-PRO)-V1.0 | HUB(AXS-500X1000-PRO)-V1.0 |
| Material | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile |
| Cabinet Weight (kg/Cabinet) |
19.5kg | 19.5kg | 19.5kg | 19.5kg |
| Resolution rate | 128*256Dots | 128*208Dots | 72*144Dots | 48*96Dots |
| Cabinet Size | 500*1000*87mm | 500*1000*87mm | 500*1000*87mm | 500*1000*87mm |
| Module quantity | 1*4 | 1*4 | 1*4 | 1*4 |
| Density | 65536 Dots/㎡ | 43264 Dots/㎡ | 20736 Dots/㎡ | 9216 Dots/㎡ |
| Brightness | 7500CD/m² | 7500CD/m² | 7500CD/m² | 7500CD/m² |
| Color temperature | 6000K-8000K | 6000K-8000K | 6000K-8000K | 6000K-8000K |
| View Angel | H/V:120°/120° | H/V:120°/120° | H/V:120°/120° | H/V:120°/120° |
| Non-Flatness | ＜0.2mm | ＜0.2mm | ＜0.2mm | ＜0.2mm |
| Module Interval | ＜0.2mm | ＜0.2mm | ＜0.2mm | ＜0.2mm |
| Maximal power/㎡ | ≤650W/㎡ | ≤520W/㎡ | ≤520W/㎡ | ≤520W/㎡ |
| Average Power/㎡ | ≤220W/㎡ | ≤160W/㎡ | ≤160W/㎡ | ≤160W/㎡ |
| Frame frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Refresh Frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Grade | ≥13bit | ≥13bit | ≥13bit | ≥13bit |
| Working temperature | -20~50℃ | -20~50℃ | -20~50℃ | -20~50℃ |
| Protection grade | IP65 | IP65 | IP65 | IP65 |
| Maintainace | Front/Back | Front/Back | Front/Back | Front/Back |
| *Reference information, different configurations, different parameters | ||||
Application:
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen. Mixed samples are acceptable.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: Is it OK to print my logo on the products?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: Low MOQ, 1 square meter or a module checking is available. And the price is negotiable for large quantities.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
