P1.8 LED Dance Floor Display SMD1212 500*500mm Cabinet With IP54(front) & IP31(Rear)
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE,EMC,FCC,ROHS |
| Model Number: | FD1.8(COD) |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Wooden box, Flight case |
| Delivery Time: | 20-25 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P1.8 LED Dance Floor Display SMD1212 500*500mm Cabinet With IP54(front) & IP31(Rear) | LED Type: | SMD1212 |
|---|---|---|---|
| Cabinet Size: | 500*500mm | Module Size: | 250x250mm |
| Brightness: | 700-1000nits | Waterproof: | Front: IP54, Rear: IP31 |
| Load Bearing: | 1.5~2.5t/m² | Cabinet Weigh: | 14.5kg |
| Highlight: | P1.8 LED dance floor display,500x500mm LED dance floor cabinet,IP54 front LED dance floor |
||
Product Description
| Attribute | Value |
|---|---|
| Product name | P1.8 LED Dance Floor Display SMD1212 500*500mm Cabinet With IP54(front) & IP31(Rear) |
| LED type | SMD1212 |
| Cabinet size | 500*500mm |
| Module Size | 250x250mm |
| Brightness | 700-1000nits |
| Waterproof | Front: IP54, Rear: IP31 |
| Load Bearing | 1.5~2.5t/m² |
| Cabinet Weight | 14.5kg |
This P1.8 LED Dance Floor Display delivers both durability and immersive entertainment, making it the ultimate choice for large-scale events. Engineered to withstand heavy use with a 1.5~2.5 ton/m² load capacity, it ensures reliable performance even under demanding conditions. The innovative rail-and-track system enables quick installation, significantly reducing setup time while maintaining structural integrity. Featuring brilliant visuals with HD resolution, vibrant colors, and deep contrast, it offers captivating interactive experiences that transform corporate events, stage performances, and artistic productions into unforgettable spectacles.
- Interactive Touch Surface: Advanced sensors make the LED panel interactive, enhancing engagement beyond standard displays.
- All-Weather Protection/Security: IP65 is rated for water resistance and slip-proof, making it suitable for both indoor and outdoor use.
- Robust Load-bearing: Capable of supporting up to 2.5 tons/m², durable for pedestrian and light vehicle traffic.
- Efficient Cooling: An aluminum housing with a built-in cooling system maintains optimal performance and longevity.

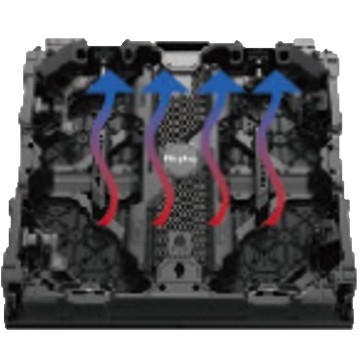

- Advanced Thermal Management: The built-in heat dissipation system, featuring an aluminum casing, efficiently manages heat, ensuring the floor operates at peak efficiency and retains its durability.
- Flexible installation choices: Select between a quick-release rail mounting system for speed or adjustable feet for a more standard installation process, offering flexibility to fit various settings.
| Product Model | FD1.5(COD) | FD1.8(COD) | FD1.9(COD) | FD2.5(COD) | FD2.6(COD) |
|---|---|---|---|---|---|
| Pixel Pitch | 1.56mm | 1.86mm | 1.95mm | 2.5mm | 2.604mm |
| LED Type | SMD1010 | SMD1212 | SMD1515 | ||
| Mask | COD | ||||
| Cabinet Dimension(mm) | 500*500 | ||||
| Module Size(mm) | 250*250 | ||||
| Cabinet Weight | 14.5kg | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Load Bearing(t/m²) | 1.5-2.5T | ||||
| Brightness | 700-1000nits | ||||
| Max/Avg Power(m²) | 800/280w | ||||
| IP Rating | Front: IP54 Rear: IP31 | ||||
| Refresh Rate | >3840Hz | ||||
| Installation Type | Rail / Adjustable foot | ||||
- Advertising and Marketing: Create powerful advertising campaigns with attention-grabbing floor displays in high-traffic locations.
- Exhibitions and Heritage Centers: Enrich exhibits with interactive floor displays that offer captivating and educational experiences.
- Entertainment and Nightlife: Create mesmerizing visual experiences in clubs, theaters, and other entertainment venues.
- Public Spaces: Engage pedestrians with interactive and informative displays in airports, train stations, and shopping malls.
- Theme Parks: Immerse visitors in fantastical worlds with interactive floor displays that complement rides and attractions, creating unforgettable experiences.
- Inquiries answered within 24 hours.
- Market research and forecasts.
- Customized solutions based on customer needs.
- Data sheets and samples provided.
- Additional services like custom packing and factory visits.
- Continuous monitoring of production.
- Photos and videos of production upon request.
- Free spare parts.
- Complaints addressed within 24 hours.
- Maintenance guidance and solutions within 48 hours.
- 24-month warranty.
- Free technician training.
- Free documents: installation guide, software manual, maintenance guide, and control system software CD.
A1: Yes, we accept sample orders for quality verification and market testing. Mixed samples are acceptable.
A2: A two-year warranty for all the Dance Floor LED Display products.
A3: Yes, our floor is designed to support a load of 2.5 tons per square meter and has been used by customers for car shows.
A4: The lamp beads used in our LED display are all genuine. We do not need to use scattered lights and tail lights. Using silver-containing solder paste, pure copper cords, and short cables, a good screen is our commitment to every customer.
A5: Any quantity is acceptable for your order. And the price is negotiable for large quantities.
