P2.604 Smart Dance Floor LED Display With 3840Hz Refresh Rate

P2.604 Smart Dance Floor LED Display With 3840Hz Refresh Rate
Brand Name
Visual World
Product Model
F-DANCER PLUS
Certificate
CE, EMC, LVD, ROHS, FCC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
500sqm/month
Product Details
Highlight:

Smart Dance Floor LED Display

,

P2.604 Dance Floor LED Display

,

3840Hz LED Floor Display

Refresh Rate: 3840Hz
Brightness: 3000cd/m2
Input Voltage: AC110V-240V
Gray Scale: 14bit
Lifespan: 100,000 Hours
Type: LED Display
Pixel Pitch: 1.56mm, 1.95mm, 2.97mm
Interactive Function: YES/NO
Material: Die-casting Aluminum
Protection: COD Technology / Mask
Installation: Ground Beam / Adjustable Feet
Product Description
Detailed Specifications And Features

P2.604 Smart Dance Floor LED Display With 3840Hz Refresh Rate


Product Description:

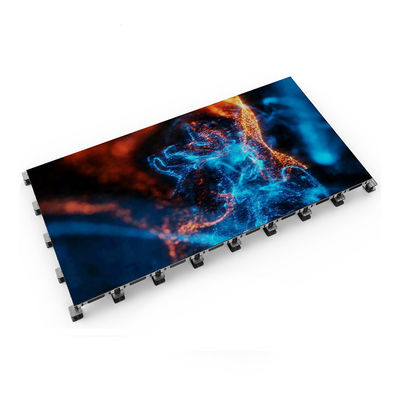

The P2.6 LED Dance Floor Display combines rugged durability with immersive entertainment, making it ideal for large-scale events. With a load capacity of 1.5-2.5 tons/m², it ensures reliable performance under extreme conditions. The innovative rail-and-track system enables quick installation while maintaining structural integrity. Featuring HD visuals, vibrant colors, and exceptional contrast, it delivers captivating experiences for corporate events, stage productions, and artistic installations.

P2.604 Smart Dance Floor LED Display With 3840Hz Refresh Rate

Features:

  • Interactive Touch Surface

Advanced sensors make the LED panel interactive, enhancing engagement beyond standard displays.

  • All-Weather Protection/Security

IP65 is rated for water resistance and slip-proof, making it suitable for both indoor and outdoor use.

  • Robust Load-bearing

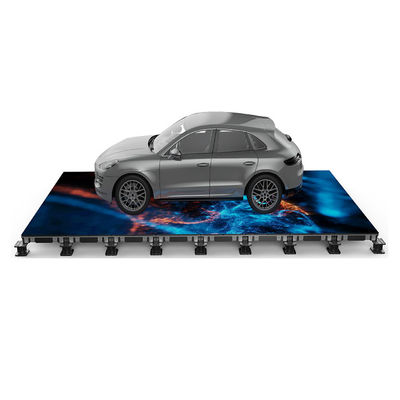

Capable of supporting up to 2.5 tons/m², durable for pedestrian and light vehicle traffic.

  • Efficient Cooling

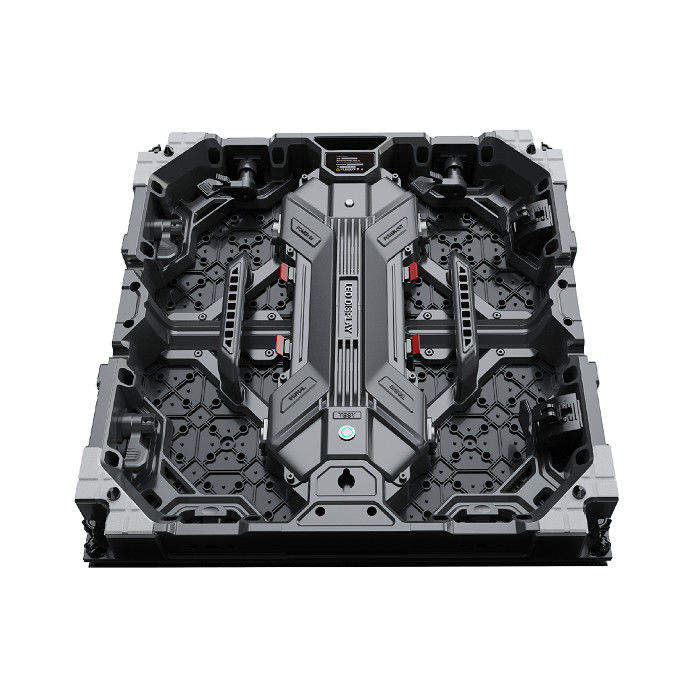

An aluminum housing with a built-in cooling system maintains optimal performance and longevity.

  • Advanced Thermal Management

The built-in heat dissipation system, featuring an aluminum casing, efficiently manages heat, ensuring the floor operates at peak efficiency and retains its durability.

  • Flexible installation choices

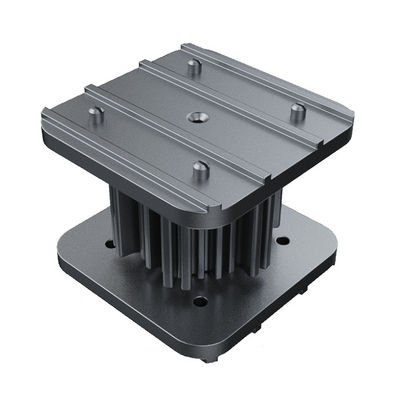

Select between a quick-release rail mounting system for speed or adjustable feet for a more standard installation process, offering flexibility to fit various settings.


Technical Parameters

Product Model FD1.5(COD) FD1.8(COD) FD1.9(COD) FD2.5(COD) FD2.6(COD)
Pixel Pitch 1.56mm 1.86mm 1.95mm 2.5mm 2.604mm
LED Type SMD1010 SMD1212 SMD1515
Mask COD
Cabinet Dimension(mm) 500*500
Module Size(mm) 250*250
Cabinet Weight 14.5kg
Cabinet Material Die-casting Aluminum
Load Bearing(t/m²) 1.5-2.5T
Brightness 700-1000nits
Max/Avg Power(m²) 800/280w
IP Rating Front: IP54 Rear: IP31
Refresh Rate >3840Hz
Installation Type Rail / Adjustable foot


Applications:

  • Advertising and Marketing:  Create powerful advertising campaigns with attention-grabbing floor displays in high-traffic locations.
  • Exhibitions and Heritage Centers:  Enrich exhibits with interactive floor displays that offer captivating and educational experiences.
  • Entertainment and Nightlife: Create mesmerizing visual experiences in clubs, theaters, and other entertainment venues.
  • Public Spaces: Engage pedestrians with interactive and informative displays in airports, train stations, and shopping malls.
  • Theme Parks: Immerse visitors in fantastical worlds with interactive floor displays that complement rides and attractions, creating unforgettable experiences.​


P2.604 Smart Dance Floor LED Display With 3840Hz Refresh Rate

P2.604 Smart Dance Floor LED Display With 3840Hz Refresh Rate



Support and service:

Pre-sale service:

  • Inquiries answered within 24 hours.
  • Market research and forecasts.
  • Customized solutions based on customer needs.
  • Data sheets and samples provided.
  • Additional services like custom packing and factory visits.

In-sale service:

  • Continuous monitoring of production.
  • Photos and videos of production upon request.
  • Free spare parts.

After-sale service:

  • Complaints addressed within 24 hours.
  • Maintenance guidance and solutions within 48 hours.
  • 24-month warranty.
  • Free technician training.
  • Free documents: installation guide, software manual, maintenance guide, and control system software CD.


FAQ:

  • Q: What is the Brand Name of Dance Floor LED Display?
    A: The Brand Name of Dance Floor LED Display is Visual World.
  • Q: What is the Model Number of Dance Floor LED Display?
    A: The Model Number of Dance Floor LED Display is F-DANCER PLUS.
  • Q: Where is Dance Floor LED Display made?
    A: Dance Floor LED Display is made in China.
  • Q: What kind of materials are used for the Dance Floor LED Display?
    A: The Dance Floor LED Display is made of high-quality LED lights and durable metal frame.
  • Q: How many colors are available for Dance Floor LED Display?
    A: The Dance Floor LED Display is available in 16 million colors.
