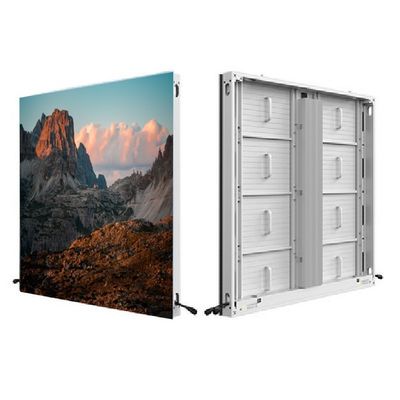

P7.8 Outdoor Fixed LED Display Aluminum Profile 9000nits Outdoor Activity Area
P7.8 outdoor LED display
,9000nits fixed LED screen
,aluminum profile outdoor display
P7.8 Outdoor Fixed LED Display Aluminum Profile 9000nits Outdoor Activity Area
Product Description:

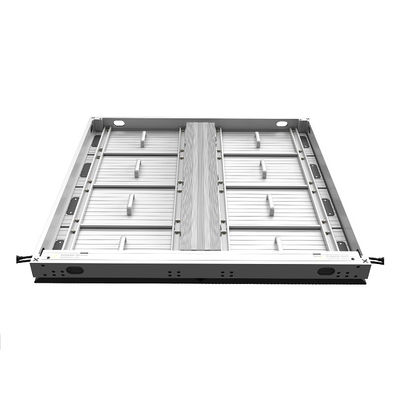

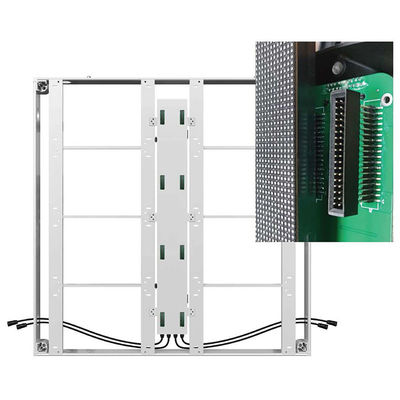

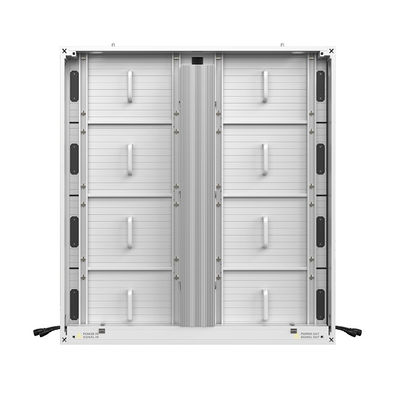

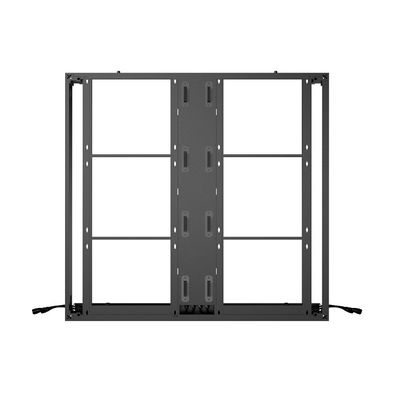

The P7.8 Outdoor Fixed LED Display integrates reliability and high performance through its robust installation design. Its hub connection minimizes failure rates, while the 500 x 250mm aluminum backplate resists deformation and enhances thermal management. Supporting both front and rear maintenance, it features an IP65 waterproof rating and a 2+1 power connector to prevent overheating damage. Optional smart modules with common cathode or anode configurations provide additional adaptability for diverse application needs.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with ip65 protection level for outdoor using.

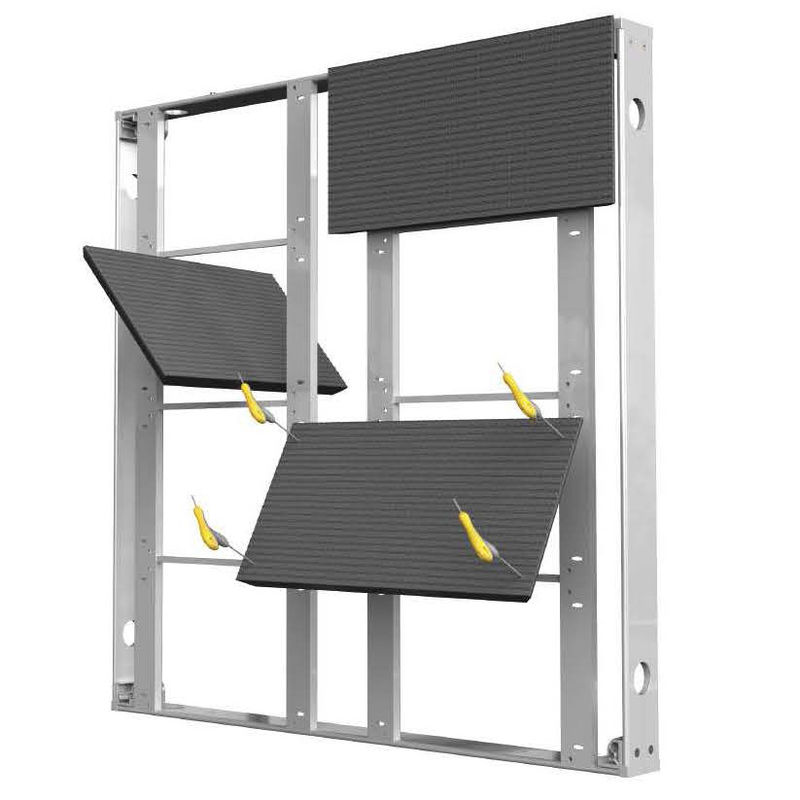

- Front & Rear service:Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- Better Heat Dissipation:After one hour of white balance illumination, the aluminum base demonstrates superior heat dissipation, registering a temperature 10 degrees lower than a plastic base.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- 2+1 Power:The 2+1 power connector design features a built-in anti-reverse insertion mechanism to avoid damage from incorrect connections, precisely meets current load requirements for stable power delivery, and ensures safe, reliable module operation even under fluctuating electrical conditions.
Technical Parameters:
| Item | P7.8 |
| Pixel Pitch | 7.8125mm |
| Module Size | 500*250mm |
| Cabinet Dimension | 1000*1000*90mm/1000*500*90mm/1000*750*90mm/1500*1000*90mm/1500*500*90mm |
| LED Type | SMD2727 |
| Scan Mode | 1/4 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 30kg/cabinet |
| Brightness | 6000/9000nits |
| Power Consumption | 600/210w/m2 |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity: | 10%~90%RH |
Application:
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1:How can I get an accurate quote for an advertising signage LED video wall display screen?
A1:a. Please let us know which screen you need,indoor or outdoor ; pixel,screen size ,etc
b.Please tell us the usage scenarios (concerts, churches, exhibition halls, conference rooms, shopping mall billboards)
c. It would be better to have CAD drawings, artworks
Q2:How long does it take for me to get the price of indoor and outdoor LED display screen?
A2:We usually quote immediately after receiving your inquiry;
If you need a price urgently, please send a TM message, email ,whatsapp or contact us by other ways.
Q3:What is your delivery time?Indoor and outdoor fixed video wall, indoor and outdoor rental LED panel
A3:Depending on the orders' situation, LED modules in stock will be shipped next day;
Usually small quantities of customized products are shipped within 15 days, and large quantities are 15-20woring days.
Q4:How many years is your LED screen warranty? (creative flexible LED screen, transparent display)
A4:Depending on LED Screens' Configuration, 2-5 year warranty is for different order.
Q5:How is your digital HD LED advertising screen packaged?
A5:Packing in carton, wooden case or flight case.
-
