P7.8 Outdoor Fixed LED Display Aluminum Profile 1000x1000mm 2+1 Power 9000nits
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P7.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P7.8 Outdoor Fixed LED Display Aluminum Profile 1000x1000mm 2+1 Power 9000nits | Pixel Pitch: | 7.8125mm |
|---|---|---|---|
| Cabinet Weight: | 30kg/Cabinet | Module Size: | 500*250mm |
| Cabinet Dimension: | 1000*1000mm/1000*500mm/1000*750mm/1500*1000mm/1500*500mm | IP Rating: | IP65 |
| Brightness: | 6000/9000nits | Cabinet Material: | Aluminum Profile |
| Highlight: | P7.8 outdoor LED display screen,1000x1000mm fixed LED display,9000nits high brightness LED screen |
||
Product Description

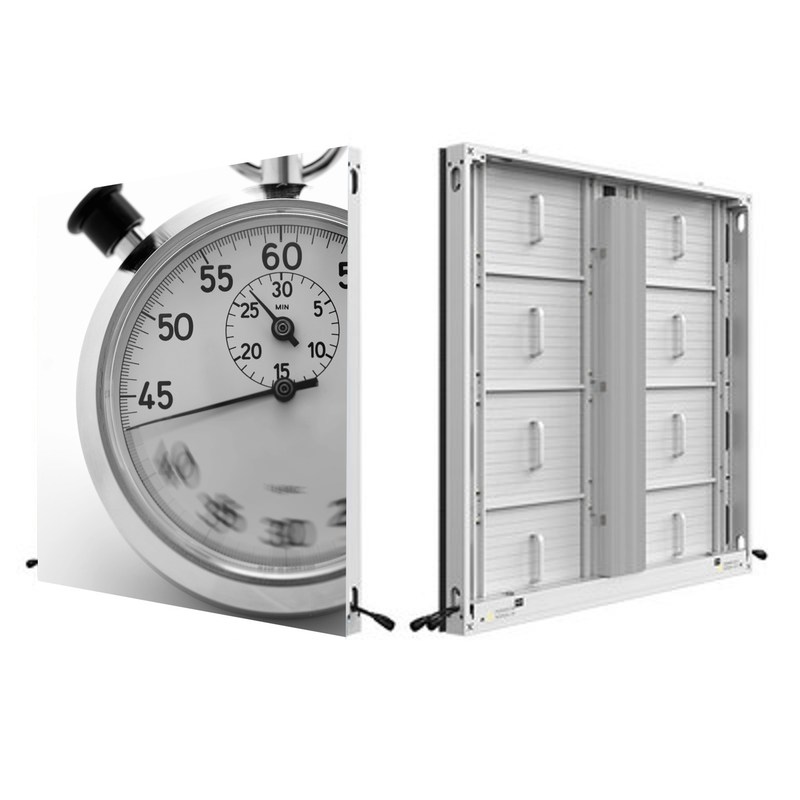

P7.8 Outdoor Fixed LED Display Aluminum Profile 1000x1000mm 2+1 Power 9000nits

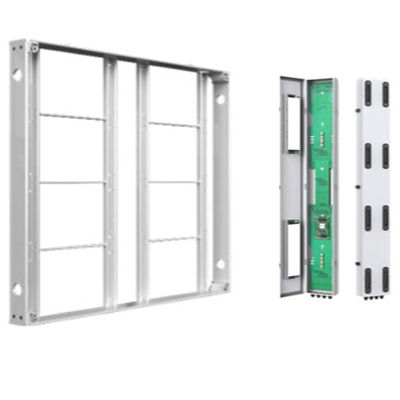

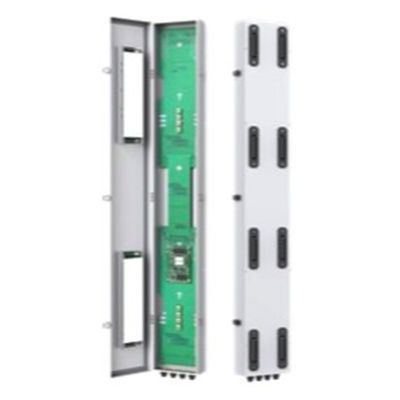

The P7.8 Outdoor Fixed LED Display integrates reliability and high performance through its robust installation design. Its hub connection minimizes failure rates, while the 500 x 250mm aluminum backplate resists deformation and enhances thermal management. Supporting both front and rear maintenance, it features an IP65 waterproof rating and a 2+1 power connector to prevent overheating damage. Optional smart modules with common cathode or anode configurations provide additional adaptability for diverse application needs.
Key Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.

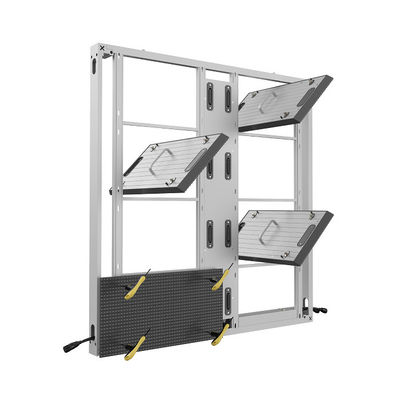

- Front & Rear Service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- Better Heat Dissipation: After one hour of white balance illumination, the aluminum base demonstrates superior heat dissipation, registering a temperature 10 degrees lower than a plastic base.
- Wide Viewing Angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- 2+1 Power: The 2+1 power connector design features a built-in anti-reverse insertion mechanism to avoid damage from incorrect connections, precisely meets current load requirements for stable power delivery, and ensures safe, reliable module operation even under fluctuating electrical conditions.
Technical Parameters
| Item | P7.8 |
|---|---|
| Pixel Pitch | 7.8125mm |
| Module Size | 500*250mm |
| Cabinet Dimension | 1000*1000*90mm/1000*500*90mm/1000*750*90mm/1500*1000*90mm/1500*500*90mm |
| LED Type | SMD2727 |
| Scan Mode | 1/4 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 30kg/cabinet |
| Brightness | 6000/9000nits |
| Power Consumption | 600/210w/m² |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity | 10%~90%RH |
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: How can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please email us or contact us via WhatsApp, WeChat, so that we can offer you a quote on time. Please inform your requirements as clear as possible for get the price faster. Indoor use or outdoor use? The size in Length and height? What purpose use?
Q2: Can I buy samples placing orders?
Yes. Please feel free to contact us.
Q3: What is your lead time?
7-25 days, It depends on the order quantity and the season you place the order.
Q4: What is your payment term?
T/T, Western Union, Cash. This is negotiable.
Q5: What is the shipping method?
It could be shipped by sea/air/express. Please confirm with us before placing orders.
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Want to Know more details about this product
