P2.85 Display Module Full Front Access Die-casting Aluminum Power Box Integration
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, EMC, LVD, ROHS, FCC |
| Model Number: | P2.85 |
| Document: | SMART BLOCK series（waterm....pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | plywood case, carton box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P2.85 Display Module Full Front Access Die-casting Aluminum Power Box Integration | Pixel Pitch: | 2.85mm |
|---|---|---|---|
| LED Type: | SMD1415 | Maintenance: | Full Front Access |
| Brightness: | 5000 Nits | Refresh Rate: | 3840Hz |
| Module Material: | Die-casting Aluminum | Control System: | NovaStar |
| Highlight: | P2.85 outdoor LED display module,full front access LED module,die-casting aluminum power box display |
||
Product Description
P2.85 Display Module Full Front Access Die-casting Aluminum Power Box Integration
Product Description:
P2.85 Outdoor LED Display Module is designed to deliver exceptional visual performance in a variety of outdoor settings. With a pixel pitch of 2.85mm, this module ensures that images are displayed with high clarity and detail, capturing the attention of viewers from a distance.

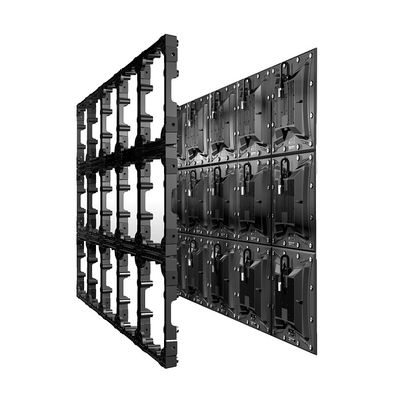

This model is crafted with a die-casting aluminum cabinet, which is not only lightweight but also provides a high level of durability. The cabinet's design facilitates easy installation and integration into various structures, such as building facades or freestanding frames.
Features:
- Die-casting aluminum:Light and durable die-casting aluminum panel makes accurate assembling of corresponding hole position

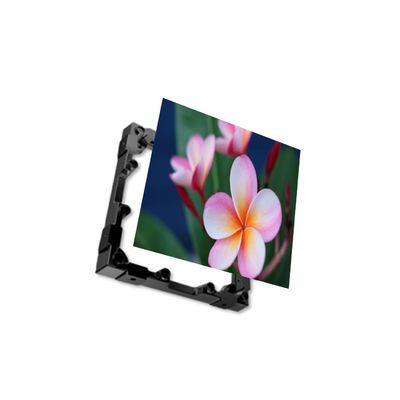

- Front access:Magnetic led modules strongly connect to the module frame. Safety rope is optional to tighten the connection.
- Power box integration:The power supply, receiving card and hub board are simplied into a small power box. The module can work individually.
- Curved video wall:The 45° edges modules are compatible with simple customized metal cabinet by magnets, which allows the module to build curved led walls.
- 2-in-1 transmiting cable:Customized 2 in 1 cable allows the led screen to transmit the current and signal simultaneously.
Technical Parameters:
| Technical Parameters | Outdoor LED Display Module |
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1415 |
| Pixel Density: | 122500 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 112*112 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:160° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
Apllication:
This product can be used for advertising, informational displays, and even as a background for events and performances. With its high brightness and resolution, it can easily attract the attention of passersby and deliver your message effectively.
FAQ:
Q1: Are you a manufacturer or trading company?
- We are a professional OEM/ODM manufacturer ,which has specialized in the LED display industry for more than 10 years.
- We has cooperated with more than 30 brands and has projects in more than 90 countries.
Q2: How to install?
- Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use;
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Q3: What about your quality?
- The lamp beads used in our LED display are all genuine lamp beads. We are do not need to be used scattered lights and tail lights.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q4: What about the warranty?
- Calculated from the goods to the customer, the warranty period is 5 years, don’t worry, there is a problem with the module, you can send it back to us for repair.
Q5: What about the lead time?
- Orders less than 50 square meter display, lead time is 15 working days.
Q6: Can I order a sample?
-Yes, We welcome customers to order samples to check our product quality of our products and service.
Q7: What is your MOQ?
- Any quantity is acceptable for your order. And the price is negotiable for large quantities.
