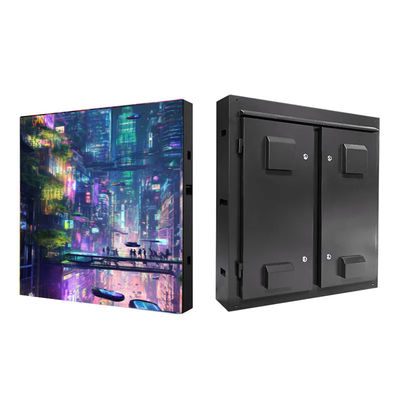

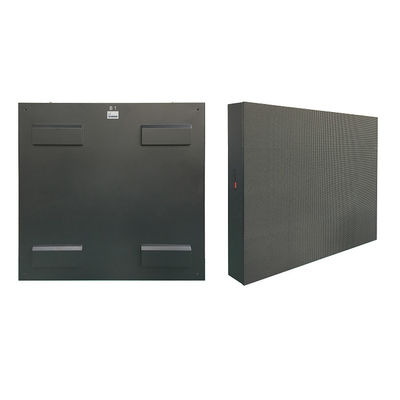

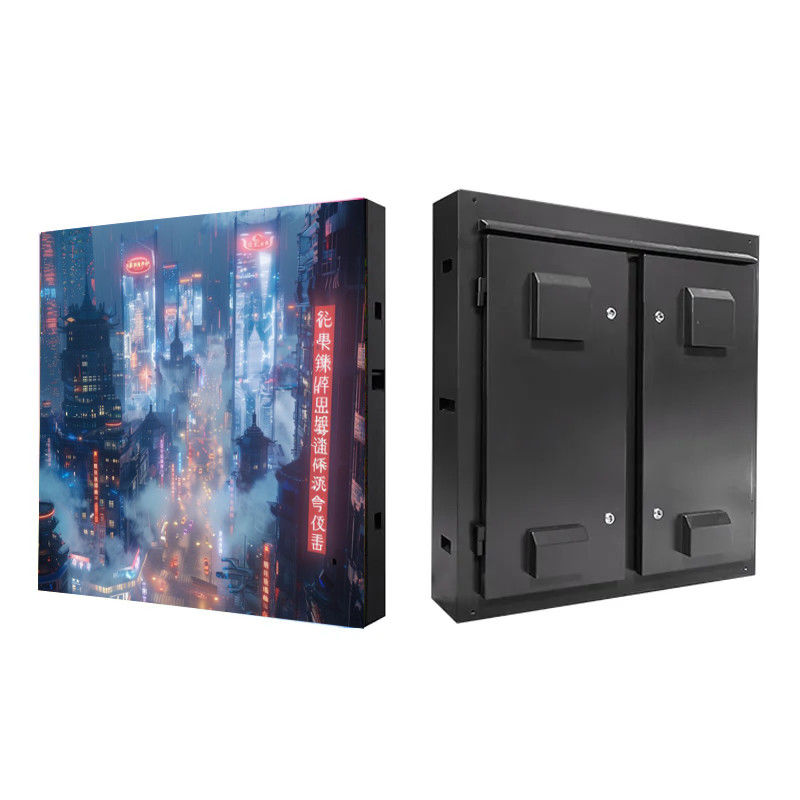

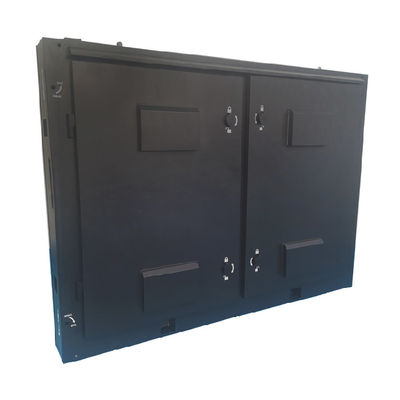

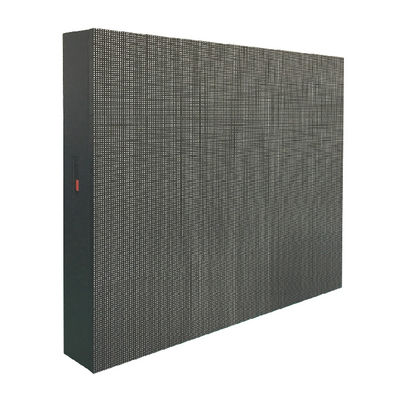

P6.67 Outdoor Fixed LED Screen Rear Service Quick Installation IP65 5000nits
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed LED Screen Rear Service Quick Installation IP65 5000nits | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
| Highlight: | P6.67 outdoor LED screen,IP65 waterproof LED display,5000nits high brightness LED screen |
||
Product Description
P6.67 Outdoor Fixed LED Screen Rear Service Quick Installation IP65 5000nits
Product Description
Fixed LED display screen refers to the LED display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation LED displays.
Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
- High brightness: Customized module PCB and designated power supply make it up to 6000nits brightness.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
| Product Model: | P6.67 |
|---|---|
| Pixel Pitch: | 6.67mm |
| LED Type: | SMD3535 |
| Cabinet Dimension: | 960x960mm |
| Module Size: | 320×160mm |
| Maintenance: | Rear service |
| Cabinet Weight: | 38 kg |
| Cabinet Material: | Steel |
| Driving Type: | 1/6 |
| Brightness: | 5500 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Environment: | Outdoor |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting /Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | Outdoor |
| Operational Humidity: | 10%~90% RH |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: How can I get technical support?
A1: We treasure every customer that shake hands with our Visual World. We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide.
Q2: What about your service?
A2: We can offer a complete LED design solution for your LED project before confirming the order. We can instruct you how to use, configure your LED display, and do some maintenance with spare parts. Also, we can send professional engineer to your city to offer on-site guide and offer training. Mostly, our LED display do not have big problems within warranty time.
Q3: How to operate and use it?
A3: It can by controlled by PC and Smartphone very easily. Welcome to inquiry for more information. We provide video guidance and remote assistance.
Q4: Are you a manufacturer or a trading company? Do you have your own factory and R &D team?
A4: We are a leading LED display manufacturer with over 10 years of experience, boasting a modern production facility and a professional R&D team. This ensures direct control over product quality, cost, and production cycle, enabling us to provide our customers with the most competitive prices and reliable OEM/ODM services.
Q5: What is the minimum order quantity (MOQ)? Do you support sample orders?
A5: We understand the need for new customers to test products. We support sample orders, with an MOQ typically of one standard carton or one minimum order unit. For bulk orders, we offer more competitive pricing. Specific MOQs are negotiable based on product model.
