P2.85 Display Module Full Front Access 320x320mm For Informational Displays
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, EMC, LVD, ROHS, FCC |
| Model Number: | P2.85 |
| Document: | SMART BLOCK series（waterm....pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | plywood case, carton box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P2.85 Display Module Full Front Access 320x320mm For Informational Displays | Pixel Pitch: | 2.85mm |
|---|---|---|---|
| LED Type: | SMD1415 | Maintenance: | Full Front Access |
| Brightness: | 5000 Nits | Refresh Rate: | 3840Hz |
| Module Material: | Die-casting Aluminum | Control System: | NovaStar |
| Highlight: | P2.85 outdoor LED display module,full front access LED module,320x320mm informational display module |
||
Product Description

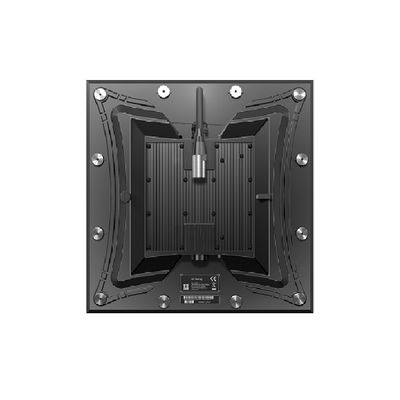

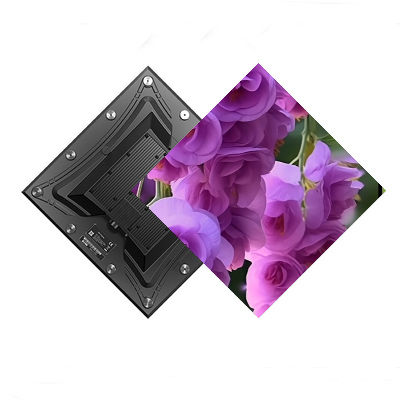

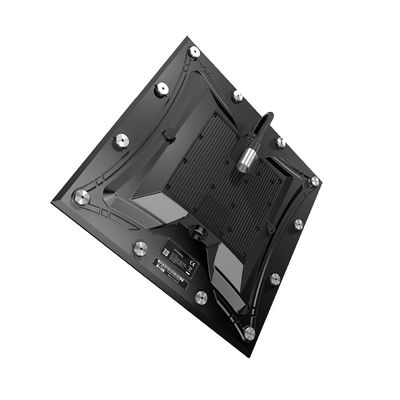

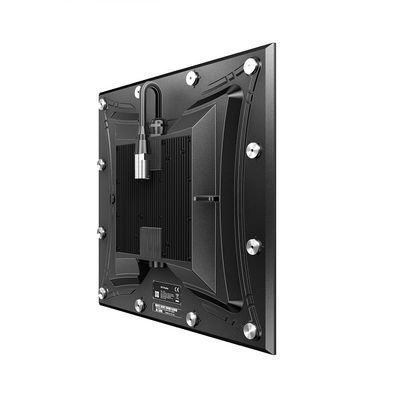

P2.85 Display Module Full Front Access 320x320mm For Informational Displays
Product Description
The P2.85 Outdoor LED Display Module delivers exceptional visual performance for outdoor applications. With a 2.85mm pixel pitch, this module provides high clarity and detail, ensuring excellent visibility from a distance. The die-casting aluminum cabinet offers durability while remaining lightweight, facilitating easy installation on building facades or freestanding frames.
Key Features
- Die-casting aluminum: Lightweight yet durable construction ensures precise assembly with corresponding hole positions.

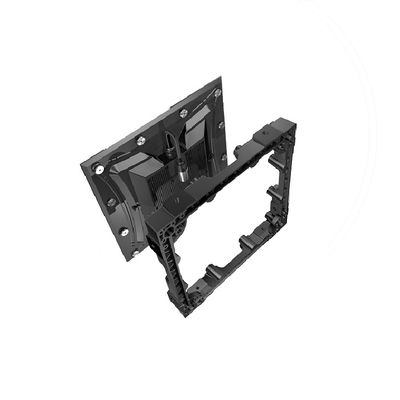

- Front access: Magnetic LED modules securely connect to the frame, with optional safety rope for added stability.
- Power box integration: Simplified design combines power supply, receiving card, and hub board into a compact unit for individual operation.

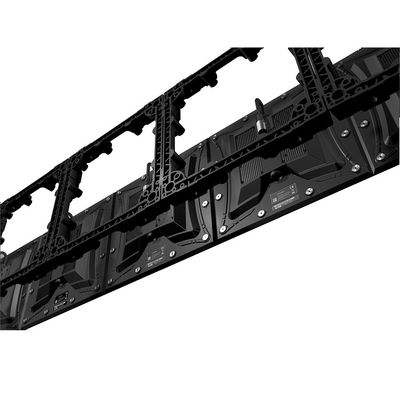

- Curved video wall: 45° edge modules enable curved LED walls using simple customized metal cabinets with magnetic attachment.
- 2-in-1 transmitting cable: Custom cable allows simultaneous current and signal transmission.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SMART BLOCK |
| Pixel Pitch | 2.85 mm |
| LED Type | SMD1415 |
| Pixel Density | 122,500 dots/sqm |
| Cabinet Dimension | 320x320mm |
| Module Resolution | 112*112 |
| Module Weight | 1.54 kg |
| Module+Frame Weight | 2.22 kg |
| Module Material | Die-casting aluminum |
| Driving Type | 1/16 |
| Brightness | 5000 nits |
| Max/Avg Power | 800/280 W/m2 |
| Maintenance | Front service |
| Environment | Outdoor Use |
| IP Rating | IP67 |
| Refresh Rate | >3840 Hz |
| Installation Type | Mounting/Hanging |
| Gray Scale | 16 bits |
| Viewing Angle | H:140°; V:160° |
| Operational Temp | -30℃~+60℃ |
| Operational Humidity | 10%~80% RH |
Applications
Ideal for advertising displays, informational screens, and event backdrops. The high brightness and resolution ensure effective message delivery with maximum visibility.
Frequently Asked Questions
Q1: How can I get technical support?
We provide comprehensive support including TEAMVIEWER assistance via online video and can dispatch professional engineers for on-site guidance.
Q2: What about your service?
We offer complete LED design solutions, usage instructions, configuration guidance, and maintenance support with spare parts. Professional on-site training is available.
Q3: How to operate and use it?
The display can be easily controlled via PC or smartphone. We provide video guidance and remote assistance upon request.
Q4: Are you a manufacturer or trading company?
We are a leading LED display manufacturer with over 10 years of experience, operating our own modern production facility and professional R&D team to ensure quality control and competitive pricing.
Q5: What is the minimum order quantity?
We support sample orders (typically one standard carton or minimum order unit). Bulk orders receive more competitive pricing, with negotiable MOQs based on product model.
