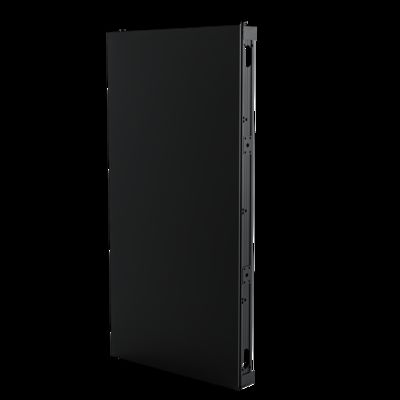

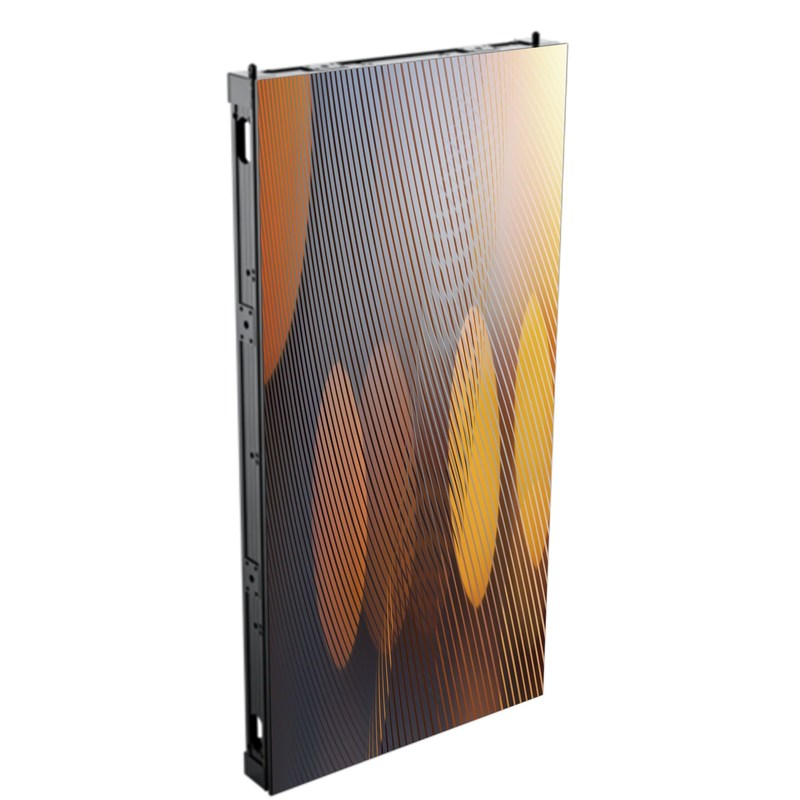

P10.4 Outdoor Fixed LED Display View Angel H/V:120°/120° For Roadside Poster
P10.4 Outdoor Fixed LED Display View Angel H/V:120°/120° For Roadside Poster
Brand Name
VW
Product Model
P10.4
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:
P10.4 outdoor LED display
,fixed LED screen for roadside
,120° viewing angle LED display
Product Name:
P10.4 Outdoor Fixed LED Display View Angel H/V:120°/120° For Roadside Poster
Pixel Pitch:
10.41mm
Module Size:
500*250*14mm
Cabinet Size:
500*1000*87mm
Brightness:
7500CD/m²
IP Rating:
IP65
Maintenance:
Front/Back
Material:
Aluminum Profile
Product Description
Detailed Specifications And Features
P10.4 Outdoor Fixed LED Display View Angel H/V:120°/120° For Roadside Poster

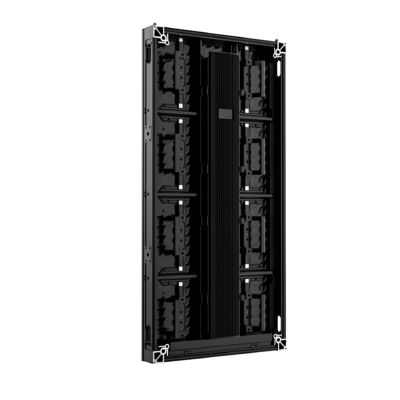

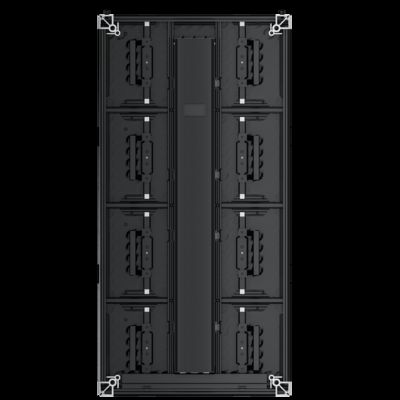

The precision-engineered aluminum cabinet showcases an 87mm ultra-slim framework weighing merely 19.5kg (500*1000mm), supporting flexible combinations of 500*1000mm and 500*750mm modules for customized configurations with unified control systems. Instant push-button locking facilitates 5-second module engagement, with supplementary curved adapters enabling radial arrangements. Noiseless sub-40dB fanless operation combines with individualized pixel calibration for perfect uniformity, while 3840Hz refresh technology eradicates all scanning artifacts--producing broadcast-standard imagery for professional stage and conference applications.
Key Features
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service.
- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Specifications
| Item | Specification Parameter |
|---|---|
| PixelPitch | 10.41mm |
| Resolution rate | 48*24mm |
| Module Size | 500*250*14mm |
| Pixel color | 1R1G1B |
| Pixel LED | SMD2727 Black led |
| Working voltage | DC4.6V |
| Module Power | ≤60W |
| Driving IC | ICN2055 |
| Drivingway | 1/2 |
| HUB | HUB(AXS-500X1000-PRO)-V1.0 |
| Material | Aluminum profile |
| Cabinet Weight (kg/Cabinet) | 19.5kg |
| Resolution rate | 48*96Dots |
| Cabinet Size | 500*1000*87mm |
| Module quantity | 1*4 |
| Density | 9216 Dots/㎡ |
| Brightness | 7500CD/m² |
| Color temperature | 6000K-8000K |
| View Angel | H/V:120°/120° |
| Non-Flatness | ＜0.2mm |
| Module Interval | ＜0.2mm |
| Maximal power/㎡ | ≤520W/㎡ |
| Average Power/㎡ | ≤160W/㎡ |
| Frame frequency | 60Hz |
| Refresh Frequency | 3840Hz |
| Gray Grade | ≥13bit |
| Working temperature | -20~50℃ |
| Protection grade | IP65 |
| Maintainace | Front/Back |
*Reference information, different configurations, different parameters
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we gladly accept sample orders for quality assessment and market evaluation.
Q2: Does there have any warranty?
A2: Yes, 1 year or 2 years after service.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: Is it OK to print my logo on the products?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: Low MOQ, 1 square meter or a module checking is available.
Q6: How can we guarantee quality?
A6: Quality is our highest priority. Each product is thoroughly assembled, rigorously inspected and tested to meet strict standards before being securely packaged for shipment.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
