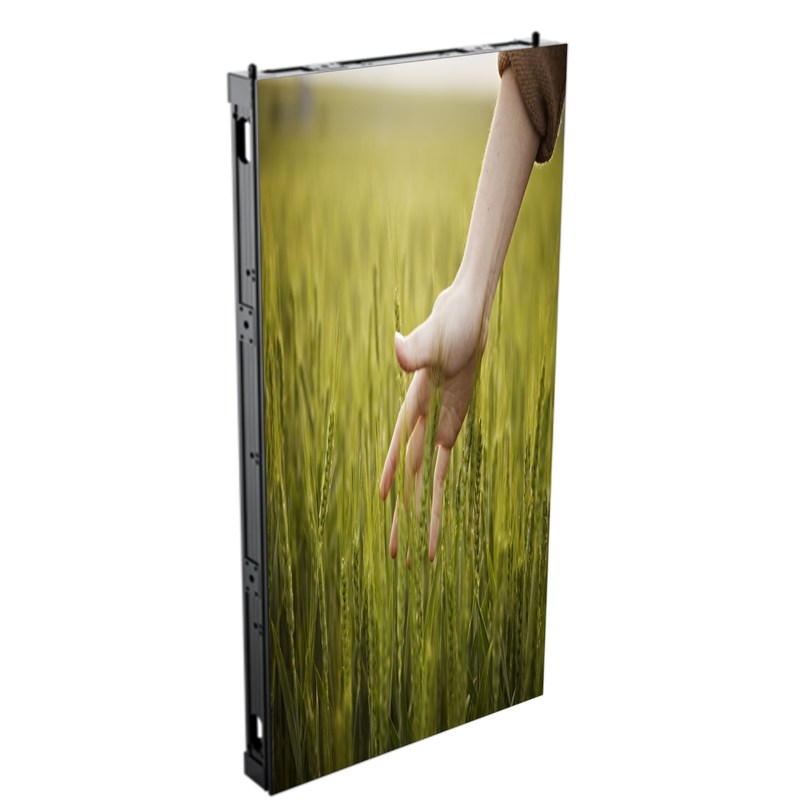

P4.8 Outdoor Fixed LED Display SMD1921 Black Led 19.5kg/Cabinet For Advertising

P4.8 Outdoor Fixed LED Display SMD1921 Black Led 19.5kg/Cabinet For Advertising
Brand Name
VW
Product Model
P4.8
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:

P4.8 outdoor LED display

,

SMD1921 fixed LED screen

,

19.5kg cabinet LED display
Product Name: P4.8 Outdoor Fixed LED Display SMD1921 Black Led 19.5kg/Cabinet For Advertising
Pixel Pitch: 4.81mm
Module Size: 500*250*14mm
Cabinet Size: 500*1000*87mm
Brightness: 7500CD/m²
IP Rating: IP65
Maintenance: Front/Back
Material: Aluminum Profile
Product Description
Detailed Specifications And Features
P4.8 Outdoor Fixed LED Display SMD1921 Black Led 19.5kg/Cabinet For Advertising

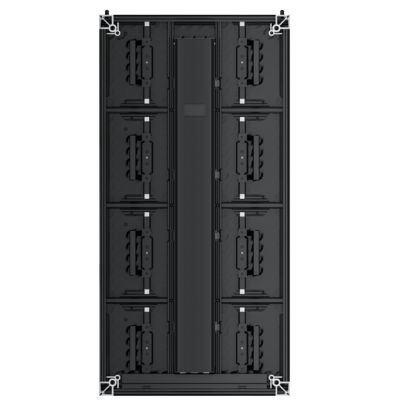

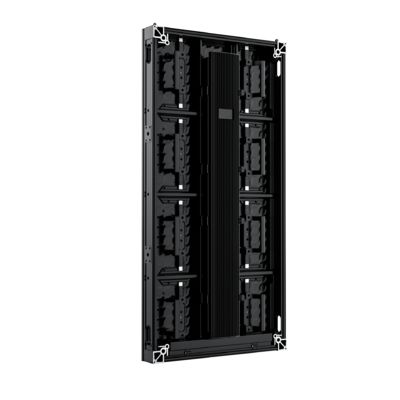

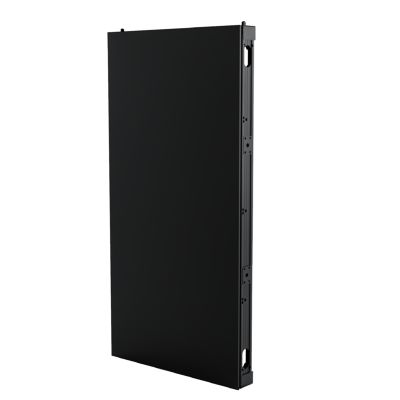

The precision-engineered aluminum cabinet showcases an 87mm ultra-slim framework weighing merely 19.5kg (500*1000mm), supporting flexible combinations of 500*1000mm and 500*750mm modules for customized configurations with unified control systems. Instant push-button locking facilitates 5-second module engagement, with supplementary curved adapters enabling radial arrangements. Noiseless sub-40dB fanless operation combines with individualized pixel calibration for perfect uniformity, while 3840Hz refresh technology eradicates all scanning artifacts--producing broadcast-standard imagery for professional stage and conference applications.
P4.8 Outdoor Fixed LED Display SMD1921 Black Led 19.5kg/Cabinet For Advertising 0
Key Features
  • Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
  • Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
  • Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.
  • Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Specifications
Item Specification
PixelPitch 4.81mm
Resolution rate 104*52mm
Module Size 500*250*14mm
Pixel color 1R1G1B
Pixel LED SMD1921 Black led
Working voltage DC4.6V
Module Power ≤60W
Driving IC ICN2055
Drivingway 1/13
HUB HUB(AXS-500X1000-PRO)-V1.0
Material Aluminum profile
Cabinet Weight (kg/Cabinet) 19.5kg
Resolution rate 128*208Dots
Cabinet Size 500*1000*87mm
Module quantity 1*4
Density 43264 Dots/㎡
Brightness 7500CD/m²
Color temperature 6000K-8000K
View Angel H/V:120°/120°
Non-Flatness ＜0.2mm
Module Interval ＜0.2mm
Maximal power/㎡ ≤520W/㎡
Average Power/㎡ ≤160W/㎡
Frame frequency 60Hz
Refresh Frequency 3840Hz
Gray Grade ≥13bit
Working temperature -20~50℃
Protection grade IP65
Maintainace Front/Back
*Reference information, different configurations, different parameters
Applications
  • Outdoor creative modeling
  • Building entrance
  • Park entrance
  • Swimming pool
  • Advertising billboard
  • Playing field
  • Outdoor activity area
  • Roadside poster
  • Building exterior wall
P4.8 Outdoor Fixed LED Display SMD1921 Black Led 19.5kg/Cabinet For Advertising 1
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen.
Q2: Does there have any warranty?
A2: Yes, 1 year or 2 years after service.
Q3: Can I customize it?
A3: Yes, we can design different categories of products according to your requirements.
Q4: Is it OK to print my logo on the products?
A4: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
