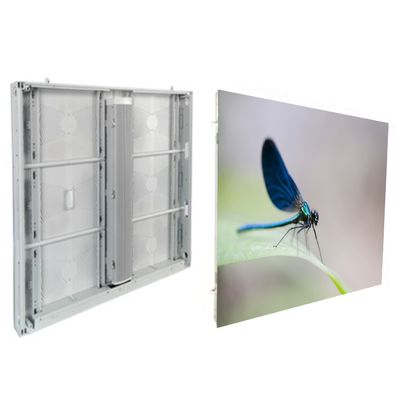

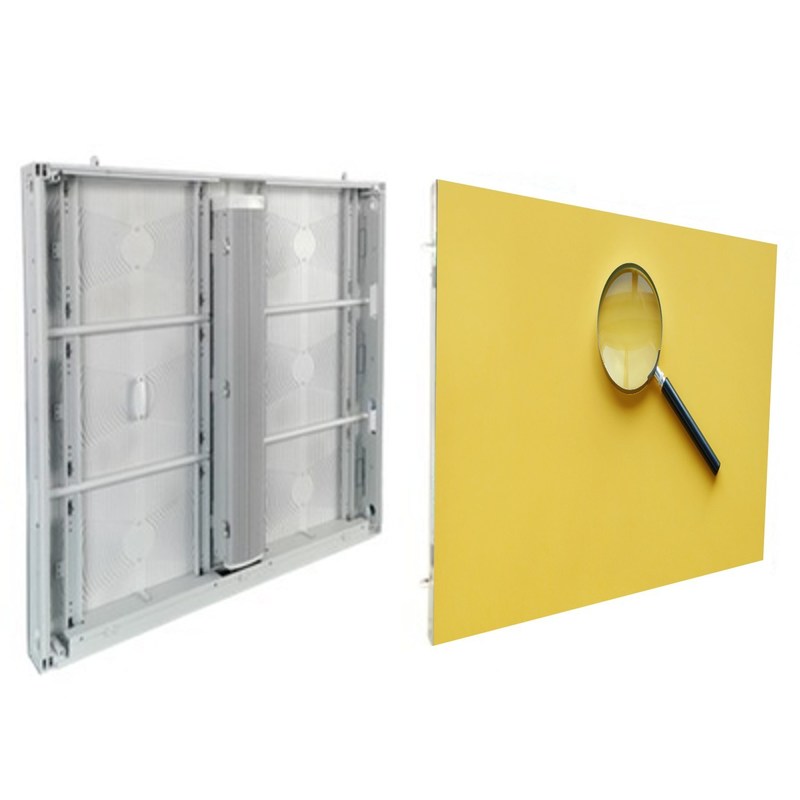

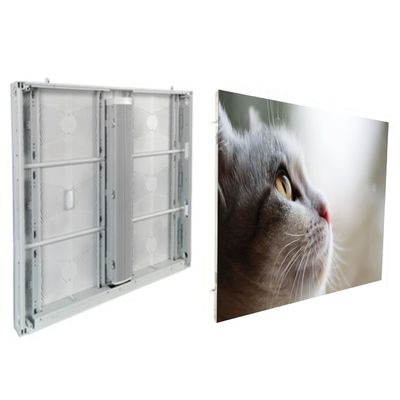

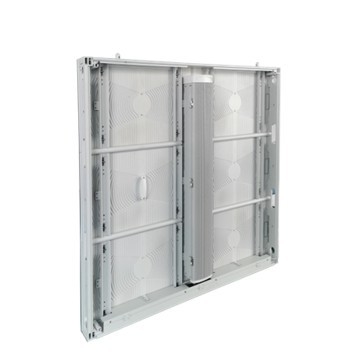

P10 Outdoor Fixed LED Display Operational Temp -20~50℃ For Building Entrance

P10 Outdoor Fixed LED Display Operational Temp -20~50℃ For Building Entrance
Brand Name
VW
Product Model
P10
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:

P10 outdoor LED display

,

fixed LED screen for building entrance

,

outdoor LED display with wide temperature range
Product Name: P10 Outdoor Fixed LED Display Operational Temp -20~50℃ For Building Entrance
Pixel Pitch: P10
Module Size: 480*320mm
Cabinet Dimension: 960x960x77mm
Cabinet Weight: 28kg
Maintenance: Front/Rear Service
IP Rating: IP65
Brightness: >6500nits
Product Description
Detailed Specifications And Features
P10 Outdoor Fixed LED Display Operational Temp -20~50℃ For Building Entrance
The P10 Outdoor Fixed LED Display meets TUV 5VB fireproof certification standards and combines an aluminum chassis with IP65 multi-layer waterproof protection for dual safety assurance. Its all-aluminum dense heat sink and partial voltage power supply enable low-temperature operation and extended longevity. The hard-wired architecture ensures structural stability, while the slim 77mm profile and lightweight 32kg/m² construction simplify wall mounting and front/back maintenance. The module's left/right interchangeable design significantly reduces operational and maintenance costs.
P10 Outdoor Fixed LED Display Operational Temp -20~50℃ For Building Entrance 0
Key Features
  • Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
  • Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
  • High brightness: Customized module PCB and designated power supply make it up to 6500nits brightness.
  • Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
  • Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
Item P5.7 P6.67 P8 P10
Pixel Pitch 5.7mm 6.67mm 8mm 10mm
Module Size 480*320mm
Cabinet Size 960*960*77mm
Working Voltage 3.2/4.2V
Scan Mode 1/7 1/6 1/4 1/2
Cabinet Material Aluminum Profile
Cabinet Weight 28kg/cabinet
Brightness >6500nits
Power Consumption 650/228w/m2 540/2189w/m2 650/228w/m2 650/228w/m2
Maintenance Front/Rear Service
IP Rating IP65
Refresh Rate ≥3840Hz
Viewing Angle H:140°; V:140°
Operational Temp ﹣20~50℃
Operational Humidity 10%~90%RH
Applications
  • Outdoor creative modeling
  • Building entrance
  • Park entrance
  • Swimming pool
  • Advertising billboard
  • Playing field
  • Outdoor activity area
  • Roadside poster
  • Building exterior wall
P10 Outdoor Fixed LED Display Operational Temp -20~50℃ For Building Entrance 1 P10 Outdoor Fixed LED Display Operational Temp -20~50℃ For Building Entrance 2
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize it?
A3: Yes, we can design different categories of products according to your requirements.
Q4: Is it OK to print my logo on the products?
A4: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q5: Do you have any Minimum Order Quantity (MOQ) limit for LED display order?
A5: Low MOQ, 1 square meter or a module checking is available. And the price is negotiable for large quantities.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
