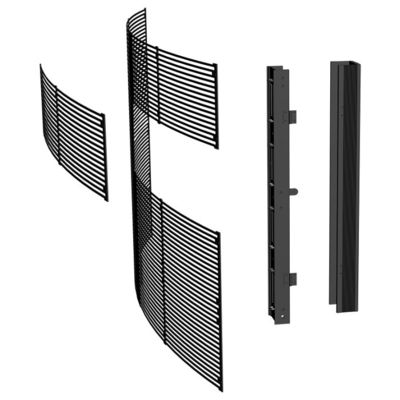

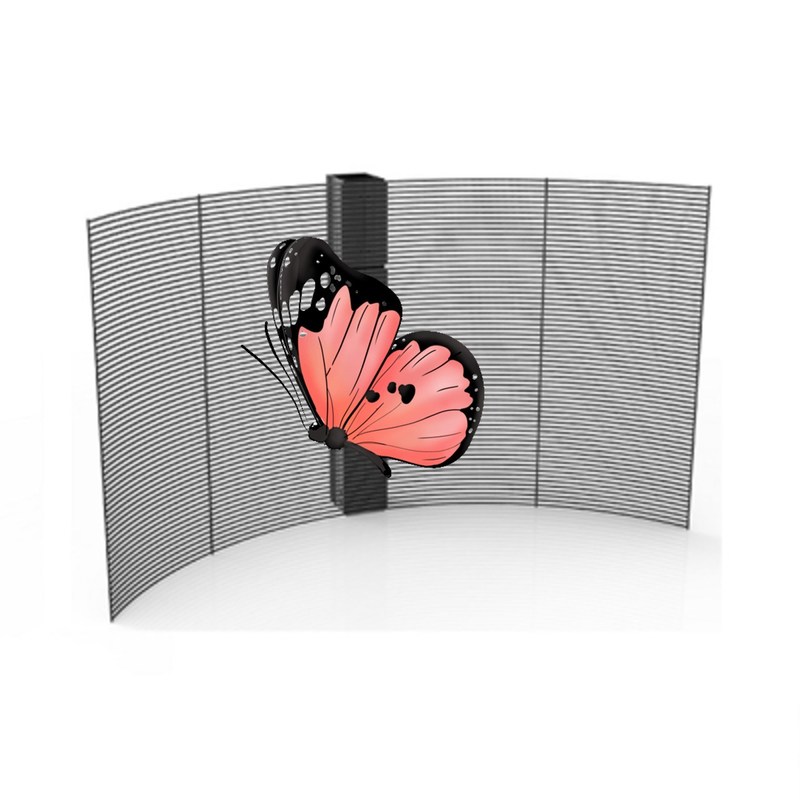

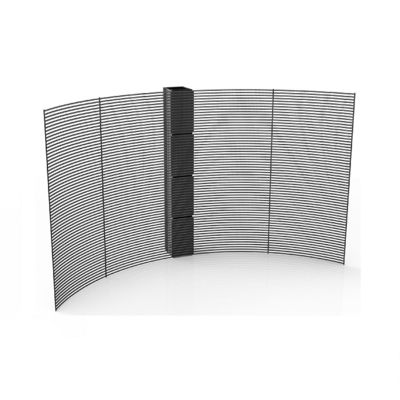

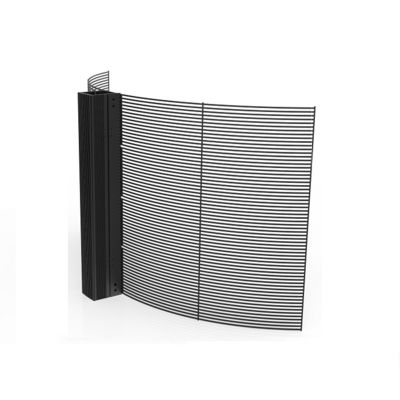

P1.9 Full Color Window Screen Frameless Flexible Structure For Glass Curtain Walls
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | TF1.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, carton box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.9 Full Color Window Screen Frameless Flexible Structure For Glass Curtain Walls | Pixel Pitch: | 1.98*3.9mm |
|---|---|---|---|
| Module Size: | 500×125mm | Cabinet Size: | 1000×500×84mm |
| Cabinet Material:: | Aluminum | Brightness:: | 800-5500 Nits |
| IP Rating: | F: IP20, R: IP21 | Installation Type:: | Mounting/Hanging |
| Highlight: | P1.9 frameless LED display,flexible transparent LED screen,full color window screen display |
||
Product Description
The seamless fusion of LED technology and transparent glass achieves a uniquely sophisticated visual harmony, uniting cutting-edge innovation with architectural elegance. This solution effortlessly adapts to curved surfaces, frameless installations, and fully bespoke designs—every element showcasing meticulous craftsmanship and customized professional support to fulfill precise client needs.
- Brightness 800-5500nits adjustable
- Quick Installation and Maintenance
- Fast lock mechanism
- Frontal protection
| Parameter | Value |
|---|---|
| Product Model | TF1.9 |
| Pixel Pitch | 1.98*3.9 mm |
| LED Type | SMD1515; SMD1415 |
| Cabinet Dimension | 1000x500x84 mm |
| Module Size | 500x125 mm |
| Cabinet Weight | 3.5 kg |
| Cabinet Material | Aluminum |
| Driving Type | 1/16 |
| Brightness | 800-5500 nits |
| Max/Avg Power | 400/140; 800/280 W/m² |
| Transparency Rate | 42% |
| Environment | Indoor Use |
| IP Rating | F: IP20, R: IP21 |
| Refresh Rate | >1920 Hz |
| Installation Type | Mounting/Hanging |
| Gray scale | 14 bit |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | -20°C~+60°C |
| Operational Humidity | 10%~90% RH |
Supermarket, airport advertising display, self-service store, metro station, museum, convenience store, stadium exhibition, chain brand store, high-end conference room, luxury brand store, hotel, bar, theatre, cinema, T stage, showroom, tourist attractions...
A1: Yes, we welcome sample orders for quality testing. You can choose any item you're interested in.
A2: Yes, a two-year warranty for all products.
A3: Yes, we can design different categories of products according to your requirements.
A4: We mostly accept FOB train term, but we can help you order and arrange shipping agent. It usually takes 20-30 days by sea, plus a few days for customer clearance.
A5: Yes, we offer logo customization. Please share your logo design and our team will confirm the details before production.
A6: Low MOQ, 1 square meter or a module checking is available.
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
