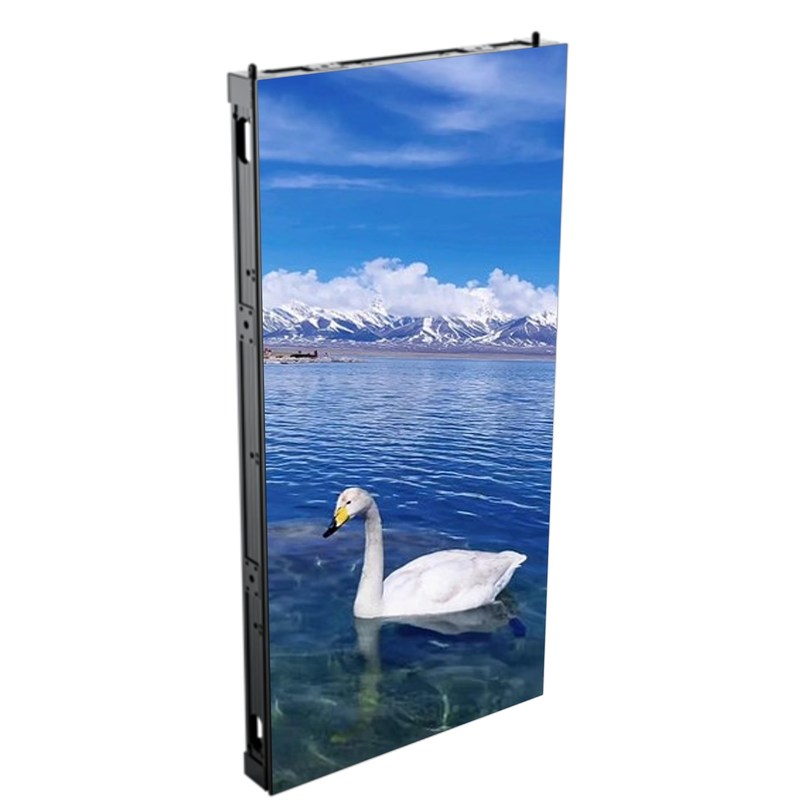

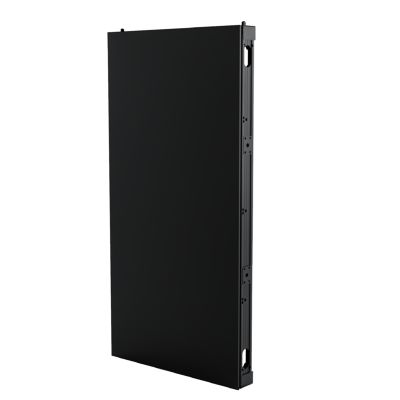

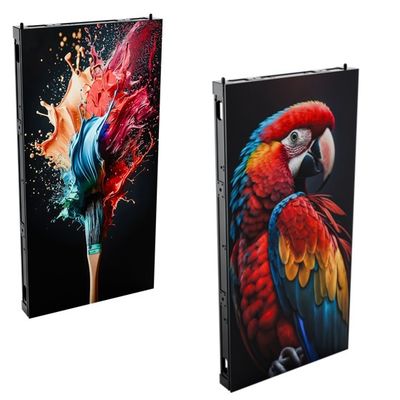

P3.91 Outdoor Fixed LED Display 500x1000mm Curved Surface Splicing 3840Hz
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.91 Outdoor Fixed LED Display 500x1000mm Curved Surface Splicing 3840Hz | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Cabinet Size: | 500*1000*87mm | Module Size: | 500*250*14mm |
| Cabinet Weight: | 19.5kg/Cabinet | Brightness: | 7500CD/m² |
| IP Rating: | IP65 | Maintenance: | Front/Back |
| Highlight: | P3.91 outdoor LED display,500x1000mm curved LED screen,3840Hz fixed LED display |
||
Product Description
P3.91 Outdoor Fixed LED Display 500x1000mm Curved Surface Splicing 3840Hz
Product Description

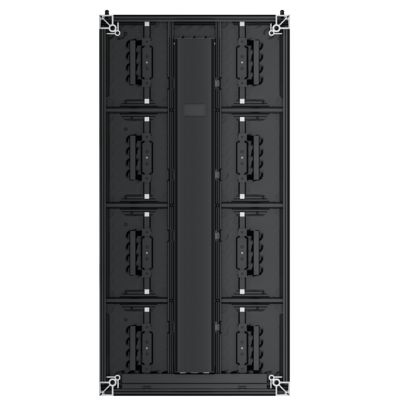

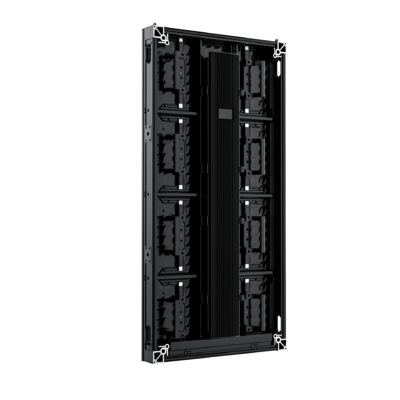

High-precision aluminum profile cabinet is only 87mm thick/19.5kg (500×1000mm),500×1000mm and 500×750mm cabinets are free to mix and match shaped shapes, sharing the same type of control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing. Fanless ≤ 40dB silent operation, point-by-point calibration to ensure pixel-level uniformity. 3840Hz high refresh to eliminate 1/3000s shutter residual shadow, for stage performances, conferences, to provide a broadcaster-level visual base.
Features
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.
- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Parameters
| Item | Specification |
|---|---|
| Pixel Pitch | 3.91mm |
| Resolution rate | 128*64mm |
| Module Size | 500*250*14mm |
| Pixel LED | SMD1921 Black led |
| Module Power | ≤74W |
| Driving IC | ICN2055 |
| Drivingway | 1/8 |
| Material | Aluminum profile |
| Cabinet Weight (kg/Cabinet) | 19.5kg |
| Resolution rate | 128*256Dots |
| Cabinet Size | 500*1000*87mm |
| Module quantity | 1*4 |
| Density | 65536 Dots/㎡ |
| Brightness | 7500CD/m² |
| View Angel | H/V:120°/120° |
| Maximal power/㎡ | ≤650W/㎡ |
| Average Power/㎡ | ≤220W/㎡ |
| Refresh Frequency | 3840Hz |
| Gray Grade | ≥13bit |
| Protection grade | IP65 |
| Maintenance | Front/Back |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a professional OEM & ODM manufacturer with more than 10 years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained lS09001, 1S014001, CE, RoHS, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can be negotiated.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.
Q5: Can we make any size we want? And What's the best size of led screen?
A5: Yes, we can design any size according to your size requirement. Normally, advertising, stage led screen. The best aspect ratio of LED display are W16:H9 or W4:H3.
Q6: What's the function of video processor?
A6: lt can tranfter the video source to make the screen performance more clear, and normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if want to play other kind video source, such as HDMl, SDIVGA signal port, that will need. Or the HD led screen, its resolution is high, need more than 2pcs sending cards also need video processor.
