P7.8 Outdoor Fixed LED Display SMD2727 2+1 Power Aluminum Profile 9000nits
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P7.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P7.8 Outdoor Fixed LED Display SMD2727 2+1 Power Aluminum Profile 9000nits | Pixel Pitch: | 7.8125mm |
|---|---|---|---|
| Cabinet Weight: | 30kg/Cabinet | Module Size: | 500*250mm |
| Cabinet Dimension: | 1000*1000mm/1000*500mm/1000*750mm/1500*1000mm/1500*500mm | IP Rating: | IP65 |
| Brightness: | 6000/9000nits | Cabinet Material: | Aluminum Profile |
| Highlight: | P7.8 outdoor LED display,SMD2727 fixed LED screen,9000nits aluminum profile display |
||
Product Description

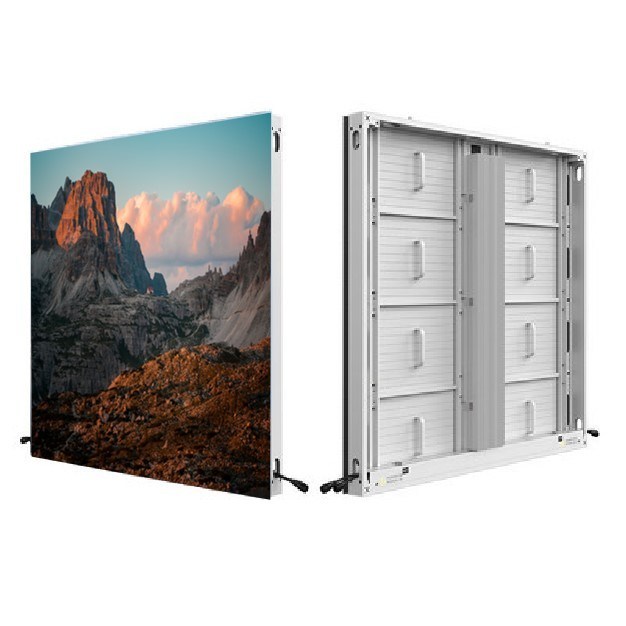

P7.8 Outdoor Fixed LED Display SMD2727 2+1 Power Aluminum Profile 9000nits
Product Description

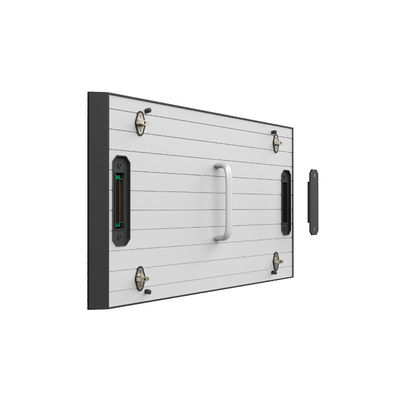

The P7.8 Outdoor Fixed LED Display integrates reliability and high performance through its robust installation design. Its hub connection minimizes failure rates, while the 500 x 250mm aluminum backplate resists deformation and enhances thermal management. Supporting both front and rear maintenance, it features an IP65 waterproof rating and a 2+1 power connector to prevent overheating damage. Optional smart modules with common cathode or anode configurations provide additional adaptability for diverse application needs.
Features

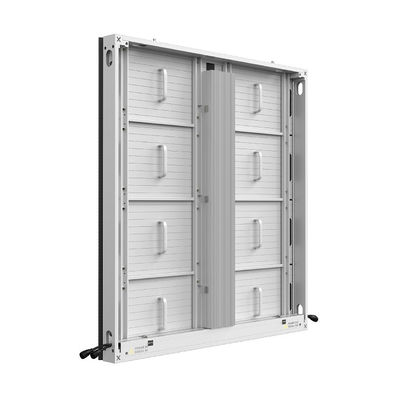

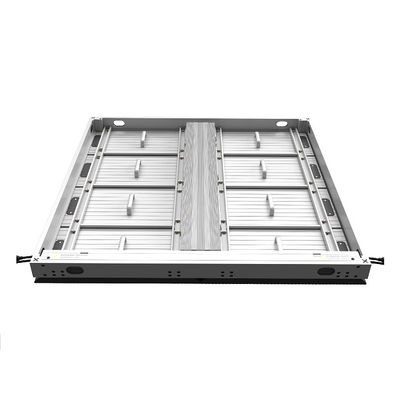

- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.

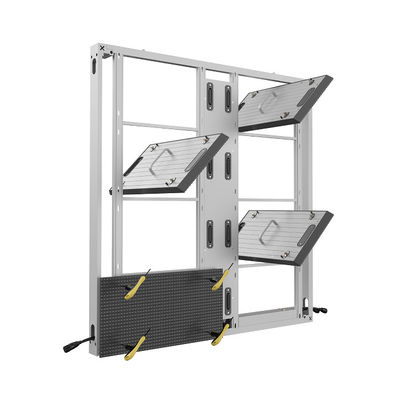

- Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- Better Heat Dissipation: After one hour of white balance illumination, the aluminum base demonstrates superior heat dissipation, registering a temperature 10 degrees lower than a plastic base.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- 2+1 Power: The 2+1 power connector design features a built-in anti-reverse insertion mechanism to avoid damage from incorrect connections, precisely meets current load requirements for stable power delivery, and ensures safe, reliable module operation even under fluctuating electrical conditions.
Technical Parameters
| Item | P7.8 |
|---|---|
| Pixel Pitch | 7.8125mm |
| Module Size | 500*250mm |
| Cabinet Dimension | 1000*1000*90mm/1000*500*90mm/1000*750*90mm/1500*1000*90mm/1500*500*90mm |
| LED Type | SMD2727 |
| Scan Mode | 1/4 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 30kg/cabinet |
| Brightness | 6000/9000nits |
| Power Consumption | 600/210w/m2 |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity | 10%~90%RH |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a professional OEM & ODM manufacturer with more than 10 years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained IS09001, IS014001, CE, RoHS, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can be negotiated.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.
Q5: Can we make any size we want? And What's the best size of led screen?
A5: Yes, we can design any size according to your size requirement. Normally, advertising, stage led screen. The best aspect ratio of LED display are W16:H9 or W4:H3.
Q6: What's the function of video processor?
A6: It can transfer the video source to make the screen performance more clear, and normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if want to play other kind video source, such as HDMI, SDIVGA signal port, that will need. Or the HD led screen, its resolution is high, need more than 2pcs sending cards also need video processor.
