P2.85 Outdoor Display Module Full Front Access 320x320mm Die-casting AL 5000 nits
P2.85 outdoor LED display module
,320x320mm die-casting AL LED module
,5000 nits outdoor display module
P2.85 Outdoor Display Module Full Front Access 320x320mm Die-casting AL 5000 nits
Product Description:
P2.85 Outdoor LED Display Module is designed to deliver exceptional visual performance in a variety of outdoor settings. With a pixel pitch of 2.85mm, this module ensures that images are displayed with high clarity and detail, capturing the attention of viewers from a distance.

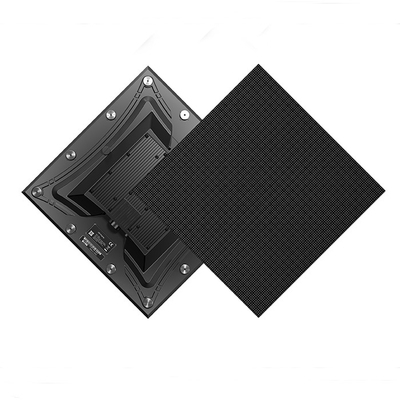

This model is crafted with a die-casting aluminum cabinet, which is not only lightweight but also provides a high level of durability. The cabinet's design facilitates easy installation and integration into various structures, such as building facades or freestanding frames.
A key feature of this display is its high brightness of 5000 nits, which ensures that the screen remains visible and vivid even under direct sunlight. This is particularly beneficial for outdoor advertising, where the screen needs to compete with bright ambient light.
Features:
- Die-casting aluminum:Light and durable die-casting aluminum panel makes accurate assembling of corresponding hole position

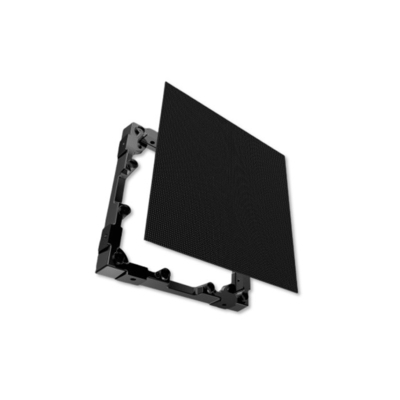

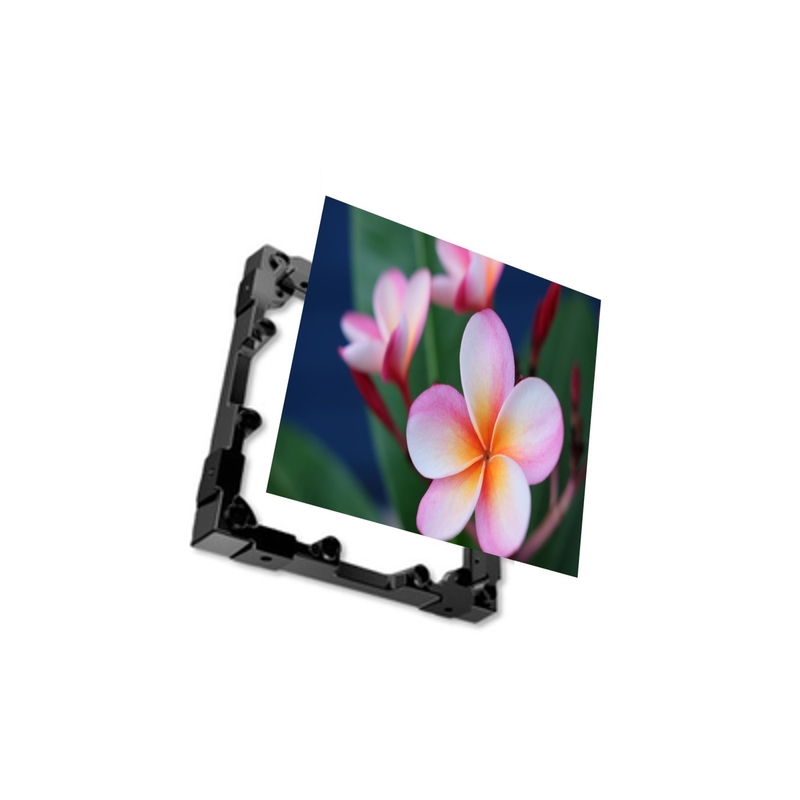

- Front access:Magnetic led modules strongly connect to the module frame. Safety rope is optional to tighten the connection.
- Power box integration:The power supply, receiving card and hub board are simplied into a small power box. The module can work individually.

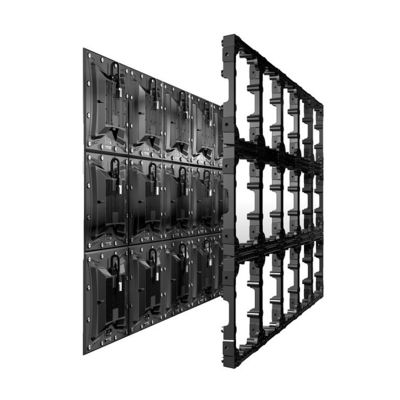

- Curved video wall:The 45° edges modules are compatible with simple customized metal cabinet by magnets, which allows the module to build curved led walls.
- 2-in-1 transmiting cable:Customized 2 in 1 cable allows the led screen to transmit the current and signal simultaneously.
Technical Parameters:
| Technical Parameters | Outdoor LED Display Module |
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1415 |
| Pixel Density: | 122500 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 112*112 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:160° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
Apllication:
This product can be used for advertising, informational displays, and even as a background for events and performances. With its high brightness and resolution, it can easily attract the attention of passersby and deliver your message effectively.
FAQ:
Q1: Are you a manufacturer or a trading company?
A1: We are a professional OEM & ODM manufacturer with more than 10 years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained lS09001, 1S014001, CE, RoHS, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can benegotiated.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.
Q5.Can we make any size we want? And What's the best size of led screen?
A5:Yes, we can design any size according to your size requirement. Normally, advertising ,stage led screen.The best aspect ratio of LED display are W16:H9 or W4:H3.
Q6.What's the function of video processor?
A6:lt can tranfter the video source to make the screen performance more clear, and normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if want to play other kind video source, such as HDMl, SDIVGA signal port, that will need.Or the HD led screen, its resolution is high, need more than 2pcs sending cards also need video processor.
-
