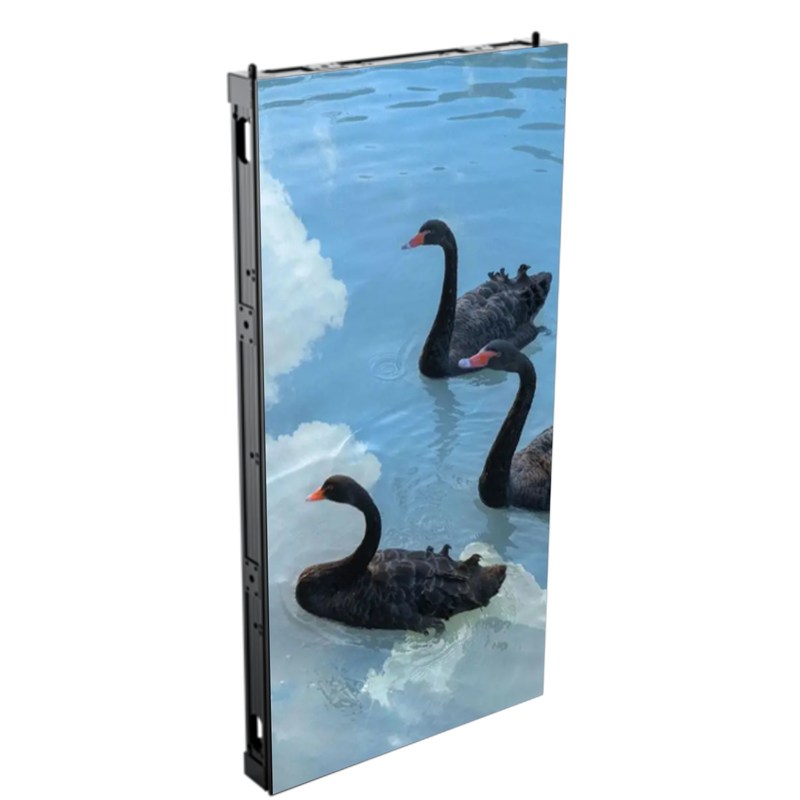

P6.9 Outdoor Fixed LED Display Work In Silence IP65 For Advertising Billboard
P6.9 Outdoor Fixed LED Display Work In Silence IP65 For Advertising Billboard
Brand Name
VW
Product Model
P6.9
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:
P6.9 outdoor LED display
,IP65 waterproof LED screen
,silent advertising billboard display
Product Name:
P6.9 Outdoor Fixed LED Display Work In Silence IP65 For Advertising Billboard
Pixel Pitch:
6.94mm
Module Size:
500*250*14mm
Cabinet Size:
500*1000*87mm
Brightness:
7500CD/m²
IP Rating:
IP65
Maintenance:
Front/Back
Material:
Aluminum Profile
Product Description
Detailed Specifications And Features
P6.9 Outdoor Fixed LED Display Work In Silence IP65 For Advertising Billboard

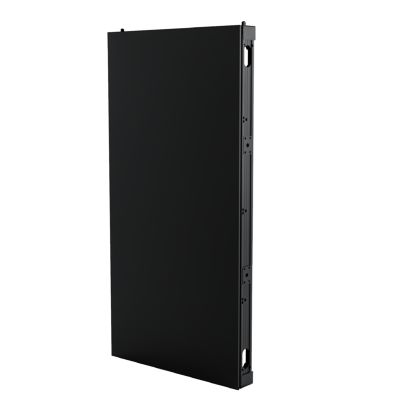

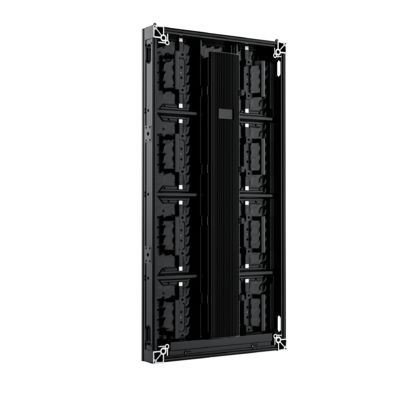

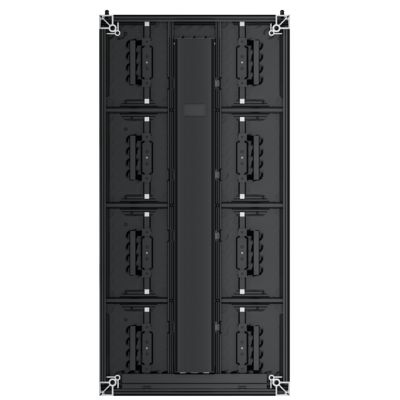

The high-precision aluminum cabinet boasts an ultra-slim 87mm profile and lightweight 19.5kg (500×1000mm) build, enabling flexible mixing of 500×1000mm and 500×750mm cabinets for custom configurations with unified control. A push-button lock allows 5-second assembly, with optional arc locks for curved setups. Fanless operation ensures ≤40dB silence, while point-by-point calibration guarantees pixel uniformity. The 3840Hz refresh rate eliminates shutter shadows, providing broadcast-grade visuals for stages and conferences.
Key Features
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service.
- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Specifications
| Item | Specification Parameter |
|---|---|
| Pixel Pitch | 6.94mm |
| Module Size | 500*250*14mm |
| Pixel LED | SMD2727 Black led |
| Working voltage | DC4.6V |
| Module Power | ≤60W |
| Material | Aluminum profile |
| Cabinet Weight | 19.5kg |
| Cabinet Size | 500*1000*87mm |
| Brightness | 7500CD/m² |
| View Angle | H/V:120°/120° |
| Refresh Frequency | 3840Hz |
| Working temperature | -20~50℃ |
| Protection grade | IP65 |
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen. Mixed samples are acceptable.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: Is it OK to print my logo on the products?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: Low MOQ, 1 square meter or a module checking is available.
Q6: How can we guarantee quality?
A6: Quality is our highest priority. Each product is thoroughly assembled, rigorously inspected and tested to meet strict standards before being securely packaged for shipment.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
