P3.9 Outdoor Fixed LED Display Point By Point Calibration IP65 For Park Entrance

P3.9 Outdoor Fixed LED Display Point By Point Calibration IP65 For Park Entrance
Brand Name
VW
Product Model
P3.9
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:

P3.9 outdoor LED display

,

fixed LED screen IP65

,

point by point calibration LED
Product Name: P3.9 Outdoor Fixed LED Display Point By Point Calibration IP65 For Park Entrance
Pixel Pitch: 3.91mm
Cabinet Weight: 19.5kg/Cabinet
Module Size: 500*250*14mm
Cabinet Size: 500*1000*87mm
IP Rating: IP65
Maintenance: Front/Back
Material: Aluminum Profile
Product Description
Detailed Specifications And Features
P3.9 Outdoor Fixed LED Display Point By Point Calibration IP65 For Park Entrance
Product Overview

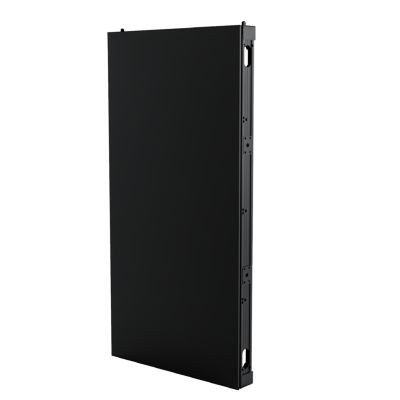

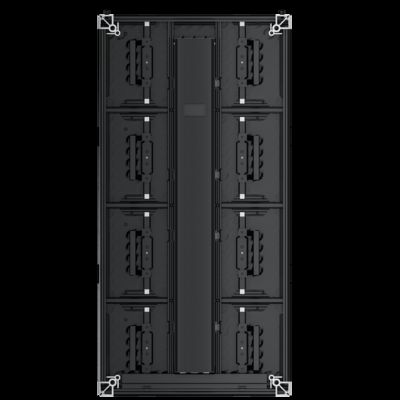

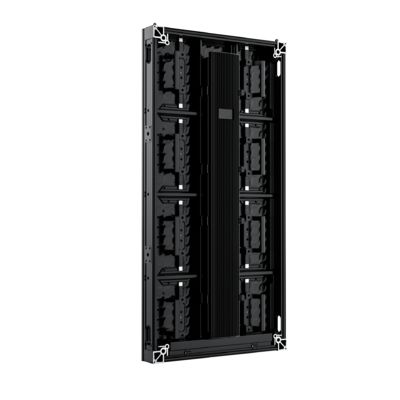

The P3.9 Outdoor Fixed LED Display features a high-precision aluminum profile cabinet with an ultra-slim 87mm thickness and lightweight 19.5kg design (500×1000mm). The system allows free mixing of 500×1000mm and 500×750mm cabinets for custom configurations with shared control box compatibility. Its push-button lock enables 5-second rapid assembly, while optional arc locks support curved installations.

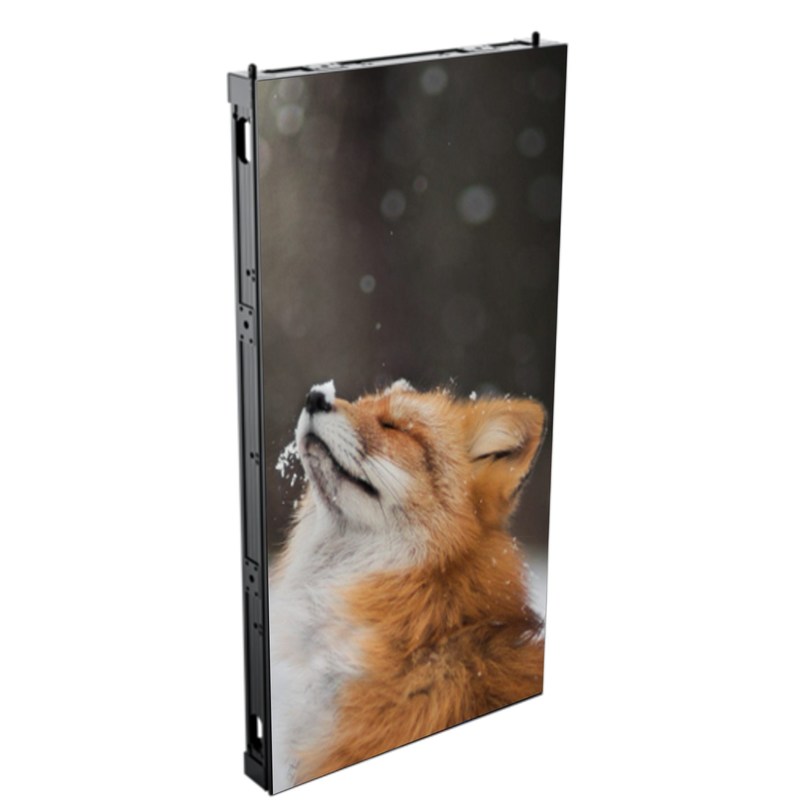

P3.9 Outdoor LED Display showing high-resolution content
Key Features
  • Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieving pixel-level display consistency.
  • Silent Operation: Fanless design maintains ≤40dB (A) ambient sound level for quiet performance.
  • Easy Installation & Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly/disassembly; optional magnetic modules support front/rear service.
  • Flexible Cabinet Design: 500x1000mm and 500x750mm cabinets can be mixed and assembled into various shapes; shared simple mini control box saves installation and calibration time.
  • High Performance: 3840Hz refresh rate eliminates shutter shadows; 7500CD/m² brightness ensures excellent visibility in outdoor conditions.
Technical Specifications
Parameter P3.91mm P4.81mm P6.94mm P10.41mm
Pixel Pitch 3.91mm 4.81mm 6.94mm 10.41mm
Module Size 500*250*14mm 500*250*14mm 500*250*14mm 500*250*14mm
Pixel LED SMD1921 Black led SMD1921 Black led SMD2727 Black led SMD2727 Black led
Working Voltage DC4.6V DC4.6V DC4.6V DC4.6V
Brightness 7500CD/m² 7500CD/m² 7500CD/m² 7500CD/m²
Refresh Frequency 3840Hz 3840Hz 3840Hz 3840Hz
Protection Grade IP65 IP65 IP65 IP65
Working Temperature -20~50℃ -20~50℃ -20~50℃ -20~50℃
Applications
  • Outdoor creative modeling
  • Building entrance displays
  • Park entrance signage
  • Swimming pool displays
  • Advertising billboards
  • Playing field displays
  • Outdoor activity areas
  • Roadside posters
  • Building exterior walls
P3.9 Outdoor LED Display installation example
Frequently Asked Questions
Q1: Can you accept a sample order?

A1: Yes, we welcome sample orders so you can assess the quality and test the market before committing to bulk purchases.

Q2: Does there have any warranty?

A2: Yes, we provide a 24-month warranty on all our products to guarantee your satisfaction and confidence in our offerings.

Q3: Can I customize it?

A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.

Q4: Is it OK to print my logo on the products?

A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: Do you have any MOQ limit for LED display order?

A5: Low MOQ, 1 square meter or a module checking is available. And the price is negotiable for large quantities.

Q6: How can we guarantee quality?

A6: Always a pre-production sample before mass production; Always final Inspection before shipment. The lamp beads used in our LED display are all genuine. We do not need to use scattered lights and tail lights. Using silver-containing solder paste, pure copper cords, and short cables, a good screen is our commitment to every customer.

Q7: To order a display, what kind of information do I have to offer you?

A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
