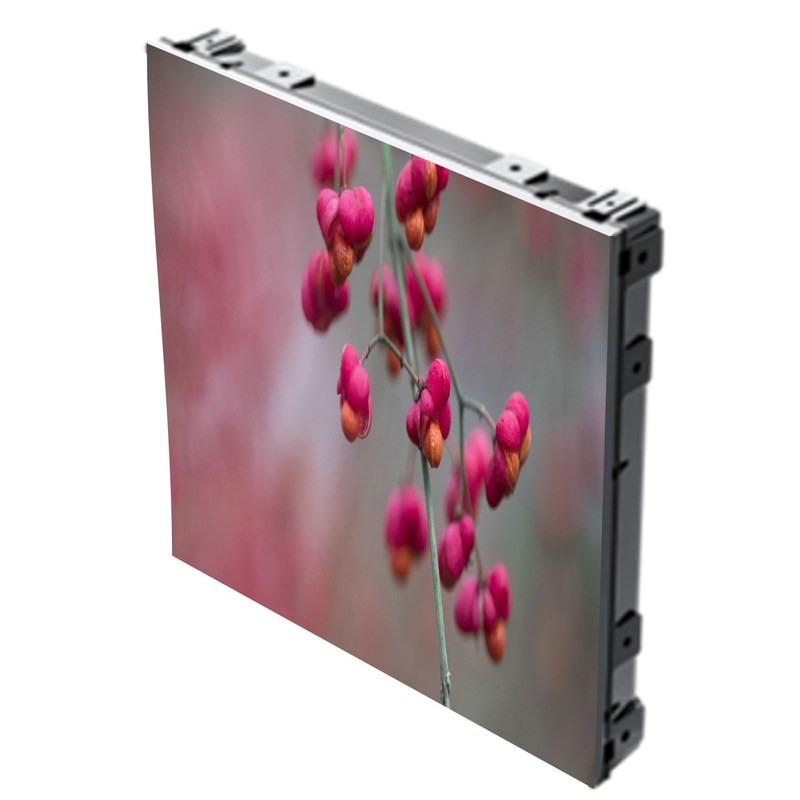

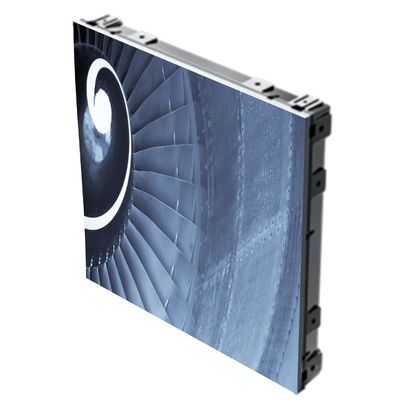

P1.56 Onyxa Series Fixed LED Display Screen Work In Silence IP65 For Live Events
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.56 Onyxa Series Fixed LED Display Screen Work In Silence IP65 For Live Events | Pixel Pitch: | P1.56 |
|---|---|---|---|
| Module Size: | 500*250mm | Cabinet Size: | 500*500*65mm |
| Cabinet Weight: | 26kg/m² | Color Temperature: | ≥6500K-8000k |
| Maintenance: | Front/Back | Note: | *Reference Information/ Different Configurations/ Different Parameters |
| Highlight: | P1.56 fixed LED display screen,Onyxa Series silent LED screen,IP65 outdoor LED display |
||
Product Description
P1.56 Onyxa Series Fixed LED Display Screen Work In Silence IP65 For Live Events
Product Description
The innovative magnetic suction module enables rapid front-access maintenance, while its fanless design ensures ultra-quiet operation with noise levels below 40dB. Pixel-level uniformity is achieved through point-by-point calibration technology, and the 3840Hz high refresh rate eliminates residual shadows from 1/3000s shutter photography. Ideal for conference centers, stage performances, and real estate showrooms, this display combines seamless performance with versatile applicability.
Key Features

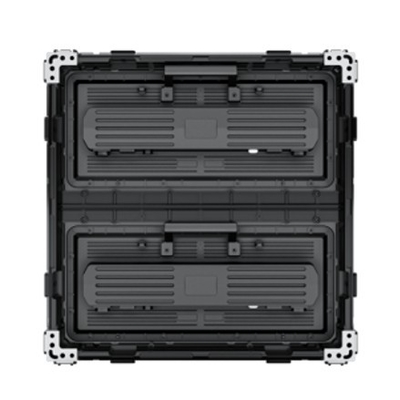

- Magnetic Module: Module with magnet and lock design, fast to maintain and safe, can be Front and rear access
- Work In Silence: Adopt fanless passive cooling design, working noise ≤ 40dB (whisper level)
- Point By Point Calibration: Through the point-by-point white balance calibration technology, each LED lamp bead is independently compensated for color temperature

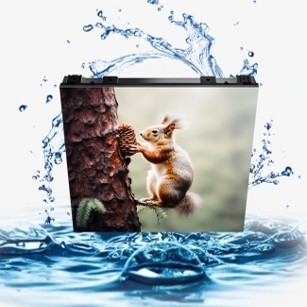

- IP65 Protection: Full-sealed die-casing aluminum with IP65 weather protection resists water, moisture and dust from entering the display even in some of the harshest environments
Technical Specifications
| Item | P1.56 |
|---|---|
| Pixel Pitch | 1.56mm |
| Resolution rate | 320*160Dots |
| Module size | 500*250 |
| Pixel color | 1R1G1B |
| Pixel LED | MIP1010 |
| Working voltage | DC3.8V/2.8V |
| Module Power | 62W |
| Driving IC | ICND2159 |
| Driving way | 1/27 |
| HUB | HUB75 |
| Material | Die-CastAluminum |
| Cabinet Weight | 26kg/m² |
| Resolution rate | 320*320Dots |
| Cabinet size | 500*500*65mm |
| Module quantity | 2X1 |
| Density | 409600 Dots/㎡ |
| White balance | 2500-4000CD/㎡ |
| Color temperature | ≥6500K-8000k |
| View angle | H/V:140°/140° |
| Non-Flatness | ＜0.2mm |
| Module interval | ＜0.2mm |
| Maximal power/㎡ | ≤560W/㎡ |
| Average power/㎡ | ≤160W/㎡ |
| Frame frequency | 60Hz |
| Refresh frequency | 3840Hz |
| Gray grade | ≥16bit |
| Working temperature | -20~70℃ |
| Protecting rate | IP65 |
| Maintainace | Front/Back |
| Note | *Reference information/ different configurations/ different parameters |
Applications
Our products are widely used in a variety of settings, including stage rentals, song and dance performances, conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance venues, nightclubs, high-end entertainment venues, TV events like the Spring Festival Gala, and important cultural activities across provinces and cities.
Service and Support
Pre-Sale Services
- Prompt Responses: Inquiries are addressed within 24 hours to provide timely assistance.
- Market Insights: Detailed market research and forecasts help you make informed decisions.
- Tailored Solutions: Customized proposals are designed to meet your specific requirements.
- Sample Provision: Datasheets and product samples are readily available for evaluation.
- Additional Services: Custom packaging options and factory visit arrangements are offered for added convenience.
In-Sale Services
- Production Monitoring: Continuous updates and progress tracking throughout production.
- Visual Updates: Photos and videos are provided upon request to keep you informed.
- Free Spare Parts: Complimentary spare parts are included to enhance reliability and performance.
After-Sales Support
- Rapid Complaint Handling: Issues are addressed within 24 hours with solutions provided within 48 hours.
- Comprehensive Warranty: A 24-month warranty ensures peace of mind and reliability.
- Technical Training: Free training sessions for technicians empower your team with essential skills.
- Complete Documentation: A full set of documents, including an installation guide, software manual, maintenance guide, and control system software CD, ensures smooth operation and maintenance.
Frequently Asked Questions
Q1: Can you accept the sample orders?
A1: Yes, we welcome sample orders so you can assess the quality and test the market before committing to bulk purchases.
Q2: Does there have any warranty?
A2: Yes, we provide a 24-month warranty on all our products to guarantee your satisfaction and confidence in our offerings.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: Do you have any MOQ limit for LED display order?
A4: Low MOQ, 1 square meter or a module checking is available.
Q5: How can we guarantee quality?
A5: Quality is our highest priority. Each product is thoroughly assembled, rigorously inspected and tested to meet strict standards before being securely packaged for shipment.
Q6: To order a display, what kind of information do I have to offer you?
A6: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
