P4.81 Outdoor Fixed LED Display Better Heat Dissipation IP65 For Sports Events

P4.81 Outdoor Fixed LED Display Better Heat Dissipation IP65 For Sports Events
Brand Name
VW
Product Model
P4.81
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:

P4.81 outdoor LED display

,

IP65 fixed LED screen

,

LED display for sports events
Product Name: P4.81 Outdoor Fixed LED Display Better Heat Dissipation IP65 For Sports Events
Pixel Pitch: 4.807mm
Module Size: 500*250mm
Cabinet Dimension: 1000*1000mm/1000*500mm/1000*750mm/1500*1000mm/1500*500mm
Cabinet Weight: 30kg/Cabinet
Maintenance: Front/Rear Service
IP Rating: IP65
Brightness: 4500/6000/9000nits
Product Description
Detailed Specifications And Features
P4.81 Outdoor Fixed LED Display with Better Heat Dissipation IP65 For Sports Events
Product Overview

The P4.81 Outdoor Fixed LED Display delivers reliable high performance with robust installation design. Featuring a hub connection to minimize failure rates and a 500 x 250mm aluminum backplate for structural integrity and enhanced thermal management, this display supports both front and rear maintenance. With IP65 waterproof rating and 2+1 power connector to prevent overheating, it's ideal for demanding outdoor environments. Optional smart modules with common cathode or anode configurations provide additional flexibility for diverse applications.

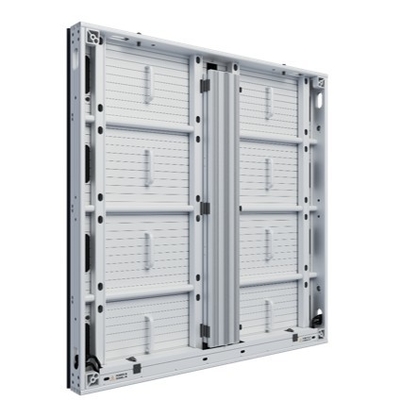

P4.81 Outdoor Fixed LED Display Better Heat Dissipation IP65 For Sports Events 0
Key Features
  • Waterproof: Durable aluminum cabinet with IP65 protection for outdoor use, featuring rapid heat dissipation
  • Front & Rear Service: Wall-mountable design with full maintenance access from both sides, saving installation space
  • Superior Heat Dissipation: Aluminum base maintains temperatures 10°C lower than plastic alternatives after continuous operation
  • Wide Viewing Angles: 140° horizontal and vertical viewing angles ensure clear visibility from various positions
  • 2+1 Power Design: Anti-reverse insertion mechanism protects against incorrect connections while ensuring stable power delivery
Technical Specifications
Item P4.81
Pixel Pitch 4.807mm
Module Size 500*250mm
Cabinet Dimension Multiple configurations available (1000*1000*90mm, 1000*500*90mm, etc.)
LED Type SMD1921
Scan Mode 1/13;1/7
Cabinet Material Aluminum Profile
Cabinet Weight 30kg/cabinet
Brightness 4500/6000/9000nits
Power Consumption 630/220w/m²
Maintenance Front/Rear Service
IP Rating IP65
Refresh Rate ≥3840Hz
Viewing Angle H:140°; V:140°
Operational Temp ﹣20~50℃
Operational Humidity 10%~90%RH
Applications
  • Outdoor creative installations
  • Building entrances and facades
  • Park and swimming pool displays
  • Advertising billboards
  • Sports fields and stadiums
  • Outdoor event areas
  • Roadside digital signage

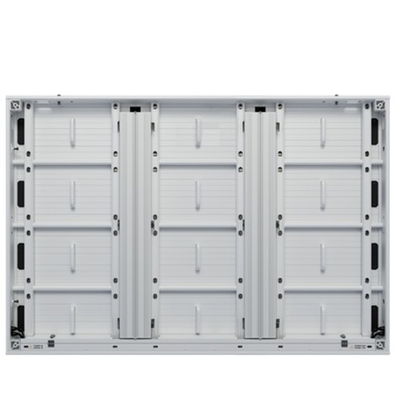

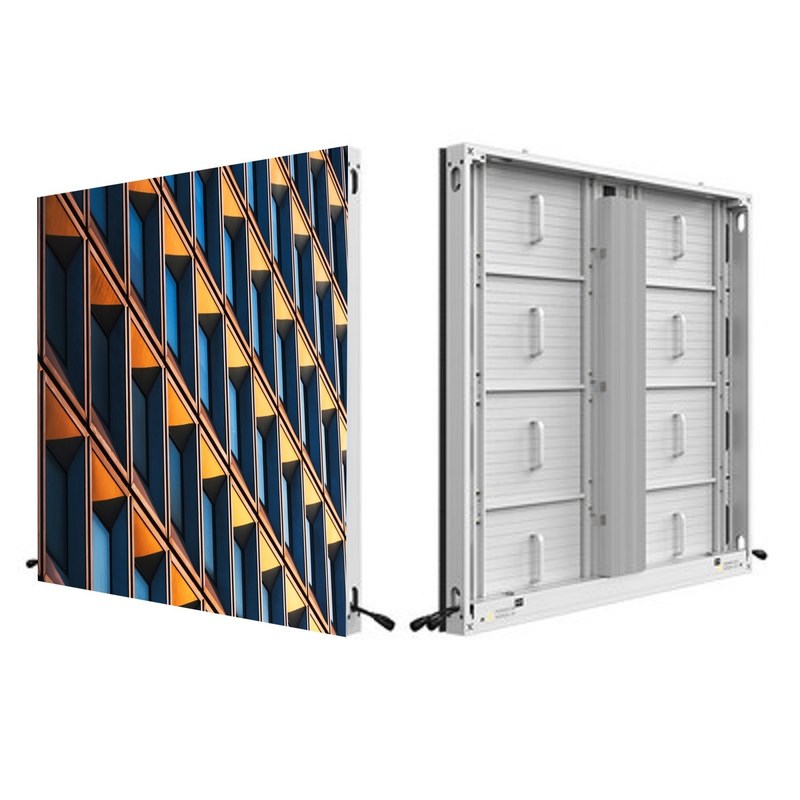

P4.81 Outdoor Fixed LED Display Better Heat Dissipation IP65 For Sports Events 1 P4.81 Outdoor Fixed LED Display Better Heat Dissipation IP65 For Sports Events 2
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to evaluate quality, whether for individual modules or complete screens. Mixed samples are acceptable.
Q2: How can we guarantee quality?
A2: We maintain stable, reliable quality through professional customer service, competitive pricing, and efficient delivery. Each product undergoes rigorous inspection and testing before shipment.
Q3: Do you have any MOQ limit for LED display orders?
A3: Quality is our priority. All products are thoroughly assembled, inspected, and tested to meet strict standards before secure packaging and shipment.
Q4: Is logo customization available?
A4: Yes, we offer logo customization. Share your design and we'll confirm details before production. Please inform us before production begins.
Q5: What payment methods do you accept?
A5: We accept T/T, Western Union, PayPal, and credit cards.
Q6: What is the warranty period?
A6: All products come with a two-year warranty.
Q7: What information is needed to order a display?
A7: Please provide display dimensions, primary use, viewing distance, installation photos, and any special requirements for a detailed quotation.
