P3.9 Holographic Transparent LED Film Display 6kg/sqm Rear Service 85% Transparency
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T,L/C,D/A,D/P |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 Holographic Transparent LED Film Display 6kg/sqm Rear Service 85% Transparency | Brightness: | 1000-5000nits |
|---|---|---|---|
| Waterproof: | IP42 | Led Type: | SMD1415 1R1PG1PB UV |
| Driving Method: | Static | Transparent Rate: | 70% |
| Maintenance: | Rear Service | Cabinet Size: | 600/1200/1800x500/600/700/800mm |
| Cabinet Material: | Aluminum+PCB | Panel Weight: | 6 Kg/sqm |
| Highlight: | P3.9 transparent LED display,holographic LED film display,indoor transparent LED screen |
||
Product Description
P3.9 Holographic Transparent LED Film Display 6kg/sqm Rear Service 85% Transparency
Product Description:

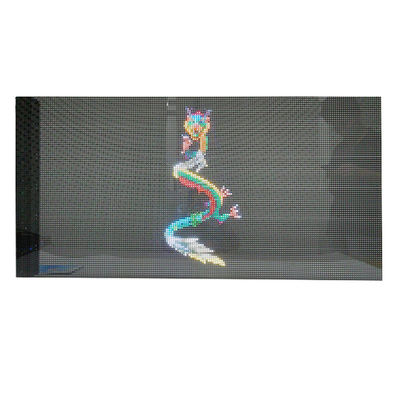

P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.
Features:
-
Transparent:Industry premiere,with no structural backbone；Real fully transparent；Permeability can reach 85%

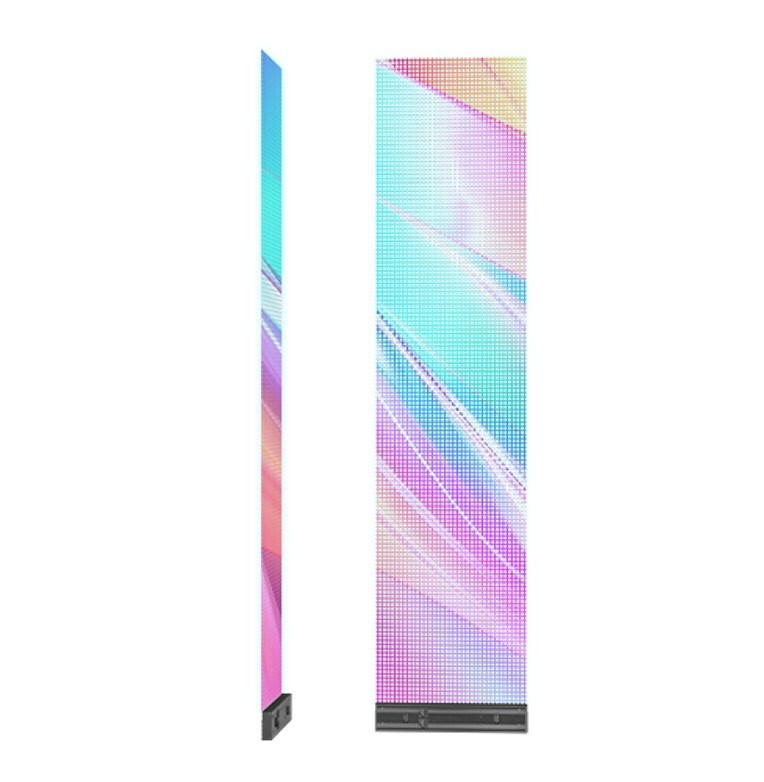

- Thin:Module thickness<6mm；Seamless curved surface mountingIntegrated seamlessly onto glass
- Foldable and arbitrarytransformation shape；Soft and bendable.lt can becustomized into different shapes according to different scenes, for example,triangles, ellipses, etc.
Technical Parameters:
| Pixel Pitch (H/V) | W:3.9;H:3.9mm | W:6.25;H:6.25mm |
| Module Size | 250x1000/250x1200/250x1500mm | |
| LED Configuration | SMD1415 1R1PG1PB UV | |
| Pixel Density | 65536dot/㎡ | 25600dot/㎡ |
| Transparency | 80% | 85% |
| Material | Case Aluminum+PCB 1.8mm | |
| Maintenance | Rear | |
| Driving Type | Static | |
| Control Method | Synchronous/Asynchronous | |
| Viewing Distance | > 4m | > 6m |
| Cabinet Weight | 6kg/㎡ | |
| IP Rating ( front/back) | IP20 | |
| Brightness | 2000-3000 nits | |
| Viewing Angle (H/V) | H:160°；V:160° | |
| Refresh Rate | 3840 Hz | |
| Gray Scale | 16 bit | |
| Max/Avg Power | 800/280 W/m² | |
| Environment | indoor | |
| Operational Temp | -20℃~+60℃ | |
| Operational Humidity | 10%~90% RH | |
| Operating Life | 100,000hours | |
Applications:
-
Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.
-
Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.
-
Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.
-
Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.
FAQ:
Q1: Are you a manufacturer or trading company?
Q2: How to install?

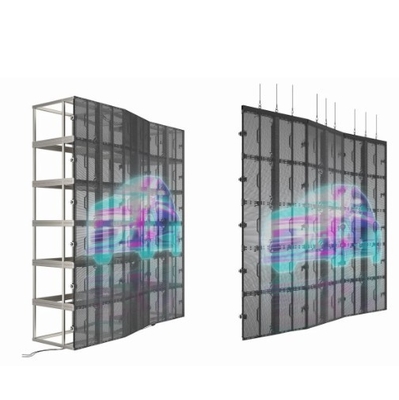

- Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use;
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Q3: What about your quality?
- The lamp beads used in our LED display are all genuine lamp beads. We are do not need to be used scattered lights and tail lights.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q4: What about the warranty?
- Calculated from the goods to the customer, the warranty period is 3 years, don’t worry, there is a problem with the module, you can send it back to us for repair.
Q5:What's your after-sale service?
-lf any problems, you will get our reply within 24 hours. Solution will be offered instantly.
Q6:Can the product system be customized with models?
-Yes, support customization.
