P3.91 Outdoor Fixed LED Display IP65 Waterproof SMD1921 For Commercial display
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.91 Outdoor Fixed LED Display IP65 Waterproof SMD1921 For Commercial Display | Pixel Pitch: | 3.906mm |
|---|---|---|---|
| Module Size: | 500*250mm | Cabinet Dimension: | 1000*1000mm/1000*500mm/1000*750mm/1500*1000mm/1500*500mm |
| Cabinet Weight: | 30kg/Cabinet | Maintenance: | Front/Rear Service |
| IP Rating: | IP65 | Brightness: | 4500/6000/9000nits |
| Highlight: | P3.91 outdoor LED display,IP65 waterproof LED screen,commercial SMD1921 LED display |
||
Product Description
P3.91 Outdoor Fixed LED Display IP65 Waterproof SMD1921 For Commercial Display

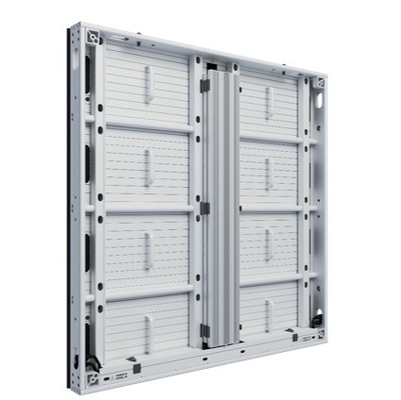

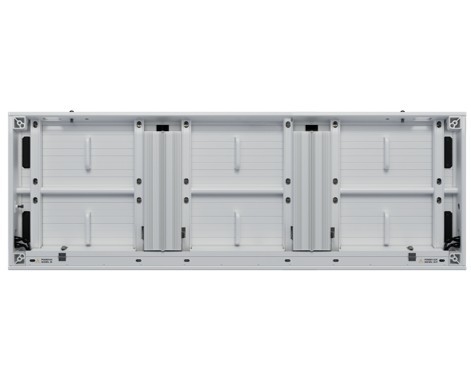

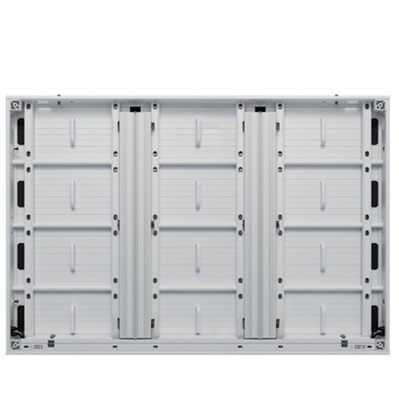

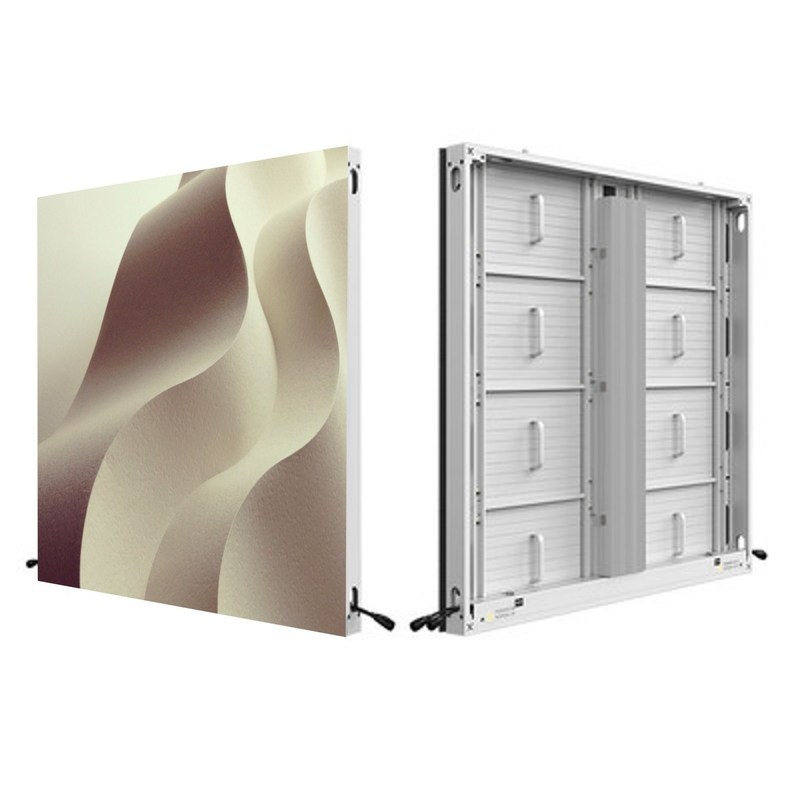

The P3.91 Outdoor Fixed LED Display ensures reliability and high performance with its robust installation design, employing a hub connection to reduce failure rates and a 500×250mm aluminum backplate to prevent deformation while enhancing thermal management. It enables both front and rear maintenance, includes an IP65 waterproof rating, and integrates a 2+1 power connector to avoid overheating risks. Optional smart modules with common cathode or anode configurations further extend adaptability for varied application demands.
Key Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
- Front & Rear Service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- Better Heat Dissipation: After one hour of white balance illumination, the aluminum base demonstrates superior heat dissipation, registering a temperature 10 degrees lower than a plastic base.
- Wide Viewing Angles: Horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- 2+1 Power: Features a built-in anti-reverse insertion mechanism to avoid damage from incorrect connections, precisely meets current load requirements for stable power delivery, and ensures safe, reliable module operation.
Technical Specifications
| Item | P3.91 |
|---|---|
| Pixel Pitch | 3.906mm |
| Module Size | 500*250mm |
| Cabinet Dimension | 1000*1000*90mm/1000*500*90mm/1000*750*90mm/1500*1000*90mm/1500*500*90mm |
| LED Type | SMD1921 |
| Scan Mode | 1/16;1/8 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 30kg/cabinet |
| Brightness | 4500/6000/9000nits |
| Power Consumption | 630/220w/m2 |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity | 10%~90%RH |
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Do you have any MOQ limit for LED display order?
A1: Low MOQ, 1 square meter or a module checking is available.
Q2: Can you accept a sample order?
A2: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen. Mixed samples are acceptable.
Q3: Does there have any warranty?
A3: Yes, a two-year warranty for all products.
Q4: Is it OK to print my logo on the products?
A4: Yes, we offer logo customization. Simply share your logo design, and our team will confirm the details with you before proceeding with production.
Q5: What is the payment term?
A5: We accept T/T, Western Union, PayPal, Credit card etc.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment. The lamp beads used in our LED display are all genuine. We do not need to use scattered lights and tail lights.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
