P10.4 Outdoor Fixed LED Display SMD2727 Black led IP65 For Advertising Billboard
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P10.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P10.4 Outdoor Fixed LED Display SMD2727 Black Led IP65 For Advertising Billboard | Pixel Pitch: | 10.41mm |
|---|---|---|---|
| Module Size: | 500*250*14mm | Cabinet Size: | 500*1000*87mm |
| Brightness: | 7500CD/m² | IP Rating: | IP65 |
| Maintenance: | Front/Back | Material: | Aluminum Profile |
| Highlight: | P10.4 outdoor LED display,SMD2727 LED billboard screen,IP65 waterproof fixed LED display |
||
Product Description

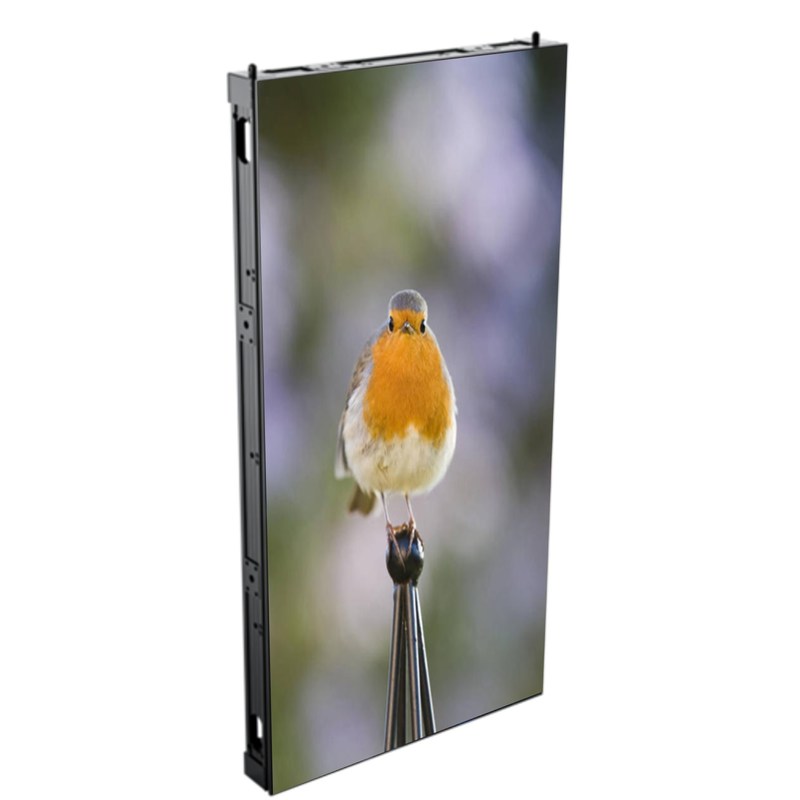

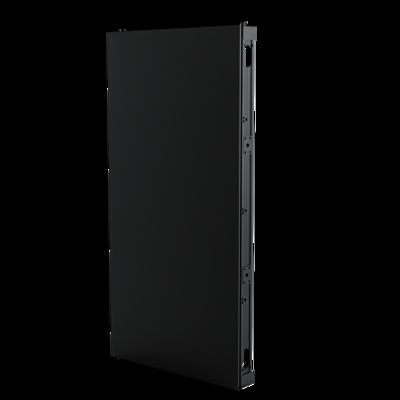

P10.4 Outdoor Fixed LED Display SMD2727 Black led IP65 For Advertising Billboard

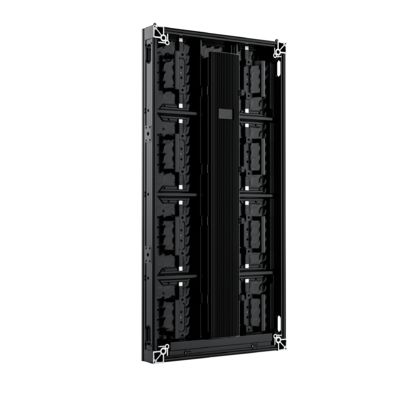

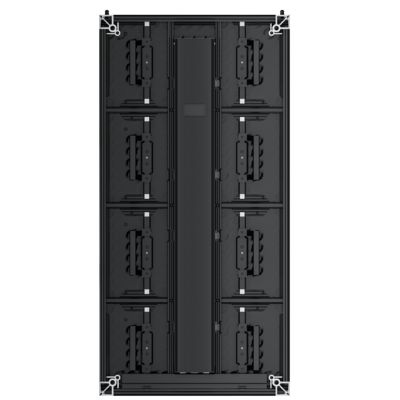

The high-precision aluminum cabinet boasts an ultra-slim 87mm profile and lightweight 19.5kg (500×1000mm) build, enabling flexible mixing of 500×1000mm and 500×750mm cabinets for custom configurations with unified control. A push-button lock allows 5-second assembly, with optional arc locks for curved setups. Fanless operation ensures ≤40dB silence, while point-by-point calibration guarantees pixel uniformity. The 3840Hz refresh rate eliminates shutter shadows, providing broadcast-grade visuals for stages and conferences.
Features
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.
- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Parameters
| Item | Specification Parameter |
|---|---|
| PixelPitch | 10.41mm |
| Resolution rate | 48*24mm |
| Module Size | 500*250*14mm |
| Pixel color | 1R1G1B |
| Pixel LED | SMD2727 Black led |
| Working voltage | DC4.6V |
| Module Power | ≤60W |
| Driving IC | ICN2055 |
| Drivingway | 1/2 |
| HUB | HUB(AXS-500X1000-PRO)-V1.0 |
| Material | Aluminum profile |
| Cabinet Weight (kg/Cabinet) | 19.5kg |
| Resolution rate | 48*96Dots |
| Cabinet Size | 500*1000*87mm |
| Module quantity | 1*4 |
| Density | 9216 Dots/㎡ |
| Brightness | 7500CD/m² |
| Color temperature | 6000K-8000K |
| View Angel | H/V:120°/120° |
| Non-Flatness | ＜0.2mm |
| Module Interval | ＜0.2mm |
| Maximal power/㎡ | ≤520W/㎡ |
| Average Power/㎡ | ≤160W/㎡ |
| Frame frequency | 60Hz |
| Refresh Frequency | 3840Hz |
| Gray Grade | ≥13bit |
| Working temperature | -20~50℃ |
| Protection grade | IP65 |
| Maintainace | Front/Back |
*Reference information, different configurations, different parameters
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen. Mixed samples are acceptable.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: Is it OK to print my logo on the products?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: Low MOQ, 1 square meter or a module checking is available. And the price is negotiable for large quantities.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
