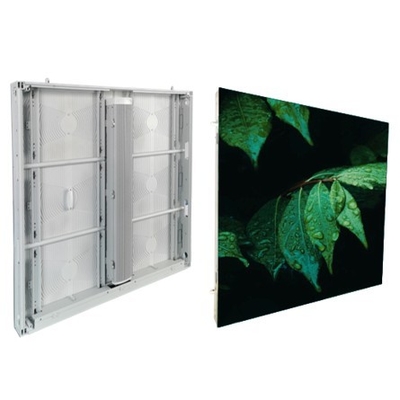

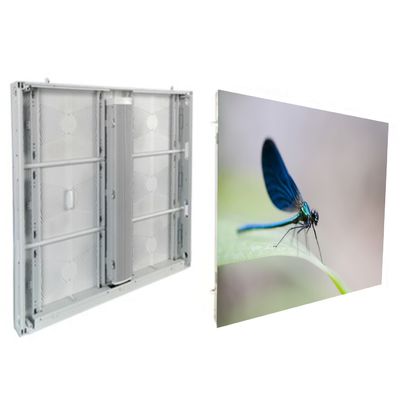

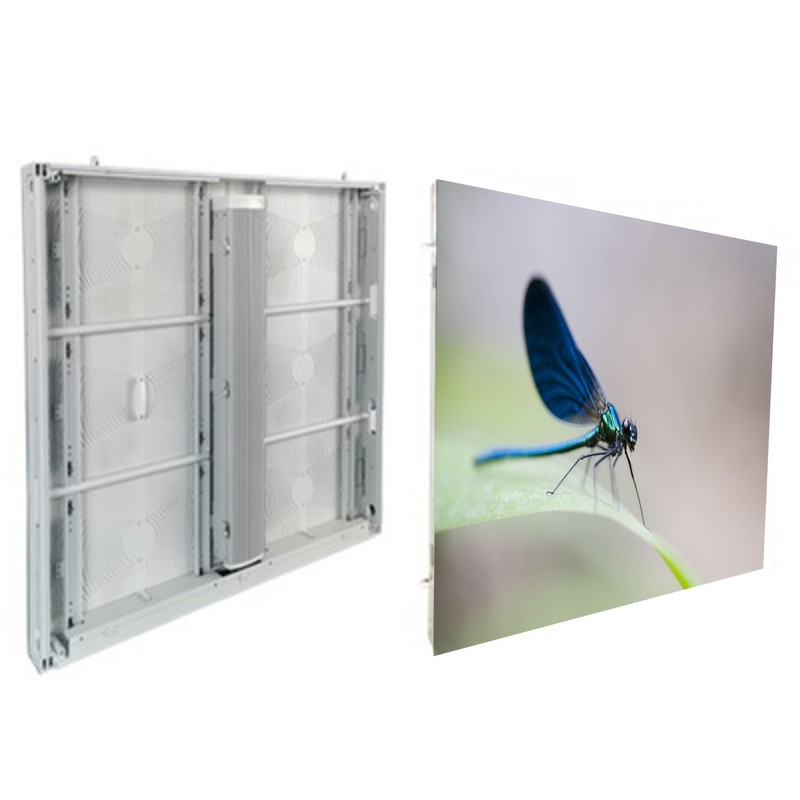

P5.7 Outdoor Fixed LED Display Aluminum Profile IP65 For Advertising Billboard
P5.7 Outdoor Fixed LED Display Aluminum Profile IP65 For Advertising Billboard
Brand Name
VW
Product Model
P5.7
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T,L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:
P5.7 outdoor LED display
,aluminum profile LED screen
,IP65 waterproof LED billboard
Product Name:
P5.7 Outdoor Fixed LED Display Aluminum Profile IP65 For Advertising Billboard
Pixel Pitch:
5.7mm
Module Size:
480*320mm
Cabinet Dimension:
960x960x77mm
Cabinet Weight:
28kg
Maintenance:
Front/Rear Service
IP Rating:
IP65
Brightness:
>6500nits
Product Description
Detailed Specifications And Features
P5.7 Outdoor Fixed LED Display Aluminum Profile IP65 For Advertising Billboard

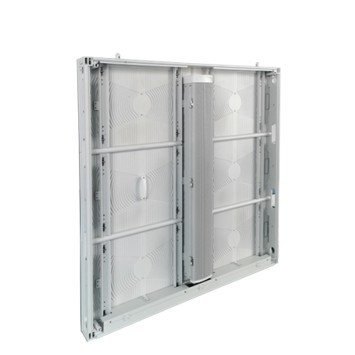

The P5.7 Outdoor Fixed LED Display complies with TUV 5VB fireproof certification and integrates an aluminum chassis with IP65 multi-layer waterproof protection for dual safety assurance. Its all-aluminum dense heat sink and partial voltage power supply ensure low-temperature operation and prolonged durability. The hard-wired structure guarantees physical stability, while the slim 77mm thickness and lightweight 32kg/m² design facilitate wall mounting and front/back maintenance. The module's left/right interchangeable feature further minimizes operational and maintenance expenses.
Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor using.
- Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- High brightness: Customized module PCB and designated power supply make it up to 6500nits brightness.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
| Item | P5.7 | P6.67 | P8 | P10 |
|---|---|---|---|---|
| Pixel Pitch | 5.7mm | 6.67mm | 8mm | 10mm |
| Module Size | 480*320mm | |||
| Cabinet Size | 960*960*77mm | |||
| Working Voltage | 3.2/4.2V | |||
| Scan Mode | 1/7 | 1/6 | 1/4 | 1/2 |
| Cabinet Material | Aluminum Profile | |||
| Cabinet Weight | 28kg/cabinet | |||
| Brightness | >6500nits | |||
| Power Consumption | 650/228w/m2 | 540/2189w/m2 | 650/228w/m2 | 650/228w/m2 |
| Maintenance | Front/Rear Service | |||
| IP Rating | IP65 | |||
| Refresh Rate | ≥3840Hz | |||
| Viewing Angle | H:140°; V:140° | |||
| Operational Temp | ﹣20~50℃ | |||
| Operational Humidity | 10%~90%RH | |||
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Do you have any MOQ limit for LED display order?
A1: Low MOQ, 1 square meter or a module checking is available. And the price is negotiable for large quantities.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment. The lamp beads used in our LED display are all genuine. We do not need to use scattered lights and tail lights. Using silver-containing solder paste, pure copper cords, and short cables, a good screen is our commitment to every customer.
Q3: What's your delivery time?
A3: 7-15 days according to order quantity and season.
Q4: Any certificate?
A4: Our products have Patent no, CE and ROHS certification, please contact us if you need other certifications.
Q5: What is the payment term?
A5: We accept T/T, Western Union, PayPal, Credit card etc.
Q6: How long is the warranty?
A6: One year, two years, three years warranty or life long after service. Normal warranty 1 year, any special requests please contact us.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
