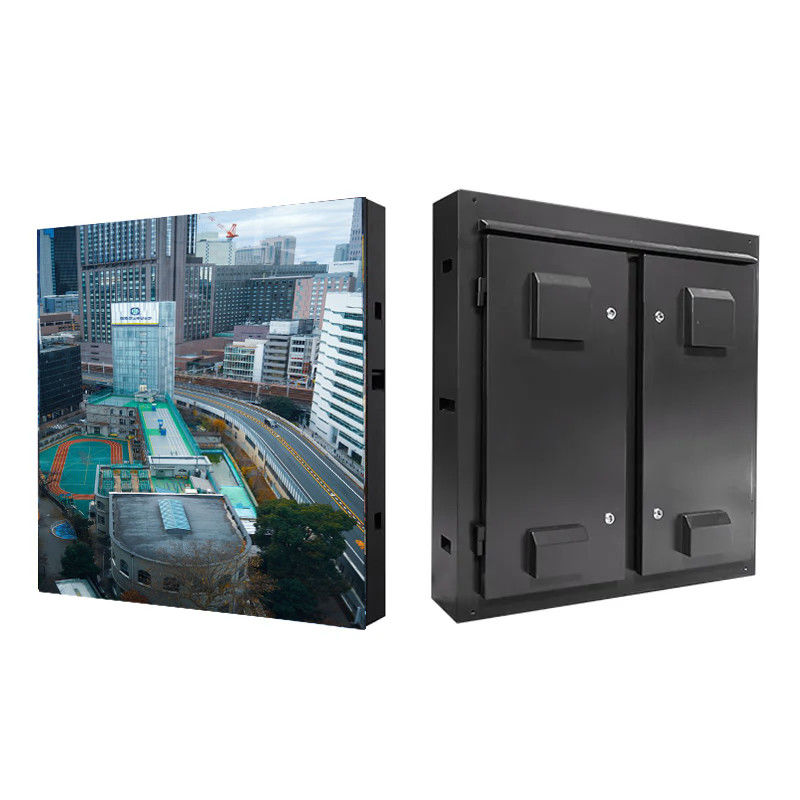

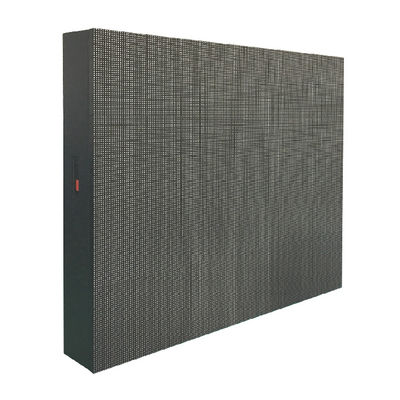

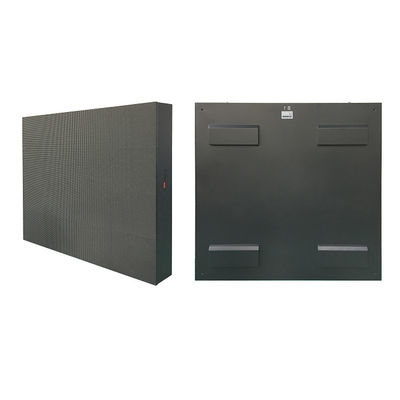

P6.67 Outdoor Fixed LED Screen 5000nits 960x960mm Waterproof IP65 Rear Service
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed Led Screen 5000nits 960x960mm Waterproof IP65 Rear Service | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
| Highlight: | P6.67 outdoor LED screen waterproof,fixed LED display 5000nits brightness,IP65 rear service LED panel |
||
Product Description
P6.67 Outdoor Fixed LED Screen 5000nits 960x960mm Waterproof IP65 Rear Service
Product Description
Fixed LED display screen refers to the LED display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation LED displays.
Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor using.
- Front service: The cabinet and module have compatible front locks design which allows technicians to do front maintenance effortless.
- High brightness: Customized module PCB and designated power supply make it up to 6000nits brightness.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
| Product Model: | P6.67 |
|---|---|
| Pixel Pitch: | 6.67mm |
| LED Type: | SMD3535 |
| Cabinet Dimension: | 960x960mm |
| Module Size: | 320×160mm |
| Maintenance: | Rear service |
| Cabinet Weight: | 38 kg |
| Cabinet Material: | Steel |
| Driving Type: | 1/6 |
| Brightness: | 5500 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Environment: | Outdoor |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting /Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | Outdoor |
| Operational Humidity: | 10%~90% RH |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A1: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display. Pixel pitch is smaller, LED display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: Can I order a sample?
A5: Yes, We welcome customers to order samples to check our product quality of our products and service.
