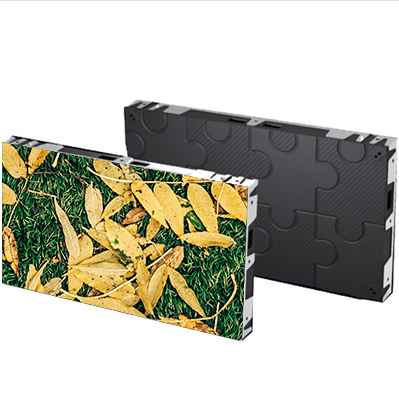

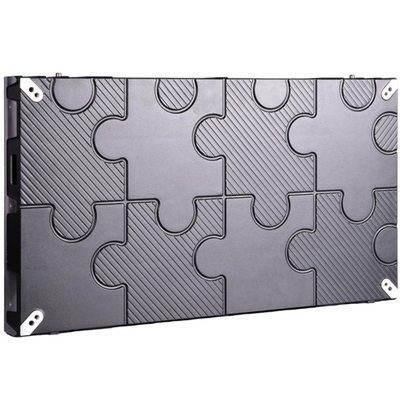

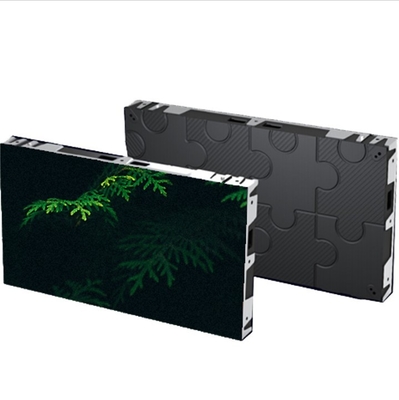

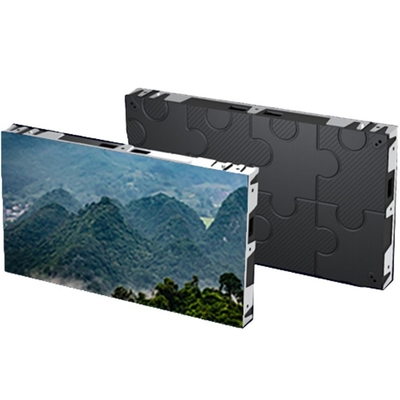

P1.875 COB Small Pixel Pitch LED Display 5.5 kg Cabinet 600×337.5mm For Indoor
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | FP1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.875 COB Small Pixel Pitch LED Display 5.5 Kg Cabinet 600×337.5mm For Indoor | Pixel Pitch: | 1.875mm |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Size: | 600×337.5×58 Mm |
| Maintenance: | Front Service | Brightness: | 600 Nits |
| Cabinet Weight:: | 5.5kg | IP Rating: | F: IP30, R: IP45 |
| Highlight: | P1.875 COB LED display indoor,small pixel pitch LED display 600×337.5mm,lightweight COB LED display 5.5 kg |
||
Product Description
The P1.875 COB Small Pixel Pitch LED Display delivers exceptional visual performance with ultra-fine detail and vibrant color reproduction. Its optimized 16:9 aspect ratio ensures broad viewing angles and comfortable immersion for all audiences. The integrated control system simplifies operation, while the full front-access maintenance design enables effortless servicing--keeping the display at peak performance with minimal downtime.
- The full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance, preventing LED screens from blinding or experiencing failures due to dampness in high-humidity and salt-spray conditions.
- The module features 3D ink printing technology, enhancing contrast by 20% and lowering display brightness requirements. It supports an LCD status display panel for intuitive real-time monitoring of cabinet operations.
- The module's PCB utilizes an HDI multi-layer circuit board design, ensuring good color uniformity and even temperature distribution.
- The entire series incorporates Sunrise's energy-efficient common cathode chip, delivering higher performance with grayscale levels up to 16-bit.
| Product Model | FP1.875 |
|---|---|
| Pixel Pitch | 1.875mm |
| LED Type | SMD1515 |
| Cabinet Dimension | 600x337.5x58mm |
| Module Size | 300x168.75 mm |
| Cabinet Weight | 5.5 kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type | 1/45 |
| Brightness | 600 nits |
| Max/Avg Power | 450/135 W/m² |
| Maintenance | Front service |
| Environment | Indoor Use |
| IP Rating | F: IP30, R: IP45 |
| Refresh Rate | >3840 Hz |
| Installation Type | Mounting/Hanging |
| Gray Scale | 14 bit |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%~90% RH |
- Digital Signage system
- Chain store
- Billboard
- Perimeter LED poster
- Arena display, etc.
Full-service support throughout the process.
- Pre-sales: we offer detailed production instructions and professional installation guidance.
- Sales: we provide customized solutions, visual designs, and project showcases.
- After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
A1: Yes, the sample order is acceptable for quality check and market test.
A2: Screen size can be customized based on your demand.
A3: A two-year warranty for all products.
A4: We prioritize quality at every stage of production. Our rigorous quality control processes include stringent component selection, advanced manufacturing techniques, and comprehensive testing. Before shipment, each LED floor display undergoes a meticulous final inspection to ensure it meets our exacting standards.
A5: We promise to provide professional after-sale technical support within 24 hours after receiving the customer's notice.
