P3.9 Outdoor Fixed LED Display Lightweight Aluminum 29kg 6000nits Full Front Access
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P3.9 Outdoor Fixed LED Display Lightweight Aluminum 29kg 6000nits Full Front Access | Pixel Pitch: | 3.9mm |
|---|---|---|---|
| Cabinet Material: | Aluminum Profile | LED Type:: | SMD1921, 3 In 1 |
| Cabinet Size: | 1000x1000mm | Module Size: | 500x250mm |
| Cabinet Weight: | 29kg/sqm | Brightness: | 6000nits |
| Highlight: | P3.9 outdoor LED display,lightweight aluminum LED screen,6000nits outdoor fixed display |
||
Product Description

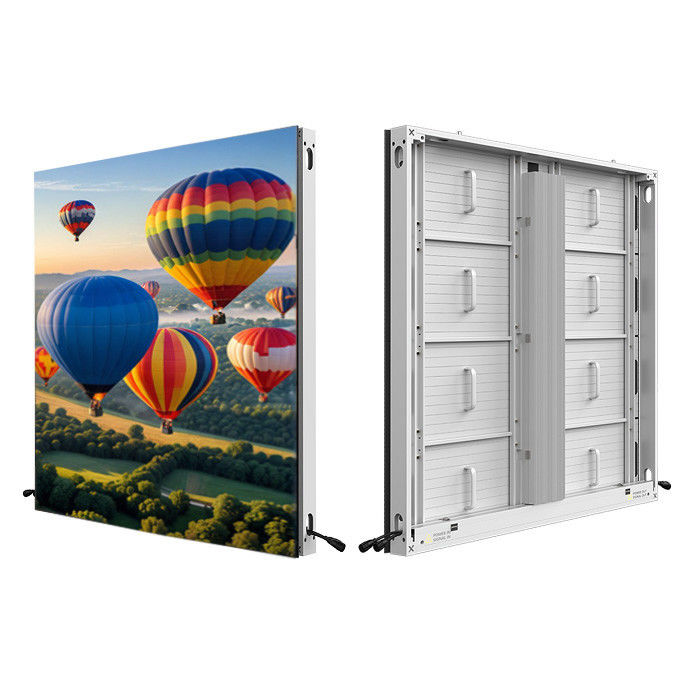

P3.9 Outdoor Fixed LED Display Lightweight Aluminum 29kg 6000nits Full Front Access
Product Description
The P3.9 Outdoor Fixed LED Display comes in a rugged 1000 x 1000mm enclosure and is designed to provide a top-notch visual experience in outdoor environments. This advanced display solution has been designed with a focus on long-lasting performance and lifelike, vivid images, making it ideal for applications requiring high visibility and resilience.
Features

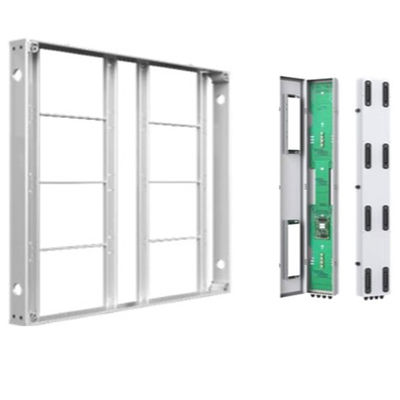

- Portable and cost-effective: The LED cabinet is made of lightweight aluminum, weighing approximately 29kg per square meter, which helps reduce shipping expenses.
- Efficient thermal management: The fanless design, combined with the aluminum base of the module, ensures effective heat dissipation.

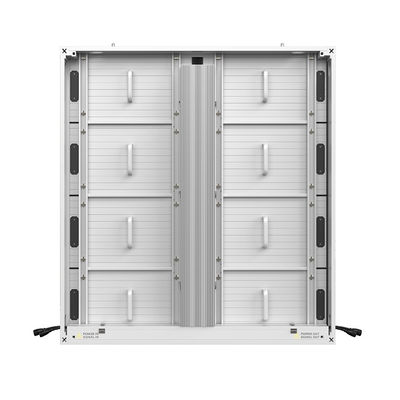

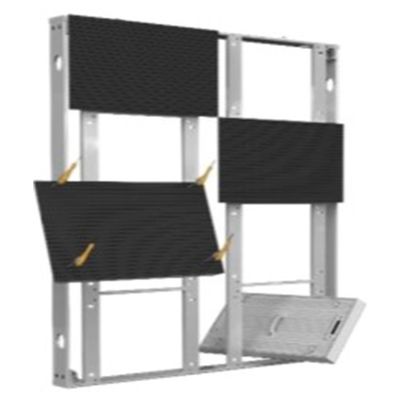

- Easy front access: The display offers 100% full front maintenance, allowing for easy removal and servicing of the LED module and power box from the front side.
- Sleek and compact: With a cabinet thickness of just 90mm, this ultra-slim design is perfect for space-saving installations.
Technical Parameters
| Technical Parameters | Outdoor Fixed LED Display Screen |
|---|---|
| Product Model: | P3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×1000x90 mm |
| Module Size: | 500x250 mm |
| Cabinet Weight: | 29 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/8; 1/16 |
| Brightness: | >6000 nits |
| Max/Avg Power: | 800/265 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | F: IP65, R: IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Applications
Widely used in stage rental, song, and dance activities, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance halls, disco bars, nightclubs, high-end entertainment disco, TV Spring Festival Gala, important cultural activities in various provinces and cities and other places.
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A1: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: Can I order a sample?
A5: Yes, We welcome customers to order samples to check our product quality of our products and service.
