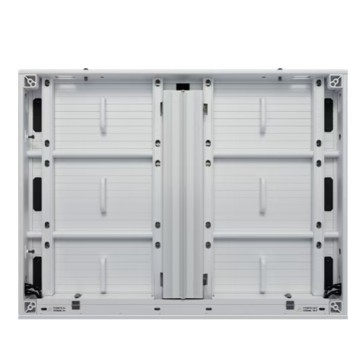

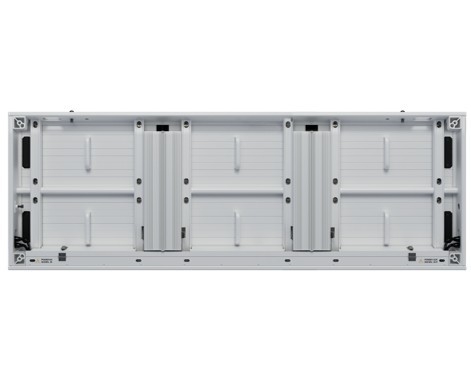

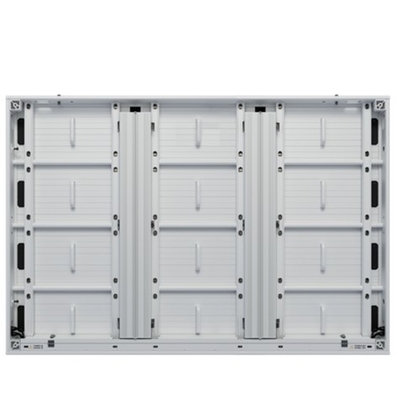

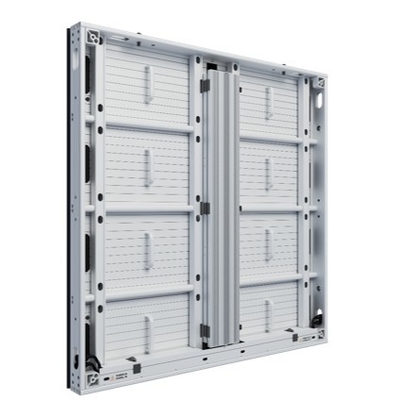

P4.81 Outdoor Fixed LED Display Aluminum Profile IP65 Advertising Billboard
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P4.81 Outdoor Fixed LED Display Aluminum Profile IP65 Advertising Billboard | Pixel Pitch: | 4.807mm |
|---|---|---|---|
| Module Size: | 500*250mm | Cabinet Dimension: | 1000*1000mm/1000*500mm/1000*750mm/1500*1000mm/1500*500mm |
| Cabinet Weight: | 30kg/Cabinet | Maintenance: | Front/Rear Service |
| IP Rating: | IP65 | Brightness: | 5000nits |
| Highlight: | P4.81 outdoor LED display,aluminum profile LED billboard,IP65 waterproof advertising display |
||
Product Description
P4.81 Outdoor Fixed LED Display Aluminum Profile IP65 Advertising Billboard
The P4.81 Outdoor Fixed LED Display integrates reliability and high performance through its robust installation design. Its hub connection minimizes failure rates, while the 500 x 250mm aluminum backplate resists deformation and enhances thermal management. Supporting both front and rear maintenance, it features an IP65 waterproof rating and a 2+1 power connector to prevent overheating damage. Optional smart modules with common cathode or anode configurations provide additional adaptability for diverse application needs.
Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
- Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- Better Heat Dissipation: After one hour of white balance illumination, the aluminum base demonstrates superior heat dissipation, registering a temperature 10 degrees lower than a plastic base.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- 2+1 Power: The 2+1 power connector design features a built-in anti-reverse insertion mechanism to avoid damage from incorrect connections, precisely meets current load requirements for stable power delivery, and ensures safe, reliable module operation even under fluctuating electrical conditions.
Technical Parameters
| Item | P4.81 |
|---|---|
| Pixel Pitch | 4.807mm |
| Module Size | 500*250mm |
| Cabinet Dimension | 1000*1000*90mm/1000*500*90mm/1000*750*90mm/1500*1000*90mm/1500*500*90mm |
| LED Type | SMD1921 |
| Scan Mode | 1/13;1/7 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 30kg/cabinet |
| Brightness | 4500/6000/9000nits |
| Power Consumption | 630/220w/m2 |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity | 10%~90%RH |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: Are you a factory or trading company?
A1: 100% factory. We have more than 10 years of manufacturing experience. OEM & ODM order is warmly welcomed.
Q2: Why purchase from Visual World?
A2: Stable and reliable quality, efficient and professional customer service, competitive factory price, fast delivery time.
Q3: What's your delivery time?
A3: 7-15 days according to order quantity and season.
Q4: Any certificate?
A4: Our products have Patent no,CE and ROHS certification, please contact us if you need other certifications.
Q5: What is the payment term?
A5: We accept T/T, Western Union, PayPal, Credit card etc.
Q6: How long is the warranty?
A6: One year, two years, three years warranty or life long after service. Normal warranty 1 year, any special requests please contact us.
Q7: How to place an order?
A7: Kindly send us your inquiry or contact us online. Our sales representative online 24 hours.
