P2.85 Display Module Die-casting Aluminum 5000 nits IP67 For Outdoor Advertising
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, EMC, LVD, ROHS, FCC |
| Model Number: | P2.85 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | plywood case, carton box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P2.85 Display Module Die-casting Aluminum 5000 Nits IP67 For Outdoor Advertising | Pixel Pitch: | 2.85mm |
|---|---|---|---|
| LED Type: | SMD1415 | Maintenance: | Front Access |
| Brightness: | 5000 Nits | Refresh Rate: | 3840Hz |
| Module Material: | Die-casting Aluminum | Control System: | NovaStar |
| Highlight: | P2.85 outdoor LED display module,die-cast aluminum LED module,5000 nits IP67 display module |
||
Product Description

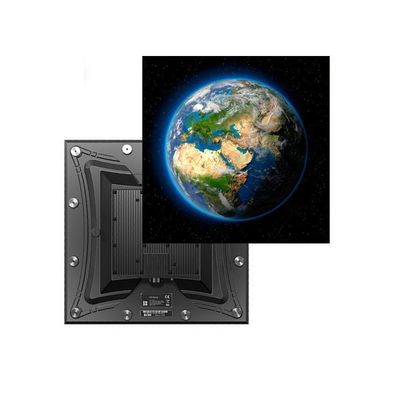

P2.85 Display Module Die-casting Aluminum 5000 nits IP67 For Outdoor Advertising
Product Description:
P2.85 Outdoor LED Display Module is designed to deliver exceptional visual performance in a variety of outdoor settings. With a pixel pitch of 2.85mm, this module ensures that images are displayed with high clarity and detail, capturing the attention of viewers from a distance.
This model is crafted with a die-casting aluminum cabinet, which is not only lightweight but also provides a high level of durability. The cabinet's design facilitates easy installation and integration into various structures, such as building facades or freestanding frames.
A key feature of this display is its high brightness of 5000 nits, which ensures that the screen remains visible and vivid even under direct sunlight. This is particularly beneficial for outdoor advertising, where the screen needs to compete with bright ambient light.
Features:

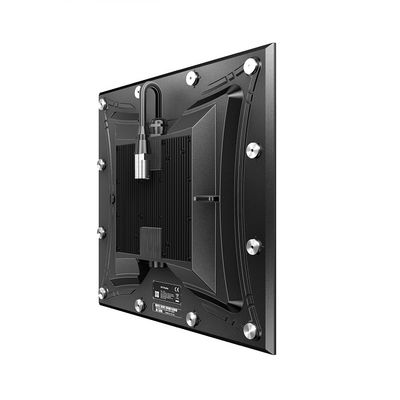

- Diecasting aluminum:Light and durable die-casting aluminum panel makes accurate assembling of corresponding hole position
- Front access:Magnetic led modules strongly connect to the module frame. Safety rope is optional to tighten the connection.
- Power box integration:The power supply, receiving card and hub board are simplied into a small power box. The module can work individually.

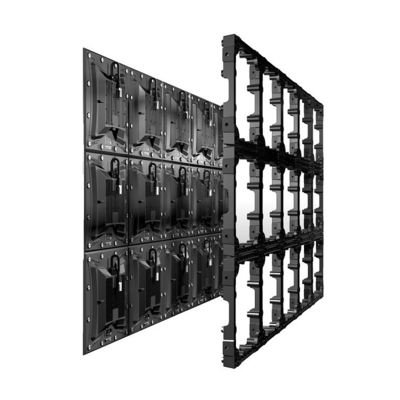

- Curved video wall:The 45° edges modules are compatible with simple customized metal cabinet by magnets, which allows the module to build curved led walls.
- 2-in-1 transmiting cable:Customized 2 in 1 cable allows the led screen to transmit the current and signal simultaneously.
Technical Parameters:
| Technical Parameters | Outdoor LED Display Module |
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1415 |
| Pixel Density: | 122500 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 112*112 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:160° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
Apllication:
This product can be used for advertising, informational displays, and even as a background for events and performances. With its high brightness and resolution, it can easily attract the attention of passersby and deliver your message effectively.
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 10-15 working days after confirm receipt payment in advance.
FAQ:
A1: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.
A2: It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
A5: Yes, We welcome customers to order samples to check our product quality of our products and service.
