P6.67 Outdoor Fixed LED Display Aluminum Profile 6500nits Advertising Billboard
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed LED Display Aluminum Profile 6500nits Advertising Billboard | Pixel Pitch: | 6.67mm |
|---|---|---|---|
| Module Size: | 480*320mm | Cabinet Dimension: | 960x960x77mm |
| Cabinet Weight: | 28kg | Maintenance: | Front/Rear Service |
| IP Rating: | IP65 | Brightness: | >6500nits |
| Highlight: | P6.67 outdoor LED display,aluminum profile LED billboard,6500nits fixed LED screen |
||
Product Description
P6.67 Outdoor Fixed LED Display Aluminum Profile 6500nits Advertising Billboard
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | P6.67 Outdoor Fixed LED Display Aluminum Profile 6500nits Advertising Billboard |
| Pixel Pitch | 6.67mm |
| Module Size | 480*320mm |
| Cabinet Dimension | 960x960x77mm |
| Cabinet Weight | 28kg |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Brightness | >6500nits |
Product Description

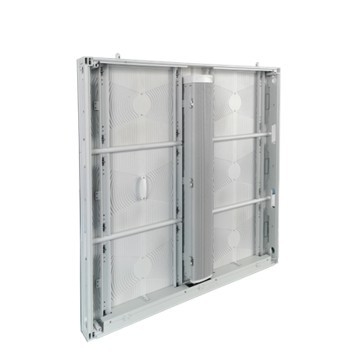

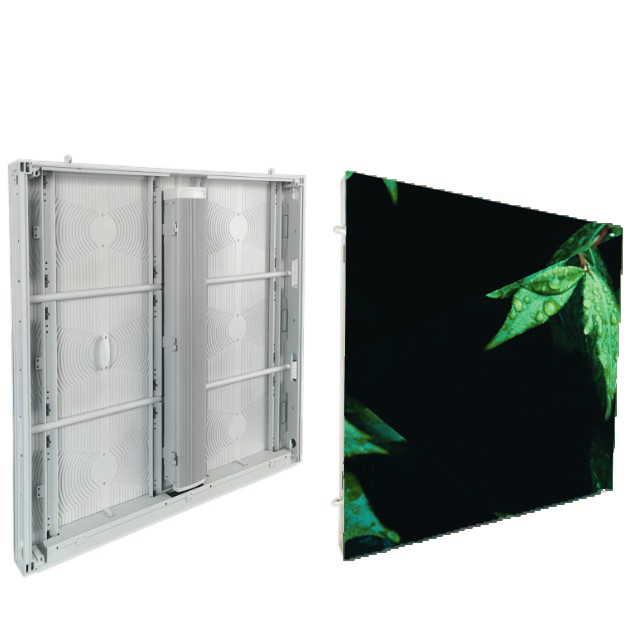

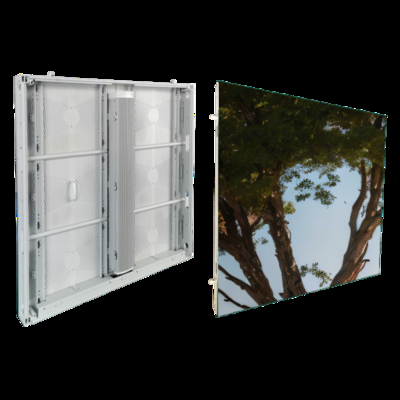

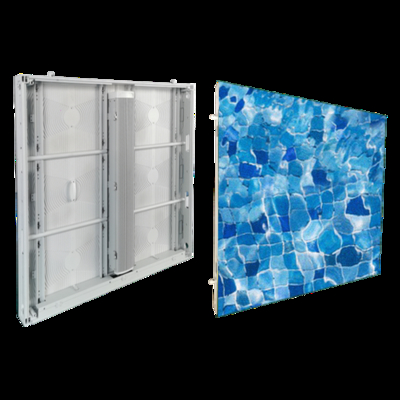

The P6.67 Outdoor Fixed LED Display complies with TUV 5VB fireproof certification and integrates an aluminum chassis with IP65 multi-layer waterproof protection for dual safety. Its all-aluminum dense heat sink and partial voltage power supply ensure low-temperature operation and prolonged durability. The hard-wired structure guarantees physical stability, while the slim 77mm thickness and lightweight 32kg/m² design facilitate wall mounting and front/back maintenance. The module's left/right interchangeable feature further minimizes operational and maintenance expenses.
Key Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
- Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- High brightness: Customized module PCB and designated power supply make it up to 6500nits brightness.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
| Item | P5.7 | P6.67 | P8 | P10 |
|---|---|---|---|---|
| Pixel Pitch | 5.7mm | 6.67mm | 8mm | 10mm |
| Module Size | 480*320mm | |||
| Cabinet Size | 960*960*77mm | |||
| Working Voltage | 3.2/4.2V | |||
| Scan Mode | 1/7 | 1/6 | 1/4 | 1/2 |
| Cabinet Material | Aluminum Profile | |||
| Cabinet Weight | 28kg/cabinet | |||
| Brightness | >6500nits | |||
| Power Consumption | 650/228w/m² | 540/2189w/m² | 650/228w/m² | 650/228w/m² |
| Maintenance | Front/Rear Service | |||
| IP Rating | IP65 | |||
| Refresh Rate | ≥3840Hz | |||
| Viewing Angle | H:140°; V:140° | |||
| Operational Temp | ﹣20~50℃ | |||
| Operational Humidity | 10%~90%RH | |||
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: 100% factory. We have more than 10 years of manufacturing experience. OEM & ODM order is warmly welcomed.
Q2: Why purchase from Visual World?
A2: Stable and reliable quality, efficient and professional customer service, competitive factory price, fast delivery time.
Q3: What's your delivery time?
A3: 7-15 days according to order quantity and season.
Q4: Any certificate?
A4: Our products have Patent no, CE and ROHS certification, please contact us if you need other certifications.
Q5: What is the payment term?
A5: We accept T/T, Western Union, PayPal, Credit card etc.
Q6: How long is the warranty?
A6: One year, two years, three years warranty or life long after service. Normal warranty 1 year, any special requests please contact us.
Q7: How to place an order?
A7: Kindly send us your inquiry or contact us online. Our sales representative online 24 hours.
Want to Know more details about this product
