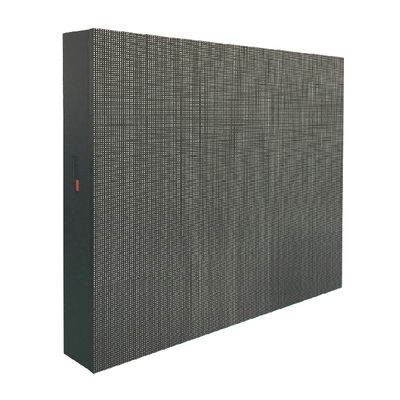

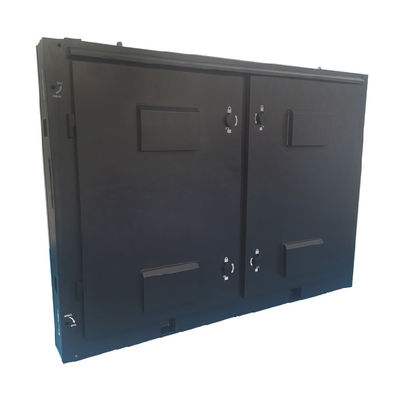

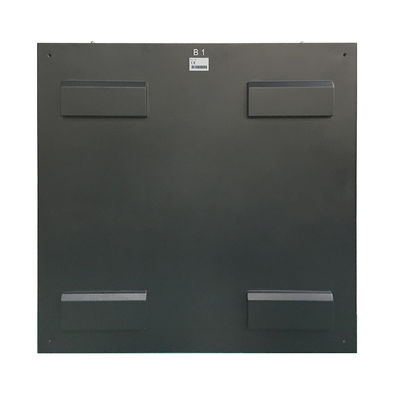

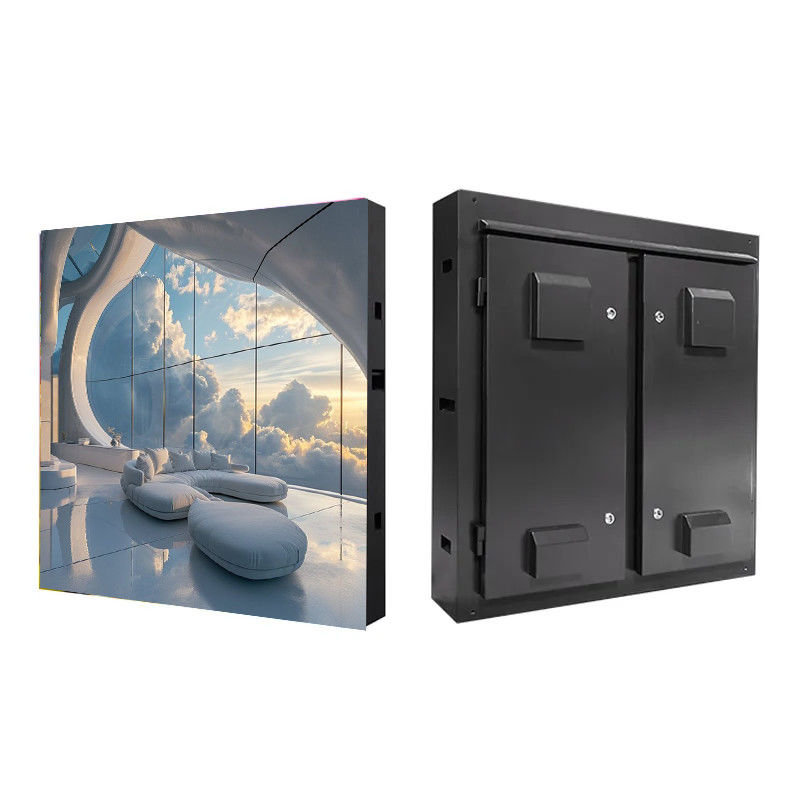

P6.67 Outdoor Fixed LED Display Rear Service 960x960mm Waterproof IP65 5500nits
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed LED Display Rear Service 960x960mm Waterproof IP65 5500nits | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
| Highlight: | P6.67 outdoor LED display waterproof IP65,fixed LED display screen 960x960mm,outdoor LED display 5500nits high brightness |
||
Product Description
P6.67 Outdoor Fixed LED Display Rear Service 960x960mm Waterproof IP65 5500nits
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | P6.67 Outdoor Fixed LED Display Rear Service 960x960mm Waterproof IP65 5500nits |
| LED Type | SMD3535 |
| Cabinet Dimension | 960x960mm |
| Chip Color | RGB full color |
| Pixel Density | 28224 dots/sqm |
| Maintenance | Rear service |
| Cabinet Weight | 38 kg |
| Application | outdoor wall mounting advertising video wall |
| Module Connection | Locks |
| Brightness | 5500 nits |
Product Description
Fixed LED display screen refers to the LED display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control.
Key Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
- Front service: The cabinet and module have compatible front locks design which allows technicians to do front maintenance effortlessly.
- High brightness: Customized module PCB and designated power supply make it up to 6000nits brightness.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
| Product Model: | P6.67 |
| Pixel Pitch: | 6.67mm |
| LED Type: | SMD3535 |
| Cabinet Dimension: | 960x960mm |
| Module Size: | 320×160mm |
| Maintenance: | Rear service |
| Cabinet Weight: | 38 kg |
| Cabinet Material: | Steel |
| Driving Type: | 1/6 |
| Brightness: | 5500 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Environment: | Outdoor |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting /Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | Outdoor |
| Operational Humidity: | 10%~90% RH |
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Are you a manufacturer or trade company?
A1: We are a professional OEM/ODM manufacturer with more than 10 years of professional experience in the LED display screen industry.
Q2: What can I get from you?
A2: LED module, LED display screen, LED display screen series products.
Q3: How about your warranty period?
A3: 1-3 years warranty structure design, installation issues, programming screens.
Q4: How to use LED screens?
A4: We have a complete technical team, with a dedicated technical engineer and sales manager assigned to each customer. From pre-sales to during-sales and after-sales, we provide 24/7 service to ensure that you can operate your LED display proficiently in the shortest time possible.
Q5: What other services can you provide for LED displays?
A5: As our customer, you will have a dedicated technical engineer and sales manager who will visit you offline 1 to 3 times per year, providing offline maintenance and guidance on the latest technologies for your products.
