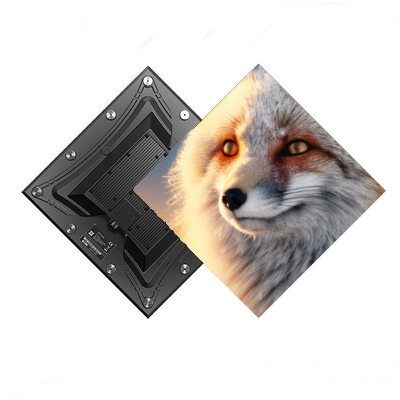

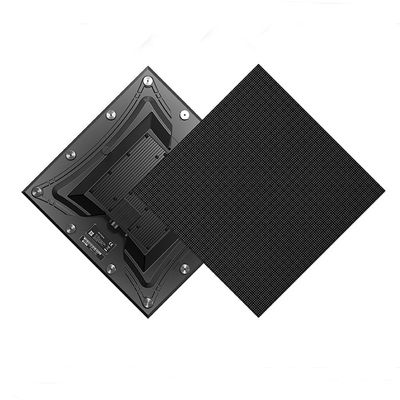

P4 Smart Outdoor Fixed LED Screen 5000nits Cabinet 320x320mm IP67 For Activity
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | SBO4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P4 Smart Outdoor Fixed LED Screen 5000nits Cabinet 320x320mm IP67 For Activity | Pixel Pitch: | 4mm |
|---|---|---|---|
| LED Type: | SMD1921 | Cabinet Material: | Aluminum |
| IP Rating:: | IP67 | Module/Cabinet Size: | 320x320mm |
| Maintenance: | Front Service | Brightness: | 5000nits |
| Highlight: | P4 outdoor LED screen 5000nits,IP67 waterproof LED display module,320x320mm fixed LED cabinet |
||
Product Description
P4 Smart Outdoor Fixed LED Screen 5000nits Cabinet 320x320mm IP67 For Activity
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | P4 Smart Outdoor Fixed LED Screen 5000nits Cabinet 320x320mm IP67 For Activity |
| Pixel Pitch | 4mm |
| LED Type | SMD1921 |
| Cabinet Material | Aluminum |
| IP Rating | IP67 |
| Module/Cabinet Size | 320x320mm |
| Maintenance | Front service |
| Brightness | 5000nits |
Product Overview
The P4 Smart Outdoor Fixed LED Screen delivers effortless and adaptable display integration through its lightweight yet robust construction, ensuring both durability and simplified installation. Designed with IP67-rated waterproof and salt-resistant protection, it performs reliably in challenging environments.
Technical Parameters
| Product Model | P2.85 | P4 | P6 |
|---|---|---|---|
| Pixel Pitch | 2.85mm | 4mm | 6.67mm |
| LED Type | SMD1415 | SMD1921 | SMD2727 |
| Cabinet Dimension(mm) | 320*320*53.5 | ||
| Module Size(mm) | 320*320 | ||
| Cabinet Weight | 15kg/sqm | ||
| Cabinet Material | Aluminum | ||
| Brightness | 4500nits | 5000nits | 7000nits |
| Max/Avg Power(m²) | 800/280w/m² | 1000/350w/m² | - |
| IP Rating | IP67 | ||
| Refresh Rate | >3840Hz | ||
Key Features
- LIGHTWEIGHT: Aluminum material, only 15kg/sqm, saving shipping costs.
- INTEGRATED DESIGN: Integrate power supply, receiving card, and module into one cabinet.
- WATERPROOF IP67: High protection level, waterproof and dustproof, VO grade fireproof material is used, safe and reliable.
- 45° BEVELEDGE DESIGN: 45° Beveledge design enables various shapes splicing.

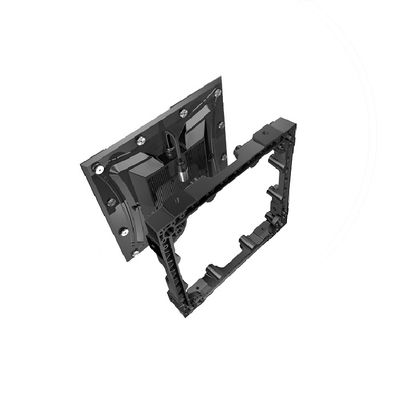

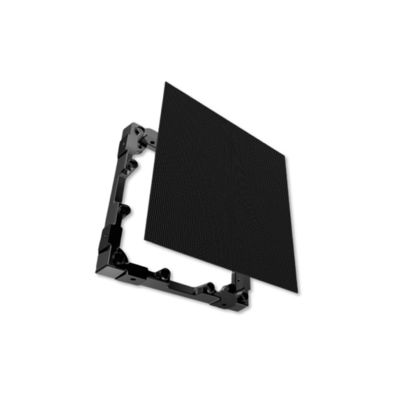

- MAGNET DESIGNED: With the magnetic design, installation and maintenance efficiency is dramatically improved, providing a minute-to-minute emergency repair solution for concerts and other time-critical scenarios.
Installation Options
- Wall mounted
- Cabinet type
- Floor standing
- Arc-shaped installation
- Hoisting
Applications
- Shopping Mall: Display mall directories, store locations, and ongoing promotions.
- Park Entrance: Greet visitors with welcome messages, provide park maps, and highlight key attractions.
- Gallery and Exhibition: Showcase digital art, videos, or high-quality images for captivating displays.
- Outlets Storefront: Highlight real-time deals, flash sales, and new product arrivals.
- Arc Video Wall: Curved, high-definition LED design creates visually immersive experiences.
Service and Support
Pre-Sale Service:
- Respond to inquiries within 24 hours
- Provide market research, forecasts, and tailored solutions
- Offer datasheets, samples, custom packaging design, and factory visits upon request
In-Sale Service:
- Monitor production and share photos/videos as requested
- Supply spare parts at no extra cost
After-Sale Service:
- Address complaints within 24 hours and resolve issues within 48 hours
- 24-month warranty included
- Free technician training and comprehensive documentation provided
Frequently Asked Questions
Q1: Do you provide a warranty for your products?
A1: Yes, we offer a 2-year warranty on all our products.
Q2: Is it possible to print my logo on the product?
A2: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q3: Can I place a sample order for the LED screen?
A3: Yes, we welcome sample orders for testing and quality checks. Mixed samples are also acceptable.
Q4: What is your delivery time?
A4: Generally, delivery takes 7-15 days after receiving your deposit. The specific delivery time depends on the order items and quantities.
Q5: What is the control system, and how does it work?
A5: We use the Nova Taurus Series asynchronous control system, which supports cluster play and management. It also allows control via APP, phone, Wi-Fi, iPad, laptop, PC, and cloud. This makes operation very easy and convenient.
