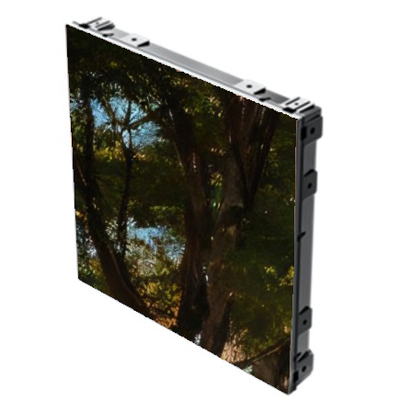

P1.56 Onyxa Series Fixed LED Display Screen Front/Back Maintenance IP65 For Outdoor

P1.56 Onyxa Series Fixed LED Display Screen Front/Back Maintenance IP65 For Outdoor
Brand Name
VW
Product Model
P1.56
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
China
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
1000sqm per month
Product Details
Highlight:

P1.56 outdoor LED display screen

,

IP65 fixed LED display

,

front back maintenance LED screen

Product Name: P1.56 Onyxa Series Fixed LED Display Screen Front/Back Maintenance IP65 For Outdoor
Pixel Pitch: P1.56
Module Size: 500*250mm
Cabinet Size: 500*500*65mm
Cabinet Weight: 26kg/m²
Color Temperature: ≥6500K-8000k
View Angel: H/V:140°/140°
Note: *Reference Information/ Different Configurations/ Different Parameters
Product Description
Detailed Specifications And Features

P1.56 Onyxa Series Fixed LED Display Screen Front/Back Maintenance IP65 For Outdoor


Product Description:

The innovative magnetic suction module supports quick-front, quick-mount maintenance, and its fanless design ensures ultra-quiet operation at a noise level of ≤40dB. Point-by-point calibration technology realizes pixel-level uniform display, and 3840Hz high brush eliminates 1/3000s shutter shooting residual shadow. It’s suitable for conference centers, stage performances, and real estate showrooms.

P1.56 Onyxa Series Fixed LED Display Screen Front/Back Maintenance IP65 For Outdoor 0


Features:

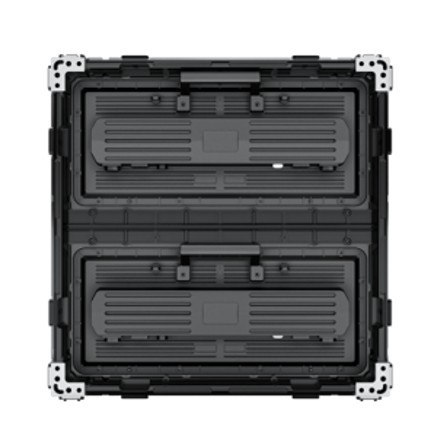

  • Magnetic Module: Module with magnet and lock design, fast to maintain and safe, can be Front and rear access

  • Work In Silence: Adopt fanless passive cooling design, working noise ≤ 40dB (whisper level)

  • Point By Point Calibration: Through the point-by-point white balance calibration technology, each LED lamp bead is independently compensated for color temperature

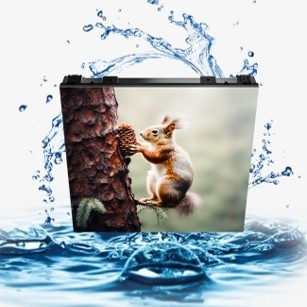

  • IP65 Protection: Full-sealed die-casing aluminum with IP65 weather protection resists water, moisture and dust from entering the display even in some of the harshest environments


Technical Parameters:

Item P1.56
Pixel Pitch 1.56mm
Resolution rate 320*160Dots
Module size 500*250
Pixel color 1R1G1B
Pixel LED MIP1010
Working voltage DC3.8V/2.8V
Module Power 62W
Driving IC ICND2159
Driving way 1/27
HUB HUB75
Material Die-CastAluminum
Cabinet Weight 26kg/m²
Resolution rate 320*320Dots
Cabinet size 500*500*65mm
Module quantity 2X1
Density 409600 Dots/㎡
White balance 2500-4000CD/㎡
Color temperature ≥6500K-8000k
view angel H/V:140°/140°
Non-Flatness <0.2mm
Module interval <0.2mm
Maximal power/㎡ ≤560W/㎡
Average power/㎡ ≤160W/㎡
Frame frequency 60Hz
Refresh frequency 3840Hz
Gray grade ≥16bit
Working temperature -20~70℃
Protecting rate IP65
Maintainace Front/Back
Note *Reference information/ different configurations/ different parameters


Applications:

Our products are widely used in a variety of settings, including stage rentals, song and dance performances, conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance venues, nightclubs, high-end entertainment venues, TV events like the Spring Festival Gala, and important cultural activities across provinces and cities.

P1.56 Onyxa Series Fixed LED Display Screen Front/Back Maintenance IP65 For Outdoor 1

P1.56 Onyxa Series Fixed LED Display Screen Front/Back Maintenance IP65 For Outdoor 2


Service and support:

Pre-Sale Services

  • Prompt Responses: Inquiries are addressed within 24 hours to provide timely assistance.

  • Market Insights: Detailed market research and forecasts help you make informed decisions.

  • Tailored Solutions: Customized proposals are designed to meet your specific requirements.

  • Sample Provision: Datasheets and product samples are readily available for evaluation.

  • Additional Services: Custom packaging options and factory visit arrangements are offered for added convenience.

In-Sale Services

  • Production Monitoring: Continuous updates and progress tracking throughout production.

  • Visual Updates: Photos and videos are provided upon request to keep you informed.

  • Free Spare Parts: Complimentary spare parts are included to enhance reliability and performance.

After-Sales Support

  • Rapid Complaint Handling: Issues are addressed within 24 hours with solutions provided within 48 hours.

  • Comprehensive Warranty: A 24-month warranty ensures peace of mind and reliability.

  • Technical Training: Free training sessions for technicians empower your team with essential skills.

  • Complete Documentation: A full set of documents, including an installation guide, software manual, maintenance guide, and control system software CD, ensures smooth operation and maintenance.


FAQ:

Q1: Can you accept the sample orders?

A1: Yes, we accept sample orders for quality verification and market testing.


Q2: Does there have any warranty?

A2: Yes, a two-year warranty for all products.


Q3: Can I customize it?

A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.


Q4: What is your MOQ?

A4: Any quantity is acceptable for your order. And the price is negotiable for large quantities.


Q5: Can it play HD video?

A5: Yes, it can realize HD video function with Novastar or Colorlight controlling system.


Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
