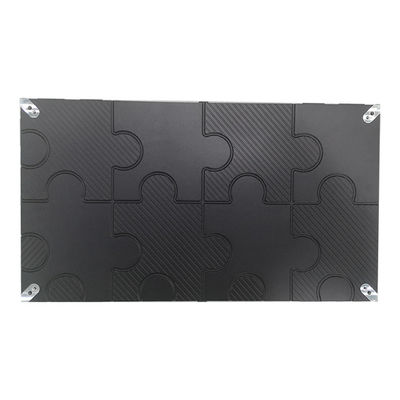

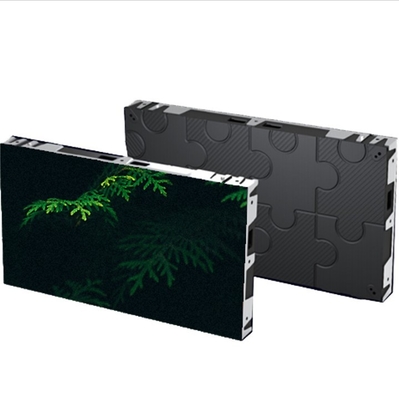

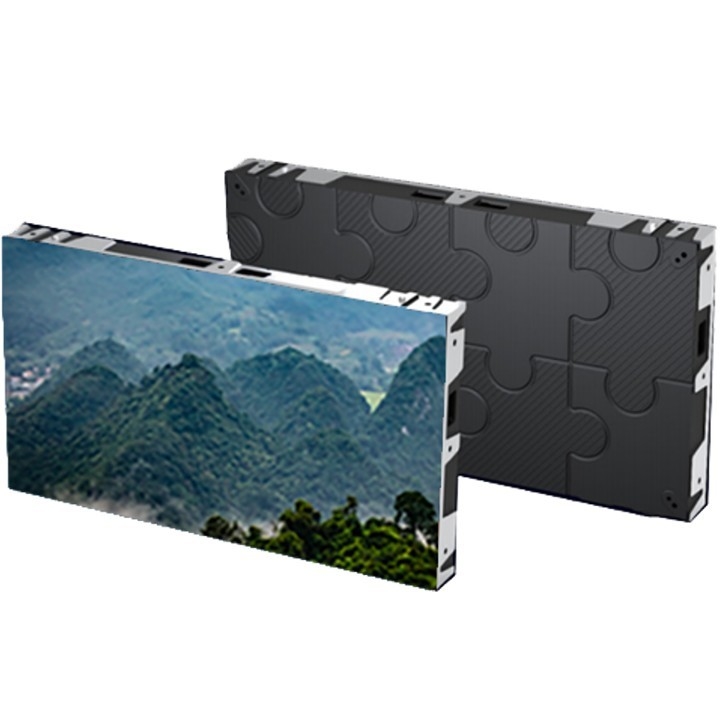

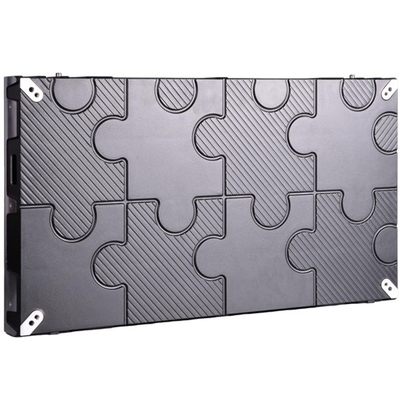

P1.25 COB Small Pixel Pitch LED Display With Integrated Control Box For Indoor
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 COB Small Pixel Pitch LED Display With Integrated Control Box For Indoor | Pixel Pitch: | P0.9/P1.25/P1.56/P1.87 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | Brightness: | 400-600nits |
| Cabinet Weight:: | 5.5kg | IP Rating: | F: IP30, R: IP45 |
| Highlight: | P1.25 COB LED display indoor,small pixel pitch LED screen,integrated control box LED display |
||
Product Description
| Attribute | Value |
|---|---|
| Product name | P1.25 COB Small Pixel Pitch LED Display With Integrated Control Box For Indoor |
| Pixel Pitch | P0.9/P1.25/P1.56/P1.87 |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Size | 600x337.5mm |
| Maintenance | Front Service |
| Brightness | 400-600nits |
| Cabinet Weight | 5.5kg |
| IP Rating | F: IP30, R: IP45 |
The P1.25 COB Small Pixel Pitch LED Display offers an excellent display with detailed picture quality and rich colors. It is designed with a 16:9 aspect ratio, providing users with a wide field of view and a comfortable viewing experience. In addition, it is equipped with an integrated control box, making operation more convenient. It also offers comprehensive front service to ensure that the equipment is always in the best condition.
- The full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance, preventing LED screens from blinding or experiencing failures due to dampness in high-humidity and salt-spray conditions.
- The module features 3D ink printing technology, enhancing contrast by 20% and lowering display brightness requirements. It supports an LCD status display panel for intuitive real-time monitoring of cabinet operations.
- The module's PCB utilizes an HDI multi-layer circuit board design, ensuring good color uniformity and even temperature distribution.
- The entire series incorporates Sunrise's energy-efficient common cathode chip, delivering higher performance with grayscale levels up to 16-bit.
| Product Model | FP0.9 | FP1.25 | FP1.56 | FP1.87 |
|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Type | 4 in 1 LED | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension | 600x337.5x58 mm | 600x337.5x58mm | 600x337.5x58mm | 600x337.5x58mm |
| Module Size | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm |
| Cabinet Weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/46 | 1/45 | 1/48 | 1/45 |
| Brightness | 400 nits | 600 nits | 600 nits | 600 nits |
| Max/Avg Power | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² |
| Maintenance | Front service | Front service | Front service | Front service |
| Environment | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
| IP Rating | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 |
| Refresh Rate | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
- Digital Signage system
- Chain store
- Billboard
- Perimeter LED poster
- Arena display, etc.
Full-service support throughout the process.
- Pre-sales: We offer detailed production instructions and professional installation guidance.
- Sales: We provide customized solutions, visual designs, and project showcases.
- After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
A1: Yes, the sample order is acceptable for quality check and market test.
A2: Screen size can be customized based on your demand.
A3: A two-year warranty for all products.
A4: We prioritize quality at every stage of production. Our rigorous quality control processes include stringent component selection, advanced manufacturing techniques, and comprehensive testing. Before shipment, each LED floor display undergoes a meticulous final inspection to ensure it meets our exacting standards.
A5: We promise to provide professional after-sale technical support within 24 hours after receiving the customer's notice.
