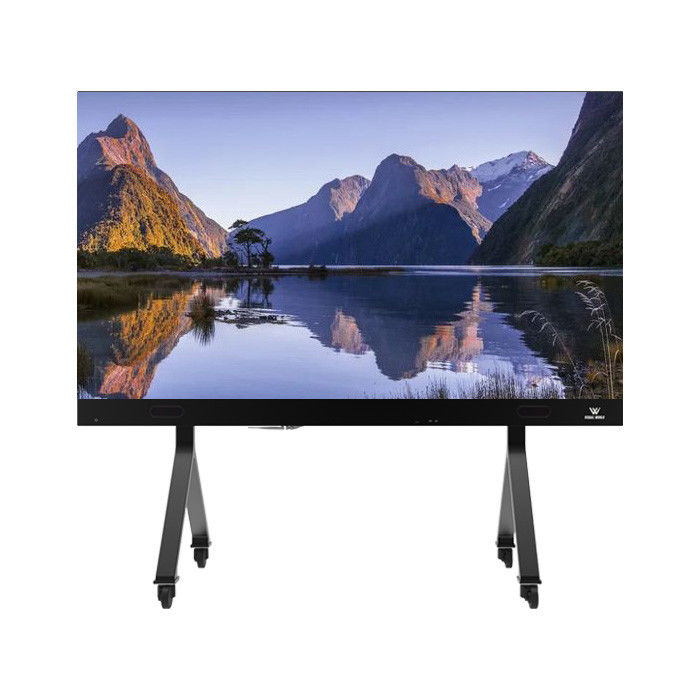

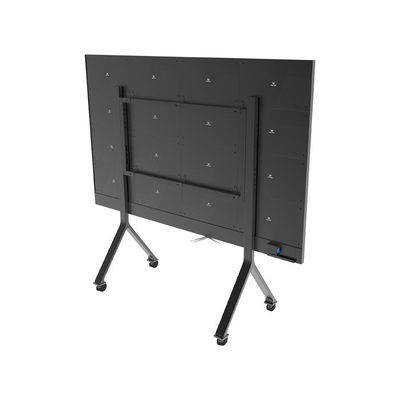

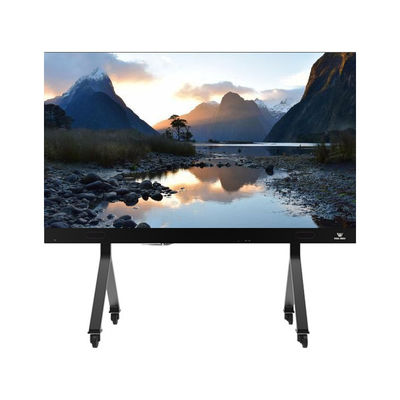

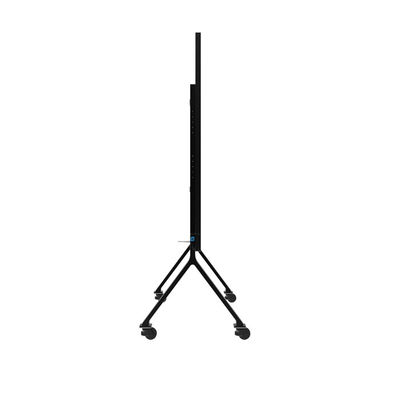

P0.7 Smart Poster LED Display COB 600*337.5 Front Service 108" 16:9 Ratio
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P0.7 Smart Poster LED Display COB 600*337.5 Front Service 108" 16:9 Ratio | Pixel Pitch: | 0.7mm,0.9mm,1.25mm,1.56mm |
|---|---|---|---|
| Display Size: | 2400*1350mm | LED Type: | COB |
| Cabinet Dimension: | 600*337.5 | Cabinet Material: | Die-casting Aluminum |
| Maintenance: | Front Service | Display Ratio: | 16:9 |
| Highlight: | Front Service Smart Poster LED Display,COB Smart Poster LED Display,P0.7 Smart Poster LED Display |
||
Product Description
P0.7 Smart Poster LED Display COB 600*337.5 Front Service 108" 16:9 Ratio
PRODUCT DESCRIPTION
The P0.7 Smart Poster LED Display is an advanced display solution designed for conferences, exhibitions, and advertising. With an ultra-fine 0.7mm pixel pitch and a 108-inch screen, it delivers crisp visuals and rich colors, making it a striking focal point in any setting.
FEATURES
- Sleek & Lightweight Design
No complex installation is required—operates just like a large TV.
- Height Adjustable
Adaptable for various environments and usage scenarios.
- Seamless Wireless Screen Sharing
Compatible with Windows, Mac OS, iOS, and Android for effortless screen mirroring.
- Efficient File Management
Supports file playback and organization, with options for selective or bulk deletion, categorizing files into images, music, videos, and more.
TECHNICAL SPECIFICATIONS
| Model | CrystalTV 108”(4X4) | |||
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
|
Cabinet Dimension (mm) |
600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 |
| Module Size(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| LED Type | COB | COB | COB | COB |
| Display Size(mm) | 2400*1350 | 2400*1350 | 2400*1350 | 2400*1350 |
| Display Resolution | 3072*1728 | 2560*1440 | 1920*1080 | 1536*864 |
|
Display Ratio |
16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Weight |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/40 | 1/60 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-800 nits | 0-800 nits | 1000 nits |
|
Max Power Avg Power |
196W/m² 65W/m² |
280W/m² 95W/m² |
330W/m² 110W/m² |
330W/m² 100W/m² |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°V:170° | H:170°V:170° | H:170°V:170° | H:170°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
APPLICATION
- Conference room
- Lecture theater
- Multimedia room
- Educational establishment
- Telemedicine
FAQ
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q4: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
