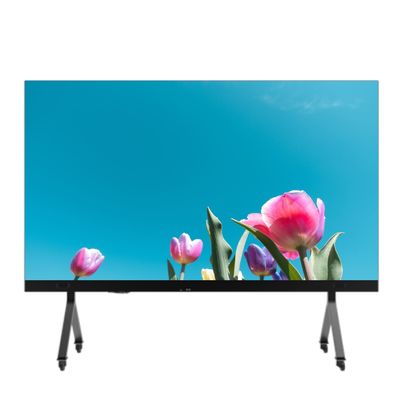

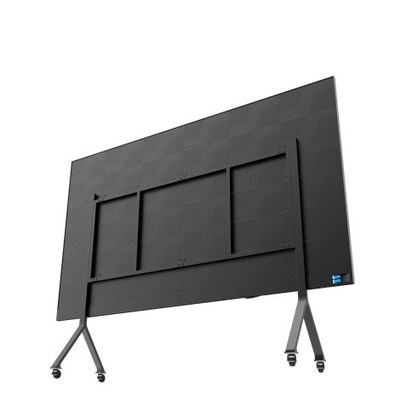

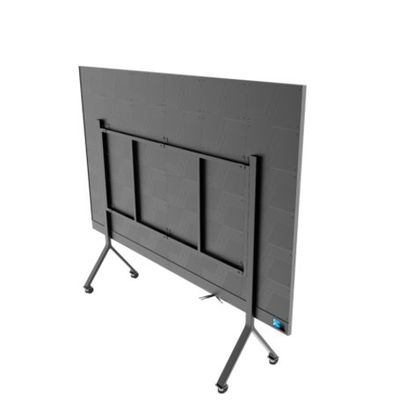

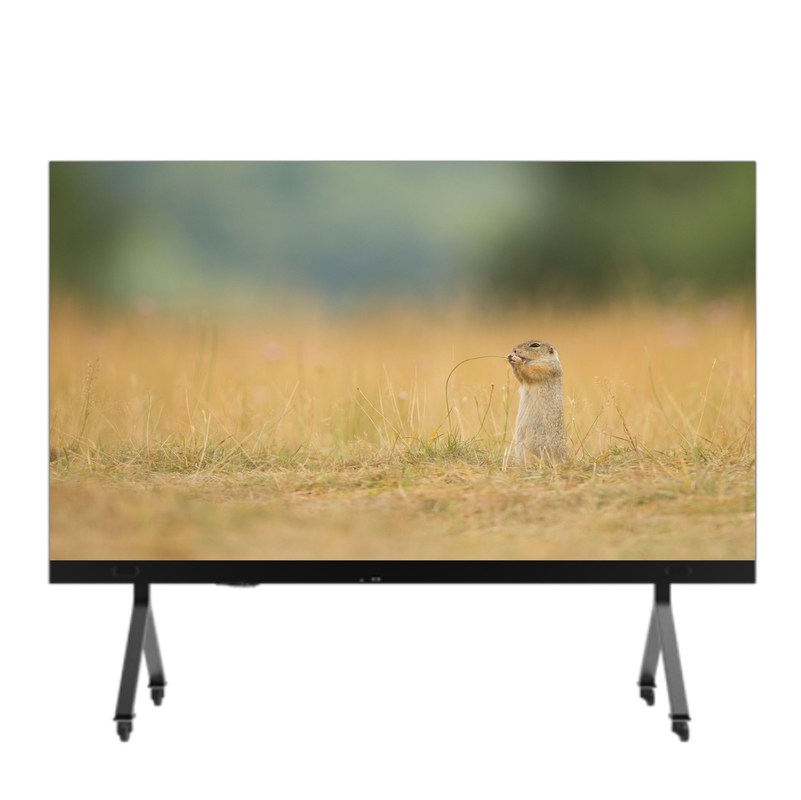

P1.56 Smart Poster Led Screen Display COB 600/1000nits 6×6 For Presentation
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.56 Smart Poster Led Screen Display COB 600/1000nits 6×6 For Presentation | Pixel Pitch: | 1.56mm |
|---|---|---|---|
| Cabinet Size: | 600*337.5 | Display Size: | 3600*2025mm |
| IP Rating: | Front:IP65/Rear:lP30 | Maintenance: | Front Service |
| Display Weight: | 245KG (floor Standing) 205KG(wall-mounted) | Installation Type: | Standing/Mounting/Hanging |
| Highlight: | COB Smart LED Poster Display 600nits,P1.56 LED Screen for Presentation,Smart Poster Display with 1000nits brightness |
||
Product Description
P1.56 Smart Poster LED Screen Display COB 600/1000nits 6×6 For Presentation
Premium Visual Display Solution
The P1.56 Smart Poster LED Screen (16:9 Ratio COB) represents a technological breakthrough in visual display systems, delivering premium performance across exhibition spaces, retail environments, and corporate settings. Featuring an ultra-precise 1.56mm pixel density and substantial 163-inch viewing area, it generates brilliantly crisp visuals with deeply saturated colors that create immersive viewing experiences in any location.
Key Features
- Ultra-thin: Easy installation, operates like a large TV
- Adjustable height: Adaptable to various environments
- Wireless screen sharing: Compatible with Windows, Mac OS, iOS, and Android systems
- File management: Supports organized playback of media files with flexible management options
Technical Specifications
| Model | CrystalTV 163" (6×6) |
|---|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| Cabinet Dimension(mm) | 600*337.5 |
| Module Size(mm) | 150×168.75 |
| LED Type | COB |
| Display Size(mm) | 3600*2025 |
| Display Resolution | 4608*2592 | 3840*2160 | 2880*1620 | 2304*1296 |
| Display Weight | 245KG (floor standing) 205KG(wall-mounted) |
| Driving Type | 1/36 | 1/36 or 1/54 | 1/27 or 1/60 | 1/48 |
| Maintenance | Front service |
| Brightness | 600/2000nits | 600/2000nits | 600/1500nits | 600/1000nits |
| Max/Avg Power | 196/65W/m² | 280/95W/m² | 330/110W/m² | 330/100W/m² |
| IP Rating | Front:IP65/Rear:lP30 |
| Refresh Rate | >3840Hz |
| Installation Type | standing/Mouting/Hanging |
| Gray Scale | 16bit |
| Viewing Angle | H: 170° V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%~90%RH |
Applications
- Conference room
- Lecture theater
- Multimedia room
- Educational establishment
- Telemedicine
Support and Service
Pre-Sale Service:
- Respond to inquiries within 24 hours
- Provide market research, forecasts, and tailored solutions
- Offer datasheets, samples, custom packaging design, and factory visits upon request
In-Sale Service:
- Monitor production and share photos/videos as requested
- Supply spare parts at no extra cost
After-Sale Service:
- Address complaints within 24 hours and resolve issues within 48 hours
- 24-month warranty included
- Free technician training and comprehensive documentation (installation guides, manuals, maintenance guides, software CDs) provided
Frequently Asked Questions
Q1: Do you accept sample orders?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen.
Q2: Is there a warranty on your products?
A2: Definitely! All our products are backed by a two-year warranty.
Q3: How is the shipping cost calculated?
A3: Shipping costs are determined by the total weight of your order. We choose the most economical and dependable shipping option based on your order size and delivery location.
Q4: How does your factory maintain quality control?
A4: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q5: Can I customize the product with my logo?
A5: Yes, we can design different categories of products according to your requirements.
Q6: To order a display, what kind of information do I have to offer you?
A6: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Want to Know more details about this product
