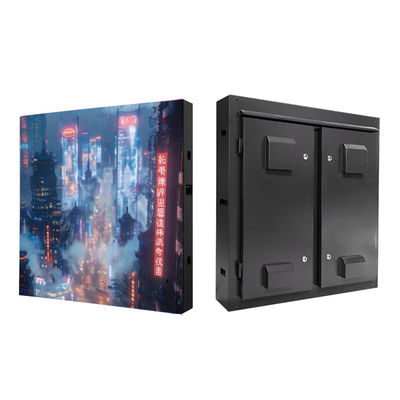

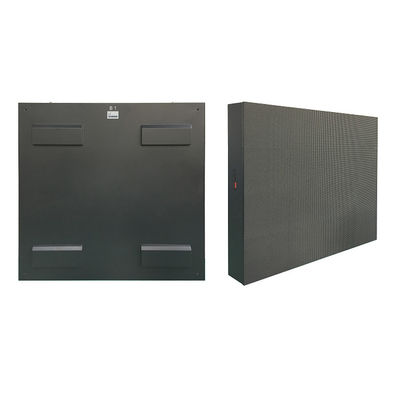

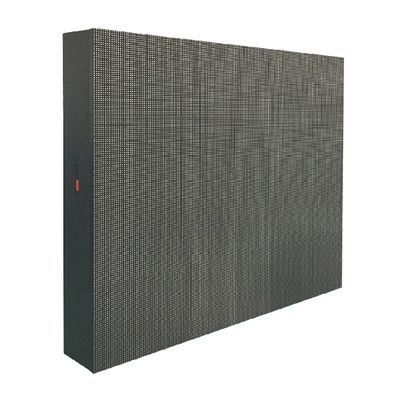

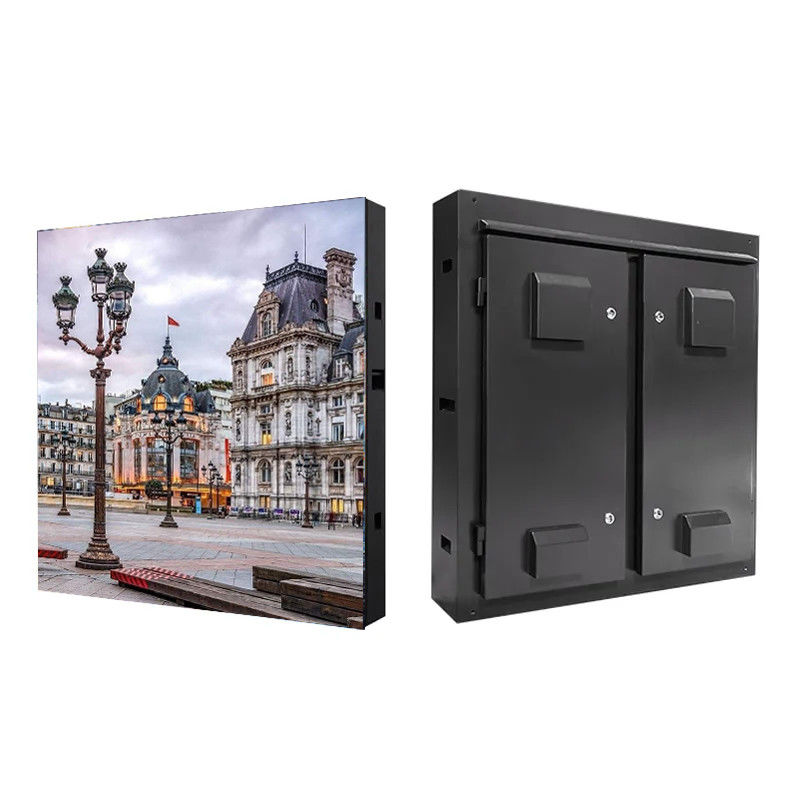

P6.67 Outdoor Fixed LED Video Wall Screen Rear Service 5500nits 960x960mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed LED Video Wall Screen Rear Service 5500nits 960x960mm | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
| Highlight: | P6.67 LED Video Wall Screen,5500nits LED Video Wall Screen,Rear Service LED Video Wall Screen |
||
Product Description
P6.67 Outdoor Fixed LED Video Wall Screen Rear Service 5500nits 960x960mm
Product Description:
Fixed led display screen refers to the led display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation led displays.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with ip65 protection level for outdoor using.
- Front service:The cabinet and module have compatible front locks design which allows technicians to do front maintenance effortless.
- High brightness:Customized module pcb and designated power supply make it up to 6000nits brightness.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation:Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters:
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q4: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
