P4 Outdoor LED Screen Module Arc Video Wall Waterproof IP67 Front Service
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P4 Outdoor LED Screen Module Arc Video Wall Waterproof IP67 Front Service | Pixel Pitch: | 2.85mm,4mm, 6.67mm |
|---|---|---|---|
| IP Level:: | IP67 | Module Size: | 320x320x37mm |
| Maintenance: | Front Service | Cabinet Material: | Die-casting Aluminum |
| Cabinet Weight: | 15kg/sqm | Brightness: | 5000nits |
Product Description
P4 Outdoor LED Screen Module Arc Video Wall Waterproof IP67 Front Service
Product Description:

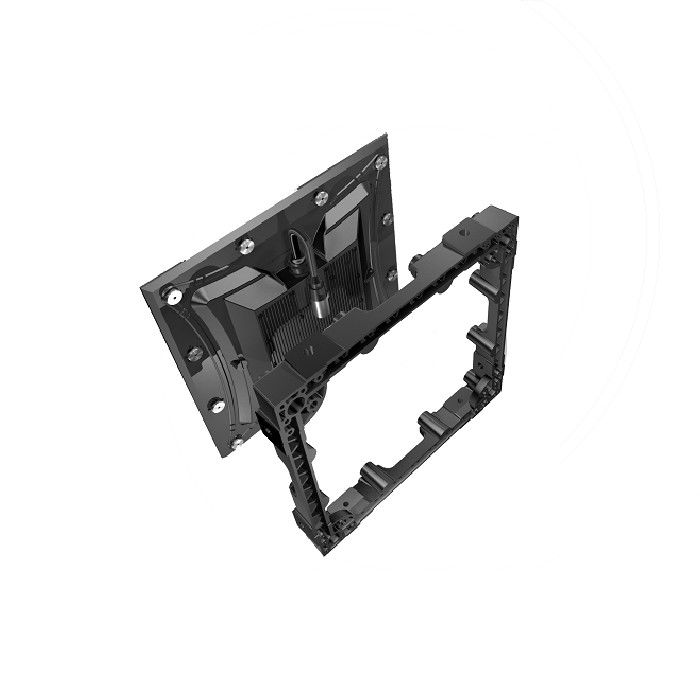

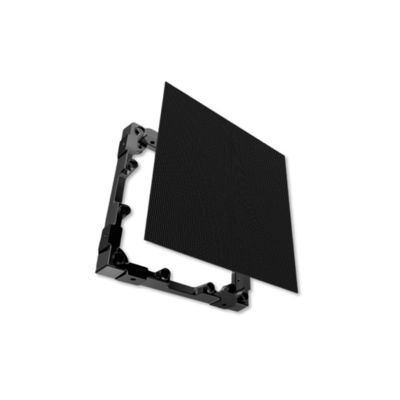

The 320x320mm Smart LED Module boasts a modular design, offering flexible and scalable display solutions. Its lightweight construction and high protection level ensure easy rigging and long-lasting durability. With an IP67 protection rating, the module is fully waterproof and anti-salt, making it perfect for challenging environments. Designed for user convenience, it allows for effortless assembly, installation, and maintenance. Additionally, its integrated signal and power cabling streamline setup, delivering a seamless and efficient user experience.
Technical Parameters:
| Product Model: | P4 |
| Pixel Pitch: | 4 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 320×320x37 mm |
| Module Size: | 320x320 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/16 |
| Brightness: | >5000 nits |
| Max/Avg Power: | 800/200 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:160° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Features:
- LIGHTWEIGHT
Die-casting aluminum material, only 15kg/sqm, saving shipping costs.
- INTEGRATED DESIGN
Integrate power supply, receiving card, and module into one cabinet.
- Waterproof IP67
- 45° BEVELEDGE DESIGN
45° Beveledge design, various shapes splicing
Application:
- Shopping Mall:
LED screens can display mall directories, store locations, and ongoing promotions, helping shoppers easily navigate and find their preferred stores or amenities.
- Park Entrance:
LED screens can greet visitors with welcome messages, provide park maps, highlight key attractions, and display event schedules, offering a quick overview of the park’s layout and activities.
FAQ:
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q5: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q6: What if I don't know how to maintain the screen?
A6: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
