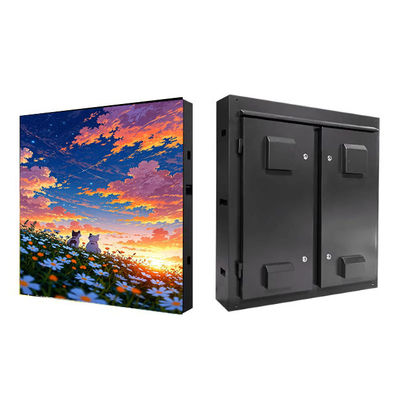

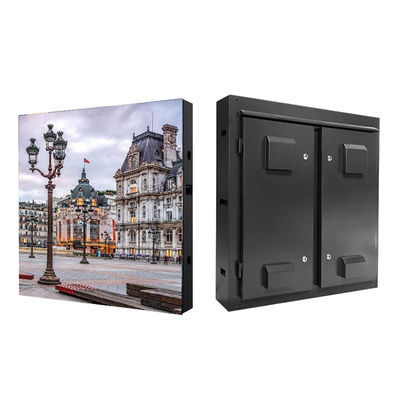

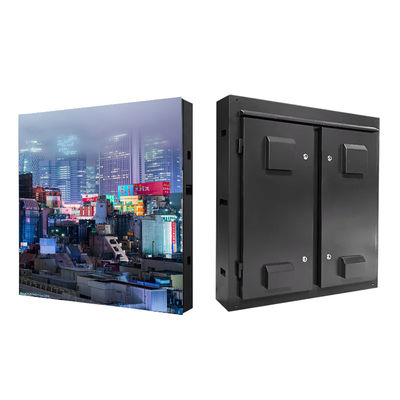

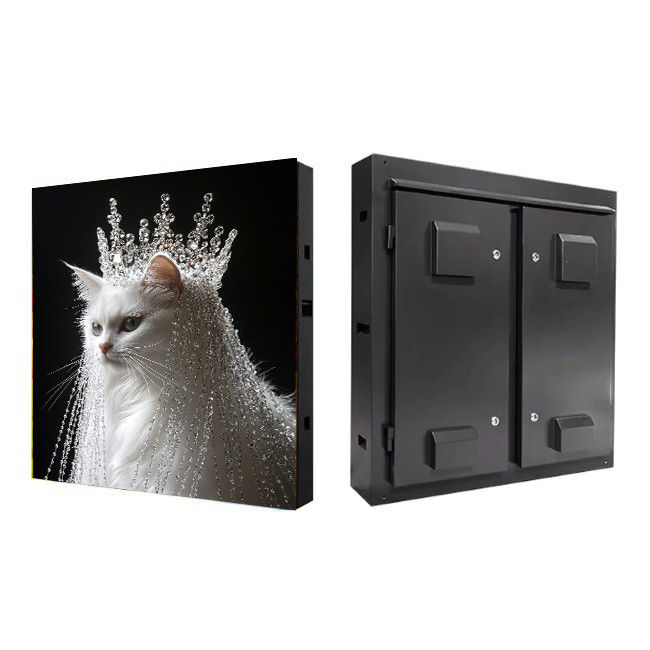

P6.67 Outdoor Fixed LED Display Rear Service 5500nits SMD3535 960x960mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed LED Display Rear Service 5500nits SMD3535 960x960mm | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
Product Description
P6.67 Outdoor Fixed LED Display Rear Service 5500nits SMD3535 960x960mm
Product Description:
Fixed led display screen refers to the led display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation led displays.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with ip65 protection level for outdoor using.
- Front service:The cabinet and module have compatible front locks design which allows technicians to do front maintenance effortless.
- High brightness:Customized module pcb and designated power supply make it up to 6000nits brightness.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation:Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters:
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
Outdoor creative modeling
Building entrance
Park entrance
Swimming pool
Advertising billboard
Playing field
Outdoor activity area
Roadside poster
Building exterior wall
FAQ
Q2: How do we ensure quality?
A2: Seven quality control steps ensure that the screens you order are of good quality
1). We are committed to using premium-grade LED components.
2). We have a complete quality inspection system, and professional technical workers and machines are used to inspect materials.
3). Each product is strictly tested at least 4 times before shipment.
4). All modules are subjected to a 48-hour high-temperature aging test before assembling the cabinet.
5). After the cabinet is assembled, all functions of each cabinet are tested.
6). All tested cabinets are assembled and debugged and then subjected to a 72-hour aging test.
7). All products and spare parts are checked and confirmed again during packaging.
Q3: How to operate and use it?
A3: Our technician will help you to configure LED screen by video call or by remote if you don’t know how to make LED screen work.
Q5: How long does it take to ship?
A5: Express and air freight usually take 5-10 days. Sea freight takes about 15-55 days according to different countries.
