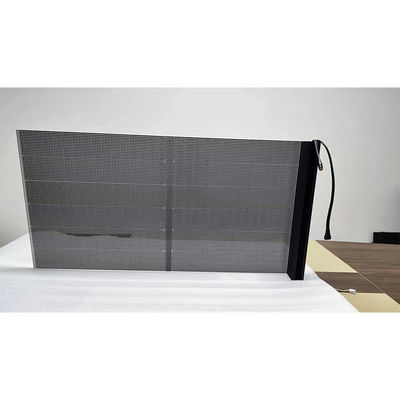

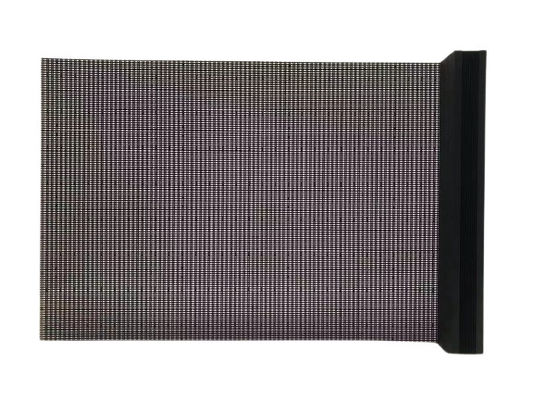

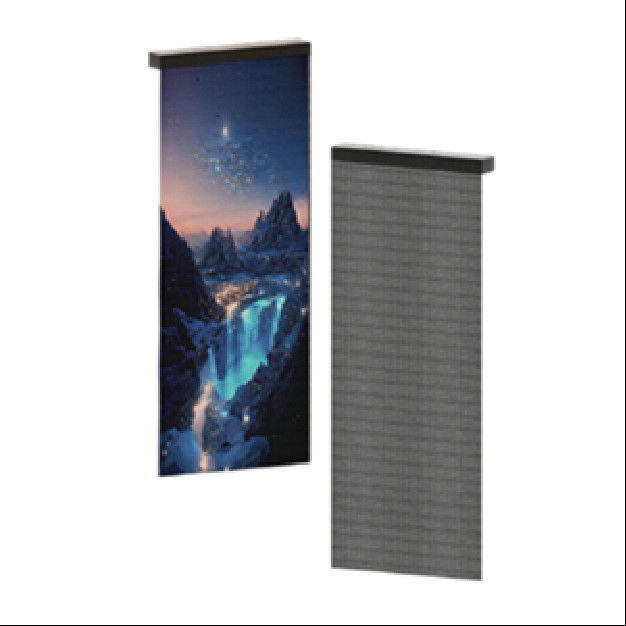

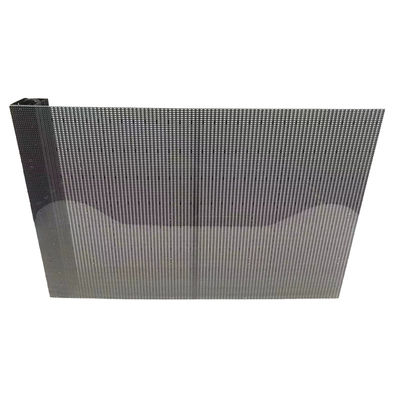

P3.9 Holographic Indoor Transparent LED Display Rear Service 6kg/SQM 16 bit
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 Holographic Indoor Transparent LED Display Rear Service 6kg/SQM 16 Bit | Brightness: | 1000-5000nits |
|---|---|---|---|
| Waterproof: | IP42 | Led Type: | SMD1415 1R1PG1PB UV |
| Driving Method: | Static | Transparent Rate: | 70% |
| Maintenance: | Rear Service | Cabinet Size: | 600/1200/1800x500/600/700/800mm |
| Cabinet Material: | Aluminum+PCB | Panel Weight: | 6 Kg/sqm |
| Highlight: | 16 bit Indoor Transparent LED Display,P3.9 Indoor Transparent LED Display,Rear Service Indoor Transparent LED Display |
||
Product Description
P3.9 Holographic Indoor Transparent LED Display Rear Service 6kg/SQM 16 bit
Product Description:
P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.
Features:
-
Transparent:Industry premiere,with no structural backbone；Real fully transparent；Permeability can reach 70%
- Thin:Module thickness<3mm；Seamless curved surface mountingIntegrated seamlessly onto glass
- Foldable and arbitrarytransformation shape；Soft and bendable.lt can becustomized into different shapes according to different scenes, for example,triangles, ellipses, etc.
- Arbitrary cutting,seamless spiced display:The screen size can be arbitrarily cropped, the closer the distance betweenthe screen beads of the seamless splicing screen, the clearer the pixeldensity. And the seamless cropped screen is more flexible to match theinstallation and regional carrier.
Technical Parameters:
| Pixel Pitch (H/V) | W:3.9;H:3.9mm |
| LED Configuration | SMD1415 1R1PG1PB UV |
| Pixel Density | 65536dot/㎡ |
| Transparency | <66.66% |
| Drive Scheme | 18 aisle |
| Scan method | 0 Scan(6 layer PCB) |
| Refresh Rate | 1920-3840Hz |
| Module Size | 375/750/1125/1500X125mm(L/R) |
| Module Resolution | 96/192/288/384X32dot |
| Product Size | 375/750/1125/1500X500mm |
| Cabinet Resolution | 96/192/288/384X128dot |
| Cabinet Weight | 6kg/㎡ |
| IP Rating ( front/back) | IP42 |
| Brightness | 1000-5000nits/㎡ |
| Viewing Angle (H/V) | 140°/140° |
| Viewing Distance | 4m |
| Gray Scale | 16 bit |
| Max.Power Consumption | 800W/m² |
| Ave.Power Consumption | 240W/m² |
| Maintenance | Rear service |
| Environment | indoor |
| Operation Power | AC:100_240V;50/60Hz |
| Operating Temperature | ﹣10℃~40℃ (work) |
| Operating Humidity | 35%～85% (work),10%～90% |
| Operating Life | 100,000hours |
Applications:
-
Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.
-
Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.
-
Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.
-
Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.
FAQ:
Q1:Are you the manufacturer or trading company? And where is your factory?
Our company is located in Shenzhen China, which enjoys the transportation and good reputation among our domestic and overseas customers for more than 10 years.
Q2: What kind of package can you choose?
A2: Wooden case or airflight case.
Q3: What is LED?
A3: LED is the abbreviation leds (LIGHT EMITTING DIODE), it"s emit visible wave lengths led in the LED display industry
Q4: What is a pixel and pixel pitch?
A4: The pixel is the smallest unit of light emitting,consists of red,green and blue colors.The same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
Q5: What is the LED display module?
A5: The base unit determined by circuit and installation structure,has the display function,can simple assembling.
Q6: What is 3 in 1? What is its advantages and disadvantages?
A6: The RGB color of LED chips encapsulation SMT light vertical tied together according to certain spacing.
The advantages are: simple production, display effect is good.
The disadvantage is spectral color separation difficult, high cost.
