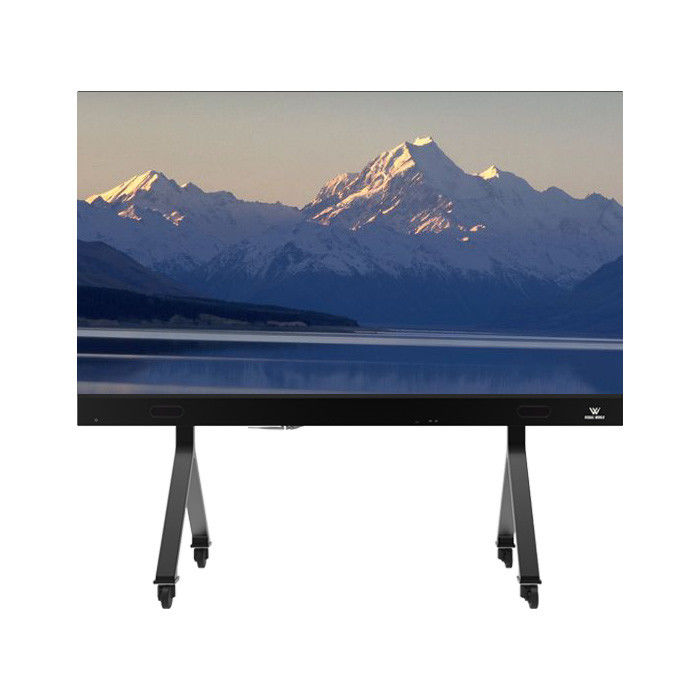

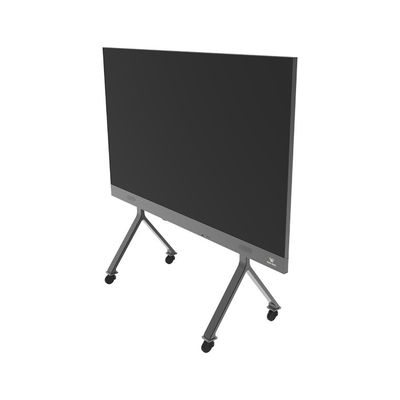

P0.7 Smart LED Poster Display COB Front Service 108" 16:9 Ratio 600*337.5
P0.7 Smart LED Poster Display
,108” Smart LED Poster Display
,16:9 Ratio Smart LED Poster Display
P0.7 Smart LED Poster Display COB Front Service 108" 16:9 Ratio 600*337.5
PRODUCT DESCRIPTION
The P0.7 Smart LED Poster Display is an advanced display solution designed for conferences, exhibitions, and advertising. With an ultra-fine 0.7mm pixel pitch and a 108-inch screen, it delivers crisp visuals and rich colors, making it a striking focal point in any setting.
FEATURES
- Sleek & Lightweight Design
No complex installation is required—operates just like a large TV.
- Height Adjustable
Adaptable for various environments and usage scenarios.
- Seamless Wireless Screen Sharing
Compatible with Windows, Mac OS, iOS, and Android for effortless screen mirroring.
- Efficient File Management
Supports file playback and organization, with options for selective or bulk deletion, categorizing files into images, music, videos, and more.
TECHNICAL SPECIFICATIONS
| Model | CrystalTV 108”(4X4) | |||
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
|
Cabinet Dimension (mm) |
600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 |
| Module Size(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| LED Type | COB | COB | COB | COB |
| Display Size(mm) | 2400*1350 | 2400*1350 | 2400*1350 | 2400*1350 |
| Display Resolution | 3072*1728 | 2560*1440 | 1920*1080 | 1536*864 |
|
Display Ratio |
16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Weight |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/40 | 1/60 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-800 nits | 0-800 nits | 1000 nits |
|
Max Power Avg Power |
196W/m² 65W/m² |
280W/m² 95W/m² |
330W/m² 110W/m² |
330W/m² 100W/m² |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°V:170° | H:170°V:170° | H:170°V:170° | H:170°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
APPLICATION
- Conference room
- Lecture theater
- Multimedia room
- Educational establishment
- Telemedicine
FAQ
Q1:Are you the manufacturer or trading company? And where is your factory?
Our company is located in Shenzhen China, which enjoys the transportation and good reputation among our domestic and overseas customers for more than 10 years.
Q2: What kind of package can you choose?
A2: Wooden case or airflight case.
Q3: What is LED?
A3: LED is the abbreviation leds (LIGHT EMITTING DIODE), it"s emit visible wave lengths led in the LED display industry
Q4: What is a pixel and pixel pitch?
A4: The pixel is the smallest unit of light emitting,consists of red,green and blue colors.The same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
Q5: What is the LED display module?
A5: The base unit determined by circuit and installation structure,has the display function,can simple assembling.
Q6: What is 3 in 1? What is its advantages and disadvantages?
A6: The RGB color of LED chips encapsulation SMT light vertical tied together according to certain spacing.
The advantages are: simple production, display effect is good.
The disadvantage is spectral color separation difficult, high cost.
-
