P3.9 Outdoor Fixed LED Display SMD1921 Front Service 1000x1000mm 6000nits
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P3.9 Outdoor Fixed LED Display SMD1921 Front Service 1000x1000mm 6000nits | Pixel Pitch: | 3.9mm |
|---|---|---|---|
| Cabinet Material: | Aluminum Profile | LED Type:: | SMD1921, 3 In 1 |
| Cabinet Size: | 1000x1000mm | Module Size: | 500x250mm |
| Cabinet Weight: | 29kg/sqm | Brightness: | 6000nits |
| Highlight: | P3.9 Outdoor Fixed LED Display,SMD1921 Outdoor Fixed LED Display,1000x1000mm Outdoor Fixed LED Display |
||
Product Description
P3.9 Outdoor Fixed LED Display SMD1921 Front Service 1000x1000mm 6000nits
Product Description:
The P3.9 Outdoor Fixed LED Display comes in a rugged 1000 x 1000mm enclosure and is designed to provide a top-notch visual experience in outdoor environments. This advanced display solution has been designed with a focus on long-lasting performance and lifelike, vivid images, making it ideal for applications requiring high visibility and resilience.
Features:
-
Portable and cost-effective: The LED cabinet is made of lightweight aluminum, weighing approximately 29kg per square meter, which helps reduce shipping expenses.
-
Efficient thermal management: The fanless design, combined with the aluminum base of the module, ensures effective heat dissipation.
-

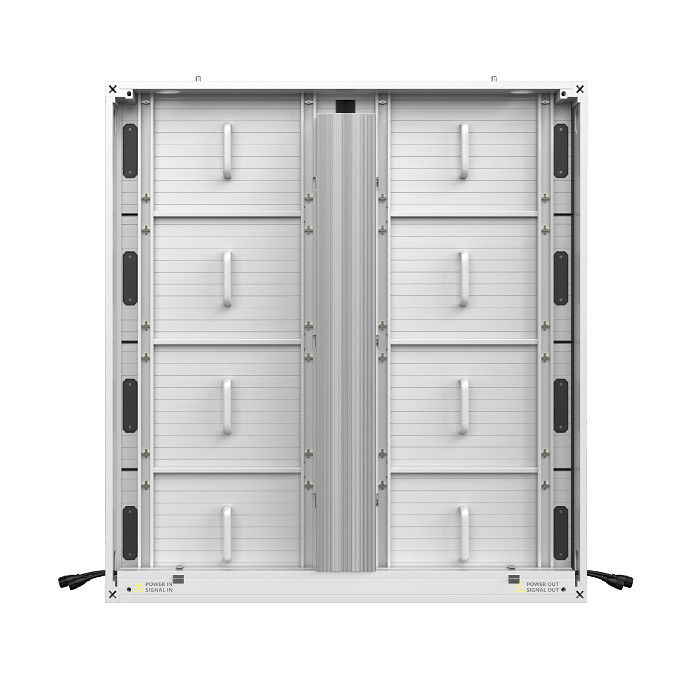

Easy front access: The display offers 100% full front maintenance, allowing for easy removal and servicing of the LED module and power box from the front side.
-
Sleek and compact: With a cabinet thickness of just 90mm, this ultra-slim design is perfect for space-saving installations.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | P3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×1000x90 mm |
| Module Size: | 500x250 mm |
| Cabinet Weight: | 29 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/8; 1/16 |
| Brightness: | >6000 nits |
| Max/Avg Power: | 800/265 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | F: IP65, R: IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
Widely used in stage rental, song, and dance activities, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance halls, disco bars, nightclubs, high-end entertainment disco, TV Spring Festival Gala, important cultural activities in various provinces and cities and other places.
FAQ:
Q1:Are you the manufacturer or trading company? And where is your factory?
Our company is located in Shenzhen China, which enjoys the transportation and good reputation among our domestic and overseas customers for more than 10 years.
Q2: What kind of package can you choose?
A2: Wooden case or airflight case.
Q3: What is LED?
A3: LED is the abbreviation leds (LIGHT EMITTING DIODE), it"s emit visible wave lengths led in the LED display industry
Q4: What is a pixel and pixel pitch?
A4: The pixel is the smallest unit of light emitting,consists of red,green and blue colors.The same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
Q5: What is the LED display module?
A5: The base unit determined by circuit and installation structure,has the display function,can simple assembling.
Q6: What is 3 in 1? What is its advantages and disadvantages?
A6: The RGB color of LED chips encapsulation SMT light vertical tied together according to certain spacing.
The advantages are: simple production, display effect is good.
The disadvantage is spectral color separation difficult, high cost.
