P2.5 Indoor Flexible LED Display Screen With Front Service 240X120mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Carton box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 500sqm per week |
|
Detail Information |
|||
| Product Name: | P2.5 Indoor Flexible LED Display Screen With Front Service 240X120mm | Usage: | Indoor, Outdoor |
|---|---|---|---|
| Application: | Curved, Innovative, Creative Shaped | Warranty: | 2 Year |
| Color: | RGB | Column Diameter: | Minimum 1 Meter |
| Module Dimension: | 240X120mm | Maintenance: | Front Service |
Product Description
P2.5 Indoor Flexible LED Display Screen With Front Service 240X120mm
Product Description:

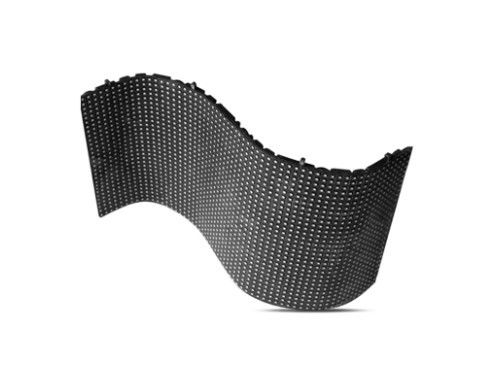

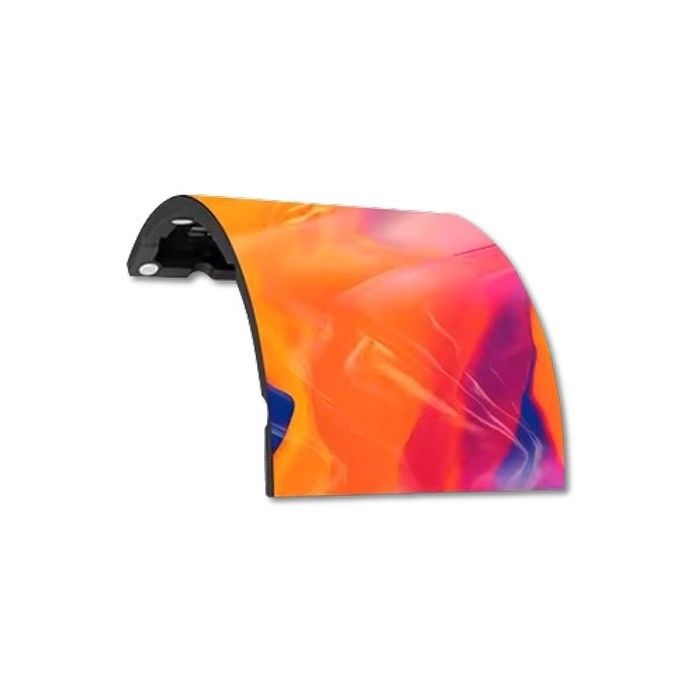

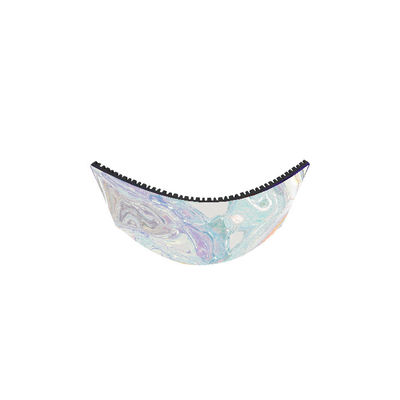

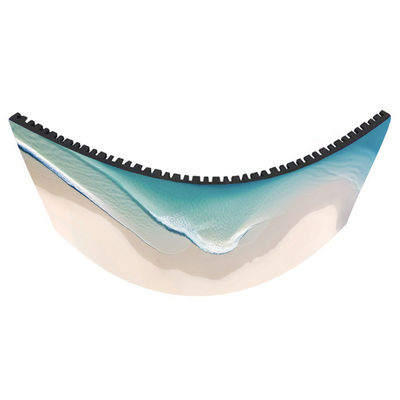

The flexible module can fit the metal frame with different camber surfaces due to the soft characteristics of its PCB, thus realizing the LED display effect of curved surfaces. Different pictures and video content can be played, which makes the soft module very well applied in creative design and urban beautification.
Features:
- Space-saving compact design saves space and labor costs;
- Flexible features, easy installation and adaptable to different building structures;
- Highly customizable features with a wide range of customization options for size, shape, and pixel pitch;
- Highly maneuverable - easy to install, dismantle, fold, store and transport.
Technical Parameters:
|
Product Model: |
FL |
|
Pixel Pitch: |
2.5 mm |
|
LED Type: |
SMD2121 |
|
Module Dimension: |
240x120x8.6 mm |
|
Module Resolution: |
96*48 |
|
Module Weight: |
0.17 kg |
|
Module Shell Material: |
Silicon |
|
Driving Type: |
1/24 |
|
Brightness: |
600-800 nits |
|
Max/Avg Power: |
520/182 W/m2 |
|
Maintenance: |
Front service |
|
Environment: |
Indoor Use |
|
IP Rating: |
IP45 |
|
Refresh Rate: |
>3840 Hz |
|
Installation Type: |
Mounting/Hanging |
|
Gray Scale: |
14 bits |
|
Viewing Angle: |
H:140°；V:140° |
|
Operational Temp: |
-20℃~+50℃ |
|
Operational Humidity: |
10%~90% RH |
Application:
Advertising publish, retail store, shopping mall, welcome display, self-service business, exhibition hall, airport, subway, Restaurant & Hotel Supplies
FAQ:
Q1:Are you the manufacturer or trading company? And where is your factory?
stadium screen, stage screen and advertising screen.
Our company is located in Shenzhen China, which enjoys the transportation and good
reputation among our domestic and overseas customers for more than 10 years.
Q2: What kind of package can you choose?
A2: Wooden case or airflight case.
Q3: What is LED?
A3: LED is the abbreviation leds (LIGHT EMITTING DIODE), it"s emit visible wave lengths led
in the LED display industry
Q4: What is a pixel and pixel pitch?
A4: The pixel is the smallest unit of light emitting,consists of red,green and blue colors.The
same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
Q5: What is the LED display module?
A5: The base unit determined by circuit and installation structure,has the display function,
can simple assembling.
Q6: What is 3 in 1? What is its advantages and disadvantages?
A6: The RGB color of LED chips encapsulation SMT light vertical tied together according
to certain spacing.
The advantages are: simple production, display effect is good.
The disadvantage is spectral color separation difficult, high cost.
