P6.67 Outdoor Fixed LED Display Screen 5500 nits Waterproof IP65 For Advertising
P6.67 Outdoor Fixed LED Display Screen 5500 nits Waterproof IP65 For Advertising
Brand Name
VW
Product Model
P6.67
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T, L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:
P6.67 Outdoor Fixed LED Display Screen
,IP65 Outdoor Fixed LED Display Screen
Product Name:
P6.67 Outdoor Fixed LED Display Screen 5500 Nits Waterproof IP65 For Advertising
LED Type:
SMD3535
Cabinet Dimension:
960x960mm
Chip Color:
RGB Full Color
Pixel Density:
28224 Dots/sqm
Maintenance:
Rear Service
Cabinet Weight:
38 Kg
Application:
Outdoor Wall Mounting Advertising Video Wall
Module Connection:
Locks
Brightness:
5500 Nits
Product Description
Detailed Specifications And Features

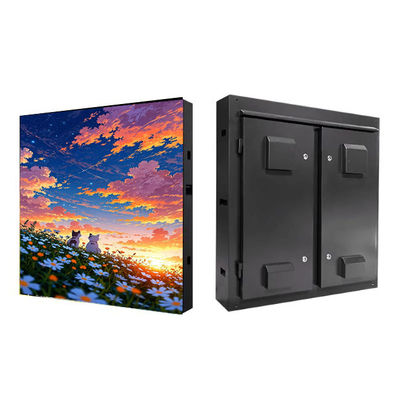

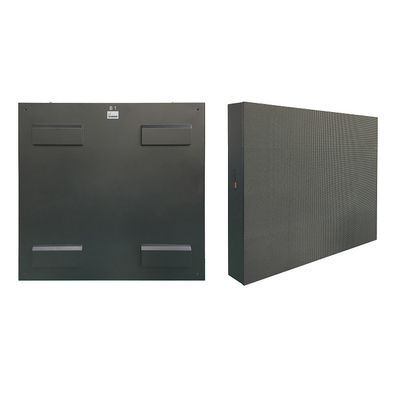

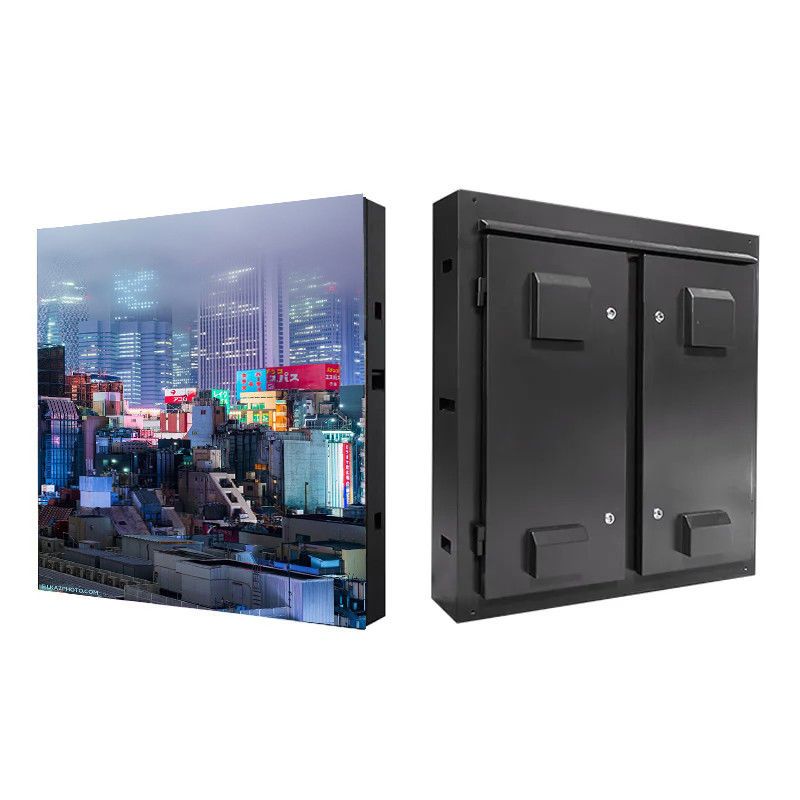

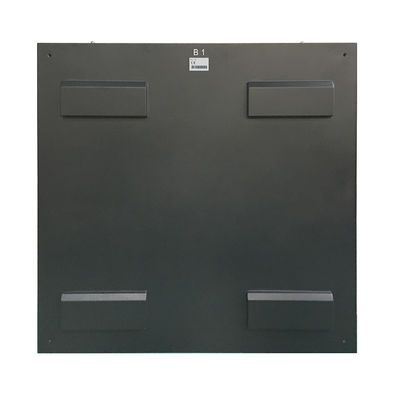

P6.67 Outdoor Fixed LED Display Screen 5500 nits Waterproof IP65 For Advertising
Product Description:
Fixed led display screen refers to the led display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation led displays.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with ip65 protection level for outdoor using.
- Front service:The cabinet and module have compatible front locks design which allows technicians to do front maintenance effortless.
- High brightness:Customized module pcb and designated power supply make it up to 6000nits brightness.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation:Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters:
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
Outdoor creative modeling
Building entrance
Park entrance
Swimming pool
Advertising billboard
Playing field
Outdoor activity area
Roadside poster
Building exterior wall
FAQ
Q1:Are you the manufacturer or trading company? And where is your factory?
A1:We are professional manufacturer of Led outdoor, Led indoor display, rental display,
stadium screen, stage screen and advertising screen.
Our company is located in Shenzhen China, which enjoys the transportation and good
reputation among our domestic and overseas customers for more than 10 years.
Q2: What kind of package can you choose?
A2: Wooden case or airflight case.
Q3: What is LED?
A3: LED is the abbreviation leds (LIGHT EMITTING DIODE), it"s emit visible wave lengths led
in the LED display industry
Q4: What is a pixel and pixel pitch?
A4: The pixel is the smallest unit of light emitting,consists of red,green and blue colors.The
same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
Q5: What is the LED display module?
A5: The base unit determined by circuit and installation structure,has the display function,
can simple assembling.
Q6: What is 3 in 1? What is its advantages and disadvantages?
A6: The RGB color of LED chips encapsulation SMT light vertical tied together according
to certain spacing.
The advantages are: simple production, display effect is good.
The disadvantage is spectral color separation difficult, high cost.
stadium screen, stage screen and advertising screen.
Our company is located in Shenzhen China, which enjoys the transportation and good
reputation among our domestic and overseas customers for more than 10 years.
Q2: What kind of package can you choose?
A2: Wooden case or airflight case.
Q3: What is LED?
A3: LED is the abbreviation leds (LIGHT EMITTING DIODE), it"s emit visible wave lengths led
in the LED display industry
Q4: What is a pixel and pixel pitch?
A4: The pixel is the smallest unit of light emitting,consists of red,green and blue colors.The
same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
Q5: What is the LED display module?
A5: The base unit determined by circuit and installation structure,has the display function,
can simple assembling.
Q6: What is 3 in 1? What is its advantages and disadvantages?
A6: The RGB color of LED chips encapsulation SMT light vertical tied together according
to certain spacing.
The advantages are: simple production, display effect is good.
The disadvantage is spectral color separation difficult, high cost.
