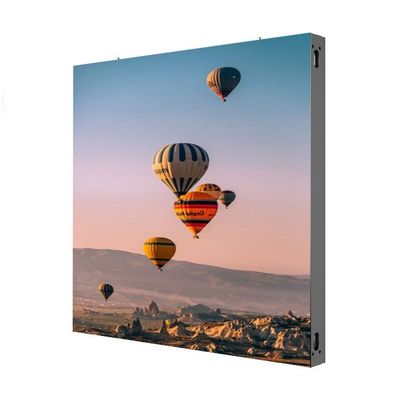

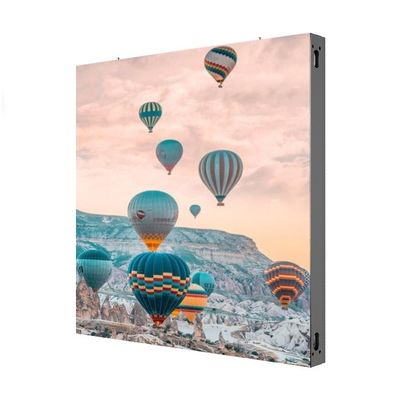

P3.9 Outdoor Fixed LED Display 6000nits SMD1921 Aluminum Profile 1000x1000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P3.9 Outdoor Fixed LED Display 6000nits SMD1921 Aluminum Profile 1000x1000mm | Pixel Pitch: | 3.9mm |
|---|---|---|---|
| Cabinet Material: | Aluminum Profile | LED Type:: | SMD1921, 3 In 1 |
| Cabinet Size: | 1000x1000mm | Module Size: | 500x250mm |
| Cabinet Weight: | 29kg/sqm | Brightness: | 6000nits |
Product Description
P3.9 Outdoor Fixed LED Display 6000nits SMD1921 Aluminum Profile 1000x1000mm
Product Description:
The P3.9 Outdoor Fixed LED Display comes in a rugged 1000 x 1000mm enclosure and is designed to provide a top-notch visual experience in outdoor environments. This advanced display solution has been designed with a focus on long-lasting performance and lifelike, vivid images, making it ideal for applications requiring high visibility and resilience.
Features:
-
Portable and cost-effective: The LED cabinet is made of lightweight aluminum, weighing approximately 29kg per square meter, which helps reduce shipping expenses.
-
Efficient thermal management: The fanless design, combined with the aluminum base of the module, ensures effective heat dissipation.
-

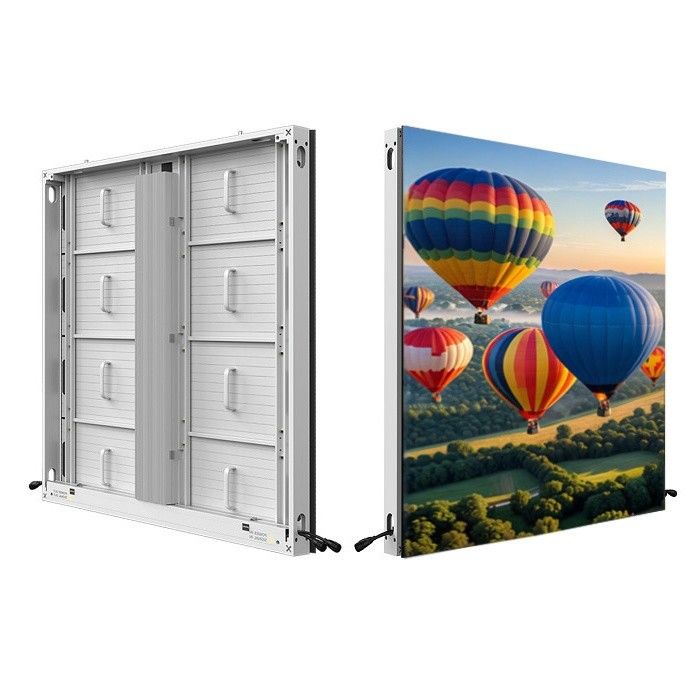

Easy front access: The display offers 100% full front maintenance, allowing for easy removal and servicing of the LED module and power box from the front side.
-
Sleek and compact: With a cabinet thickness of just 90mm, this ultra-slim design is perfect for space-saving installations.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | P3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×1000x90 mm |
| Module Size: | 500x250 mm |
| Cabinet Weight: | 29 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/8; 1/16 |
| Brightness: | >6000 nits |
| Max/Avg Power: | 800/265 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | F: IP65, R: IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
Widely used in stage rental, song, and dance activities, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance halls, disco bars, nightclubs, high-end entertainment disco, TV Spring Festival Gala, important cultural activities in various provinces and cities and other places.
Support and Service:
- Pre-sale service:
Inquiries will be replied within 24 hours. Market research and forecast for customers. Provide unique and professional solutions based on customer's requirements. Data sheet and samples offered. Other required services such as special packing design, factory visits, and so on.
- In-sale service:
Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts are provided.
- After-sale service:
The complaint response period does not exceed 24 hours; maintenance guidance and problem solutions are supplied within 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which includes installation guidance, software operation manual, easy maintenance manual control system software CD, and so on.
FAQ:
Q1:Are you a manufacturer or trading company?
A1:We are a professional OEM/ODM manufacturer ,which has specialized in the LED display industry for more than 10 years.
Q2:How does your factory do regarding quality control?
A2.The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q3:What is your MOQ?
A3.Any quantity is acceptable for your order. And the price is negotiable for large quantities.
Q4.How about your warranty term?
A4. Calculated from the goods to the customer, the warranty period is 2 years, don’t worry, there is a problem with the module,you can send it back to Shenzhen for repair.
Q5:When will you make the delivery?
A5.We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the size and quantities of your order.
