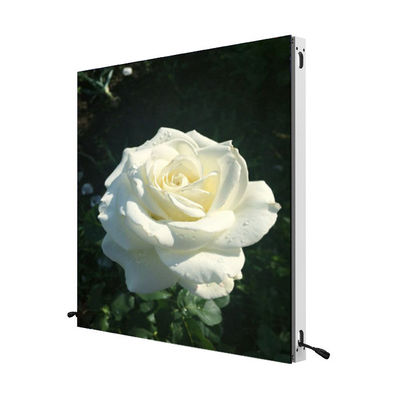

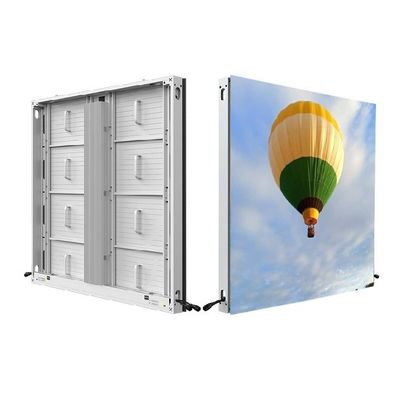

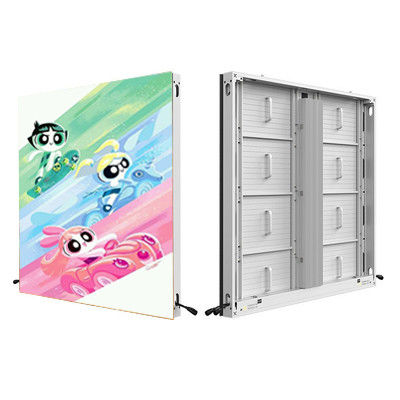

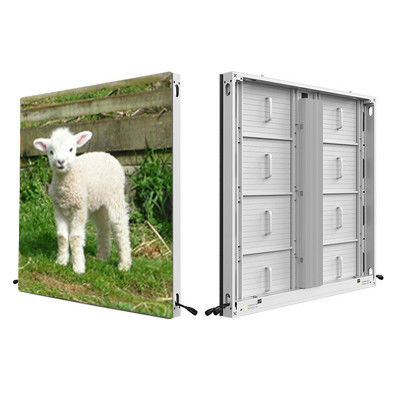

P3.9 SMD1921 Outdoor Fixed LED Display 6000nits Aluminum Profile 1000x1000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P3.9 SMD1921 Outdoor Fixed LED Display 6000nits Aluminum Profile 1000x1000mm | Pixel Pitch: | 3.9mm |
|---|---|---|---|
| Cabinet Material: | Aluminum Profile | LED Type:: | SMD1921, 3 In 1 |
| Cabinet Size: | 1000x1000mm | Module Size: | 500x250mm |
| Cabinet Weight: | 29kg/sqm | Brightness: | 6000nits |
Product Description
P3.9 SMD1921 Outdoor Fixed LED Display 6000nits Aluminum Profile 1000x1000mm
Product Description:
The P3.9 Outdoor Fixed LED Display comes in a rugged 1000 x 1000mm enclosure and is designed to provide a top-notch visual experience in outdoor environments. This advanced display solution has been designed with a focus on long-lasting performance and lifelike, vivid images, making it ideal for applications requiring high visibility and resilience.
Features:
-
Portable and cost-effective: The LED cabinet is made of lightweight aluminum, weighing approximately 29kg per square meter, which helps reduce shipping expenses.
-
Efficient thermal management: The fanless design, combined with the aluminum base of the module, ensures effective heat dissipation.
-
Easy front access: The display offers 100% full front maintenance, allowing for easy removal and servicing of the LED module and power box from the front side.
-
Sleek and compact: With a cabinet thickness of just 90mm, this ultra-slim design is perfect for space-saving installations.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | P3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×1000x90 mm |
| Module Size: | 500x250 mm |
| Cabinet Weight: | 29 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/8; 1/16 |
| Brightness: | >6000 nits |
| Max/Avg Power: | 800/265 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | F: IP65, R: IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
Widely used in stage rental, song, and dance activities, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance halls, disco bars, nightclubs, high-end entertainment disco, TV Spring Festival Gala, important cultural activities in various provinces and cities and other places.
Support and Service:
- Pre-sale service:
Inquiries will be replied within 24 hours. Market research and forecast for customers. Provide unique and professional solutions based on customer's requirements. Data sheet and samples offered. Other required services such as special packing design, factory visits, and so on.
- In-sale service:
Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts are provided.
- After-sale service:
The complaint response period does not exceed 24 hours; maintenance guidance and problem solutions are supplied within 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which includes installation guidance, software operation manual, easy maintenance manual control system software CD, and so on.
FAQ:
Q1.How to choose a best pixel pitch?
Q2. How to install and debug?
A2: We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
Q3.What's the warranty?
A3: 2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q4.What's the minimum quatity?
A4: Sample is available! Quantity is negotiable!
Q5.How to make order?
A5: Provide your E-mail address, detail address and phone number, we will make payment link for you!
