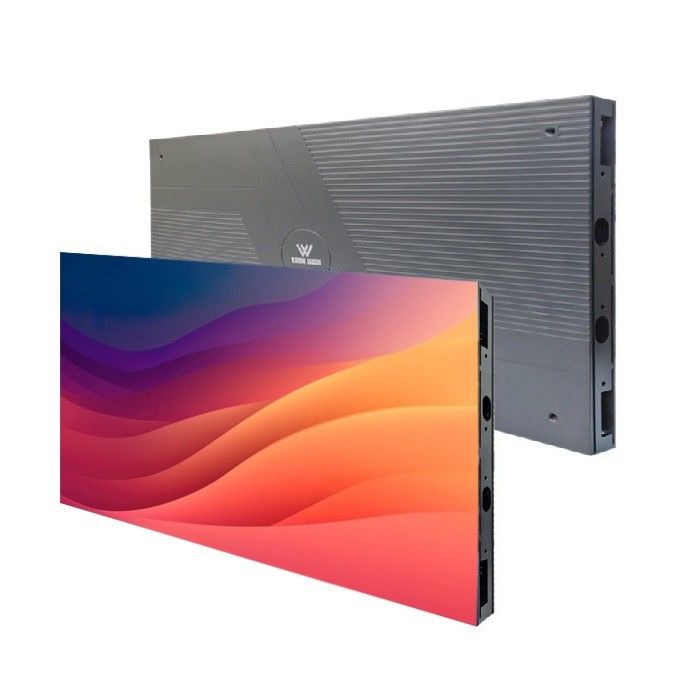

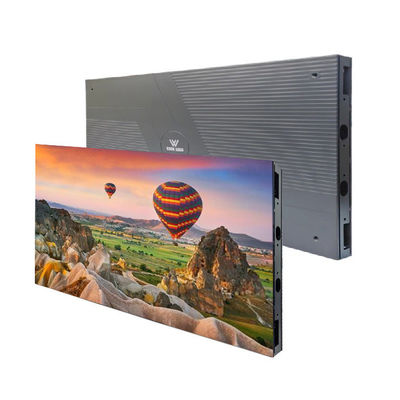

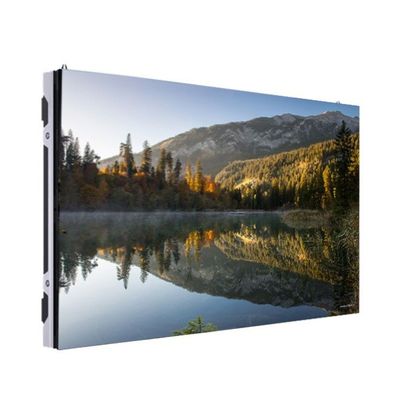

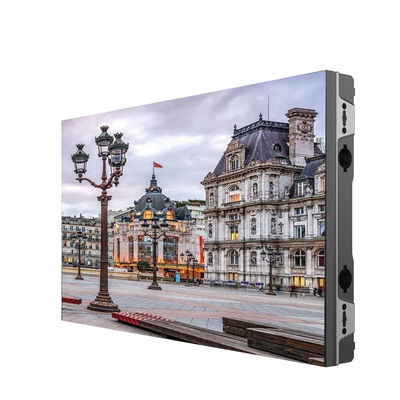

P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum For Showing
P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum For Showing
Brand Name
Visual World
Product Model
P0.9
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:
COB Die-casting Aluminum LED Display
,P0.9 Small Pixel Pitch LED Display
,Showing LED Display
Product Name:
P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum For Showing
Pixel Pitch:
P0.7/P0.9/P1.25/P1.56
Cabinet Material:
Die-casting Aliuminum
Size:
600x337.5mm
Maintenance:
Front/Rear Service
Brightness:
600-800nits
Refresh Rate:
＞3840Hz
Durability:
100000 Hours
Product Description
Detailed Specifications And Features
P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum For Showing
The P0.9 Small Pixel Pitch LED Display COB from VISUAL WORLD is a state-of-the-art display solution that elevates high-definition visuals. With a pixel pitch of just 0.9mm, it guarantees sharp and detailed images, making it perfect for applications that require exceptional visual precision and clarity.
Designed in a compact 600x337.5mm module size, this COB LED display offers flexibility and straightforward installation. Its die-cast aluminum cabinet not only contributes to a sleek, modern look but also ensures the display's durability and lightweight design.
Key Features
- Full flip-chip COB process with comprehensive protection including anti-collision, waterproof, moisture-proof, and salt spray resistance
- Module utilizes 3D ink printing technology, increasing contrast by 20% and reducing brightness requirements
- Integrated LCD status display panel for real-time monitoring of cabinet operation status
- HDI multi-layer circuit board design ensures excellent color uniformity and even temperature distribution
- Energy-saving common cathode chip technology with 16-bit grayscale capability for superior performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type | 1/36 |
| Maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m² |
| IP Rating | Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type | Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°; V:170° |
| Operational Temperature | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications
- Digital Signage Systems
- Home Cinema & Theater Installations
- Street Furniture Integration
- Billboard Advertising
- Football Stadium Displays
- Perimeter LED Posters
- Arena Display Systems
Packing and Shipping Information
Packing: Anti-shaking wooden cabinet / Air flight case / Strong carton
Shipping Port: Shenzhen, China
Shipping Methods: Air; Express; Ocean; Land Transportation
Delivery Time: 10-15 working days after confirming receipt of advance payment
Frequently Asked Questions
Q1. How to choose the best pixel pitch?
Choose the suitable pixel model according to the closest viewing distance - the smaller the value, the clearer the display!
Q2. How to install and debug?
We provide detailed installation drawings and structural specifications. Our engineers offer remote video debugging assistance and comprehensive training on system operation.
Q3. What's the warranty?
2-year comprehensive warranty! We prepare sufficient spare parts to ensure timely replacement without affecting your display operations.
Q4. What's the minimum quantity?
Samples are available! Quantity requirements are negotiable based on your project needs.
Q5. How to place an order?
Provide your email address, detailed shipping address, and phone number - we'll generate a secure payment link for your convenience.
