P6.67 Outdoor LED Display Waterproof IP65 5500 nits Advertising Billboard
P6.67 Outdoor LED Display Waterproof IP65 5500 nits Advertising Billboard
Brand Name
VW
Product Model
P6.67
Certificate
CE, ROHS, EMC
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T, L/C
Supply Capacity
2000sqm/month
Product Details
Highlight:
5500 nits Outdoor LED Display
,P6.67 Outdoor LED Display
,IP65 Outdoor LED Display
Product Name:
P6.67 Outdoor LED Display Waterproof IP65 5500 Nits Advertising Billboard
LED Type:
SMD3535
Cabinet Dimension:
960x960mm
Chip Color:
RGB Full Color
Pixel Density:
28224 Dots/sqm
Maintenance:
Rear Service
Cabinet Weight:
38 Kg
Application:
Outdoor Wall Mounting Advertising Video Wall
Module Connection:
Locks
Brightness:
5500 Nits
Product Description
Detailed Specifications And Features

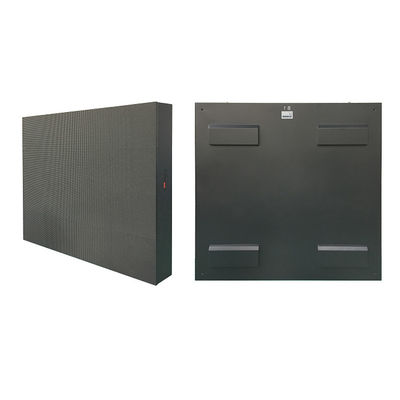

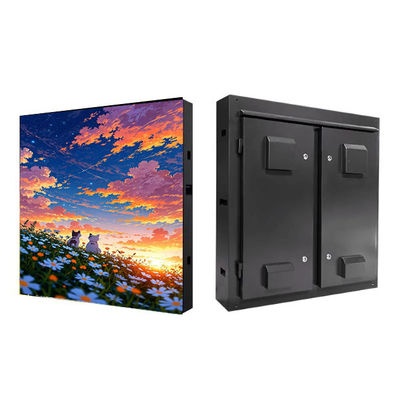

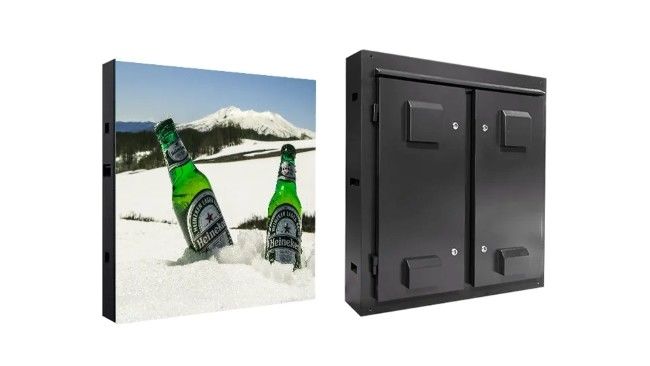

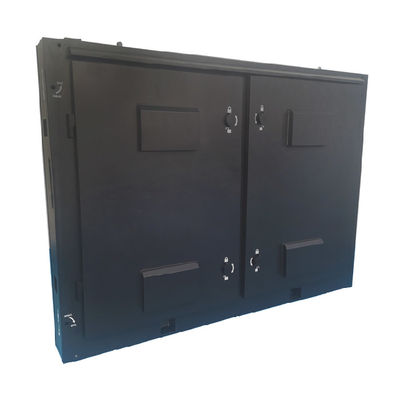

P6.67 Outdoor LED Display Waterproof IP65 5500 nits Advertising Billboard
Product Description:
Fixed led display screen refers to the led display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation led displays.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with ip65 protection level for outdoor using.
- Front service:The cabinet and module have compatible front locks design which allows technicians to do front maintenance effortless.
- High brightness:Customized module pcb and designated power supply make it up to 6000nits brightness.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation:Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters:
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
Outdoor creative modeling
Building entrance
Park entrance
Swimming pool
Advertising billboard
Playing field
Outdoor activity area
Roadside poster
Building exterior wall
Accessories:
- Novastar video processor
- Power supply
- Receiving card
- Main signal cable
- Main power cable
- Metal connector
- Screws
- Module power cable
- Module safety rope
- Flat cable
- module mask
- module shell
- Front service suction tool
- Waterproof rubber ring
- Waterproof signal connector
- Waterproof power connector
- Light sensor
Maintenance tools
- Front service suction tool
- Heat gun
- Soldering station
- Soldering paste
- Tin wire
- Glue
- Tweezers
- Magnifier
- Multimeter
- Brightness meter
FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/0DM manufacturer which has specialized in led display industry for 10 years. All customers are welcome to visit our factory, please contact us in advance if necessary!
Q2:What if I don't know how to choose and match LED screens?
A2:Before purchasing the LED display, you can rest assured that you can contact our salesman, tell us the location you need to install (indoor/outdoor), the size of the LED screen and the main purpose of the information, we have professional staff to customise the scheme and quote for you. And we can provide you with a one-stop customised solution, no need to worry about other configuration issues!
Q3:What is your MOQ?
A3:We support to take samples and any quantity order, at present the wholesale order is more, if you have any need, contact our salesman, the quantity order will provide you the most favourable price!
Q4:Do you provlde any free spare parts in each order?
A4:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable,LED lamp,lC,mask, power supply, receiving card, etc.
Q5:What about your quality?
A5:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
A5:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
