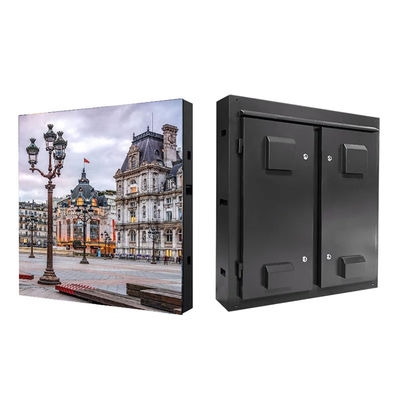

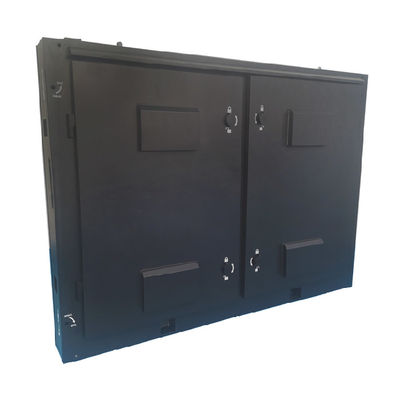

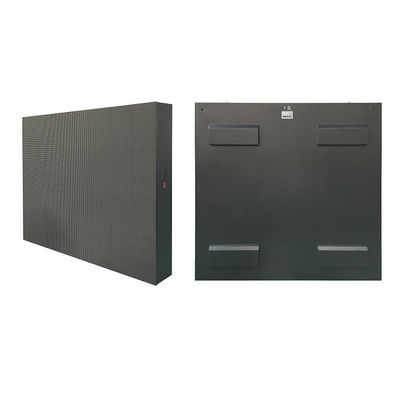

P6.67 Outdoor LED Display 5500 nits Rear Service 5500 nits Waterproof IP65
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor LED Display 5500 Nits Rear Service 5500 Nits Waterproof IP65 | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
Product Description
P6.67 Outdoor LED Display 5500 nits Rear Service 5500 nits Waterproof IP65
Product Description:
Fixed led display screen refers to the led display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation led displays.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with ip65 protection level for outdoor using.
- Front service:The cabinet and module have compatible front locks design which allows technicians to do front maintenance effortless.
- High brightness:Customized module pcb and designated power supply make it up to 6000nits brightness.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation:Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters:
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
Outdoor creative modeling
Building entrance
Park entrance
Swimming pool
Advertising billboard
Playing field
Outdoor activity area
Roadside poster
Building exterior wall
Accessories:
- Novastar video processor
- Power supply
- Receiving card
- Main signal cable
- Main power cable
- Metal connector
- Screws
- Module power cable
- Module safety rope
- Flat cable
- module mask
- module shell
- Front service suction tool
- Waterproof rubber ring
- Waterproof signal connector
- Waterproof power connector
- Light sensor
Maintenance tools
- Front service suction tool
- Heat gun
- Soldering station
- Soldering paste
- Tin wire
- Glue
- Tweezers
- Magnifier
- Multimeter
- Brightness meter
FAQ
Q1. How about your delivery time?
A1: Cenerally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2. Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your sample policy?
A3: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test for 72hrs before delivery.
Q5: How do you make our business long-term and good relationship?
A5: First. We keep good quality and competitive price to ensure our customers benefit ;
Second. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come.
