P4 Smart Outdoor LED Display Module IP65 320x320mm Front Service For Shopping Mall
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P4 Smart Outdoor LED Display Module IP65 320x320mm Front Service For Shopping Mall | Pixel Pitch: | 2.85mm,4mm, 6.67mm |
|---|---|---|---|
| IP Level:: | IP67 | Module Size: | 320x320x37mm |
| Maintenance: | Front Service | Cabinet Material: | Die-casting Aluminum |
| Cabinet Weight: | 15kg/sqm | Brightness: | 5000nits |
Product Description
P4 Smart Outdoor LED Display Module IP65 320x320mm Front Service For Shopping Mall
Product Description:

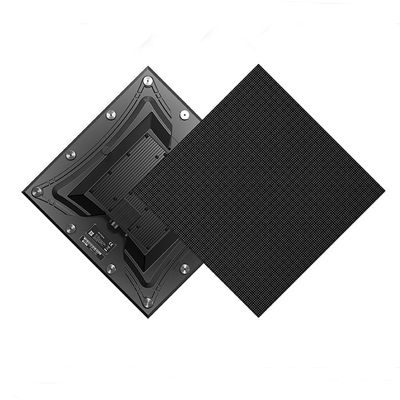

The 320x320mm Smart LED Module boasts a modular design, offering flexible and scalable display solutions. Its lightweight construction and high protection level ensure easy rigging and long-lasting durability. With an IP67 protection rating, the module is fully waterproof and anti-salt, making it perfect for challenging environments. Designed for user convenience, it allows for effortless assembly, installation, and maintenance. Additionally, its integrated signal and power cabling streamline setup, delivering a seamless and efficient user experience.
Technical Parameters:
| Product Model: | P2.85 | P4 | P6.67 |
| Pixel Pitch: | 2.85 mm | 4 mm | 6.67 mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 |
| Cabinet Dimension: | 320×320x37 mm | 320×320x37 mm | 320×320x37 mm |
| Module Size: | 320x320 mm | 320x320 mm | 320x320 mm |
| Cabinet Weight: | 15 kg | 15 kg | 15 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | 1/16 | 1/16 | 1/6 |
| Brightness: | >4500 nits | >5000 nits | >5000 nits |
| Max/Avg Power: | 800/200 W/m2 | 800/200 W/m2 | 800/200 W/m2 |
| Maintenance: | Front service | Front service | Front service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:160° | H:140°；V:160° | H:140°；V:160° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Features:
- LIGHTWEIGHT
Die-casting aluminum material, only 15kg/sqm, saving shipping costs.
- INTEGRATED DESIGN
Integrate power supply, receiving card, and module into one cabinet.
- Waterproof IP67
- 45° BEVELEDGE DESIGN
45° Beveledge design, various shapes splicing
Installation Method
Wall mounted
Cabinet type
Floor standing
Arc-shaped installation
Hoisting
Application:
- Shopping Mall:
LED screens can display mall directories, store locations, and ongoing promotions, helping shoppers easily navigate and find their preferred stores or amenities.
- Park Entrance:
LED screens can greet visitors with welcome messages, provide park maps, highlight key attractions, and display event schedules, offering a quick overview of the park’s layout and activities.
- Gallery and Exhibition:
LED screens can bring exhibitions to life by showcasing digital art, videos, or high-resolution images, seamlessly blending modern technology with traditional displays for a captivating experience.
- Outlets Storefront:
LED screens can showcase real-time deals, flash sales, and new product arrivals, attracting customers and driving increased foot traffic and sales.
- Arc Video Wall:
The curved, high-definition LED design creates a visually immersive experience, ensuring maximum viewer engagement and attention.
After-sale Service:
- 24-hour complaint response.
- 48-hour maintenance solutions.
- 24-month warranty.
- Free technician training.
- Documents: installation guide, software manual, maintenance guide, & control system software CD.
FAQ:
Q1. How about your delivery time?
A1: Cenerally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2. Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your sample policy?
A3: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test for 72hrs before delivery.
Q5: How do you make our business long-term and good relationship?
A5: First. We keep good quality and competitive price to ensure our customers benefit ;
Second. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come.
